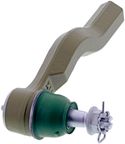

Mevotech TXMS506159 Steering Tie Rod End - Front Right Outer

Heavy-Duty Steering Tie Rod End

The Mevotech TTX TXMS506159 steering tie rod end is built for demanding steering service on select Chevrolet Colorado and GMC Canyon applications. It is engineered for front right outer use and includes service-friendly features such as a pre-greased design, grease fitting, dust boot, castle nut, cotter pin, and mounting hardware.

For drivers and fleets that need a durable steering tie rod end for 2023-2025 Chevrolet Colorado and 2023-2025 GMC Canyon front right outer service, this part is built around strength, wear resistance, and easier installation.

Key Features

• Mevotech TTX part number TXMS506159
• Fits front right outer steering applications on select Chevrolet Colorado and GMC Canyon models
• Pre-greased and greaseable for serviceability
• Sintered metal bearing material for demanding steering loads
• Neoprene dust boot with green boot color
• Threaded stud design with M14-1.5 thread size on both ends
• Castle nut, cotter pin, grease fitting, dust boot, and mounting hardware included
• Non-adjustable design

Detailed Description

Mevotech TTX TXMS506159 is a steering tie rod end engineered for high-usage passenger vehicles, SUVs, fleets, and working trucks. The design uses a sintered metal bearing material, a threaded stud, and a neoprene dust boot to support steering joint durability in demanding service conditions. The unit is pre-greased and greaseable, giving technicians a serviceable steering component that can be maintained after installation. This part cross-references Monroe Shocks & Struts 172286 for the same application.

Compatible With 2023-2025 Chevrolet Colorado, front right outer, and 2023-2025 GMC Canyon, front right outer. If you are replacing a worn outer tie rod end on a Chevrolet Colorado or GMC Canyon, TXMS506159 provides a direct-fit steering service part for the specified position. The part number TXMS506159 is also referenced as Mevotech TTX TXMS506159.

Common Problems This Part Can Address

• Steering play or looseness at the front right outer tie rod end
• Uneven tire wear caused by worn steering linkage components
• Clunking or knocking from the front suspension and steering area
• Loose steering response during lane changes or low-speed turns
• Boot damage that can expose the joint to contamination

Installation Notes and Tips

Verify vehicle fitment by year, make, model, and position before installation. This part is specified for the front right outer location on 2023-2025 Chevrolet Colorado and 2023-2025 GMC Canyon applications. Inspect the mating steering components, threads, and alignment settings during replacement, and follow the vehicle service procedure for torque and cotter pin installation. Because the unit is greaseable, service the fitting after installation according to the maintenance schedule.

Quality Assurance

Mevotech TTX parts are engineered for demanding commercial and passenger vehicle use, with a focus on durability and serviceability in steering applications. TXMS506159 is built with included service hardware and a greaseable design to support long-term maintenance on the specified Chevrolet Colorado and GMC Canyon front right outer fitments.
