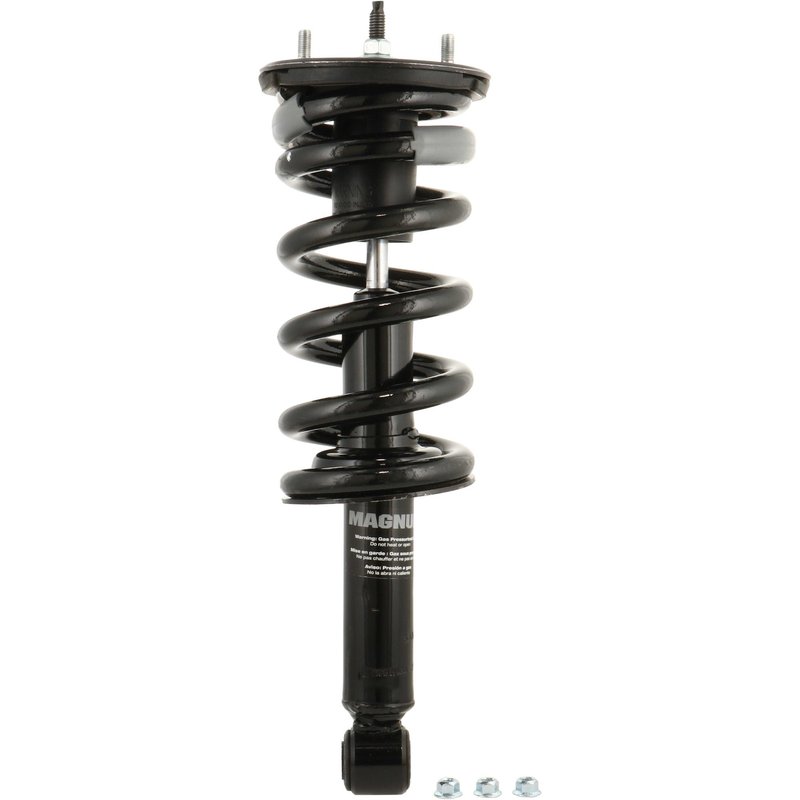

Monroe 153004 Suspension Strut and Coil Spring Assembly - Front

Monroe Magnum Loaded Strut Assembly

The Monroe Magnum Loaded Assembly Complete Strut Assembly, part number 153004, is built for front suspension service on select Nissan NV vans. It combines an application-specific strut design with a variable rate coil spring to handle the demands of high-mileage, heavy-load, and frequent stop-and-go use.

Compatible with 2012-2021 Nissan NV1500, front; 2012-2021 Nissan NV2500, front; and 2012-2021 Nissan NV3500, front, this complete strut assembly supports direct replacement service for fleet and work-van suspension maintenance.

Key Features

• Complete front suspension strut and coil spring assembly
• Application-specific Monroe Magnum design
• Variable rate coil spring for load and ride control
• Gas charged strut construction
• Premium grade type
• Includes coil spring, strut mount insulator(s), coil spring insulator(s), and mounting hardware
• Compressed length: 13.76 in. (349.4 mm)
• Extended length: 18.2 in. (470.7 mm)
• Travel length: 4.22 in. (107.3 mm)
• Body length: 13.37 in. (339.7 mm)

Product Details

Monroe’s Magnum Loaded Assembly line is aimed at vehicles that see regular work-duty use, where suspension performance and durability matter over long service intervals. This 153004 assembly is engineered as a front strut and coil spring unit for Nissan NV1500, Nissan NV2500, and Nissan NV3500 models, helping restore ride height, damping response, and front-end control in one service part. This part cross-references Monroe Shocks & Struts (e.g., 153004) for the same application.

What It Helps Address

• Front-end sag from worn coil springs
• Noisy or loose strut mount components
• Reduced damping control over rough roads
• Uneven ride quality in high-mileage work vans
• Time-consuming separate strut and spring replacement

Installation Notes

Install on the front suspension only and verify vehicle application before service. Because this is a complete strut and coil spring assembly, it is suited to replacement work where the original spring and strut components are being serviced together. Always follow factory torque specifications and alignment procedures after installation.

Quality Assurance

Monroe identifies this Magnum Loaded Assembly as a premium-grade, gas-charged suspension component with an application-specific design for demanding vehicle use. Part number 153004 is built for the listed Nissan NV applications and is supported by Monroe’s product engineering for work-vehicle suspension service.
