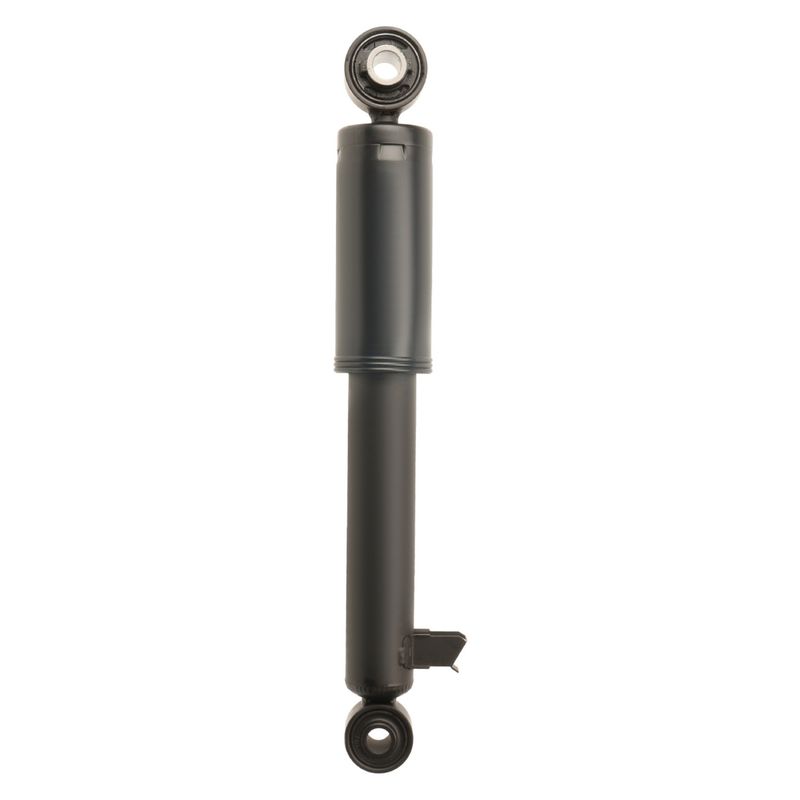

Monroe 210340 Suspension Shock Absorber - Rear
| Brand | Monroe 210340 |
|---|---|
| Position | Rear |
| 10526 | Progressive |
| 10527 | No |
| 10528 | No |
| 10529 | No |
| 10530 | Passive |
| 10531 | Painted |
| Compressed Length | 11.66 |
| Compressed Length | 296.2 |
| Travel Length | 134.6 |
| Travel Length | 5.3 |
| Body Color | Black |
| Color | Black |
| Finish | Painted |
| Cylinder Material | Steel |
| Type | Telescopic |
| Mounting Hardware Included | No |
| Cylinder Outside Diameter | 1.75 |
| Cylinder Outside Diameter | 44.5 |
| Grade Type | Premium |
| Extended Length | 431 |
| Shock Stroke | 134.6 |
| Shock Stroke | 5.3 |
| Shock Absorber Rod End Measuring Point | Center of loop |
| Shock Absorber Body End Measuring Point | Center of loop |
| Lower Mount Type | Loop (eyelet) bushing and sleeve |
| Upper Mount Type | Loop (eyelet) bushing and sleeve |
| Boot Included | Yes |
| Gas Charged | Yes |
| Body Diameter | 1.75 |
| Body Diameter | 44.5 |
| Product line | Restore |
| Fits | Hyundai and Kia · 14 vehicles |
Progressive valving. Delivers controlled damping response for steadier ride quality.
Gas-charged design. Helps maintain consistent performance under normal driving conditions.
Loop-to-loop mounts. Uses eyelet bushings and sleeves at both ends for service replacement.
Cross-references Focus Auto Parts 342919, KYB 344664 and Monroe Shocks & Struts 37379 for the same application. See all 18.
Overview
Monroe Restore shock absorber 210340 is a rear suspension replacement built for consistent handling and control while reducing noise, vibration, and harshness. It is a telescopic, gas-charged shock with loop-to-loop mounting and a painted steel body.
Key Features
- Progressive valving for controlled damping response.
- Gas-charged design for stable performance.
- Steel body with painted black finish.
- Boot and dust shield included for added protection.
- Loop (eyelet) bushing and sleeve mounts at both ends.
- Premium-grade construction from Monroe Restore.
Detailed Description
The Monroe Restore line focuses on replacement shocks that balance ride control with comfort. Part number 210340 uses a passive telescopic design with a 1.75-inch steel cylinder, progressive valving, and non-adjustable damping for straightforward service replacement. Its rear application coverage includes Fits 2013-2018 Hyundai Santa Fe, rear; Fits 2013-2018 Hyundai Santa Fe Sport, rear; and Fits 2014-2015 Kia Sorento, rear. This part cross-references Monroe Shocks & Struts (e.g., 37379) for the same application.
What It Helps Address
- Excessive bounce or weak damping at the rear suspension.
- Noise and vibration from worn shock absorber internals.
- Reduced control over body motion during normal driving.
- Uneven ride quality caused by aging suspension components.
Installation Notes
Verify loop-style upper and lower mounts, compressed length, and extended length before installation. This shock absorber does not include mounting hardware, and it is not air adjustable or remote reservoir equipped. Confirm rear fitment by vehicle application and suspension configuration before service.
Quality Assurance
Monroe Restore shock absorbers are engineered for dependable replacement performance and are offered across domestic and import passenger cars, light trucks, and SUVs. Part number 210340 is a new component built to Monroe specifications.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2018 | Hyundai | Santa Fe | AWD | Rear | Restore |
| 2018 | Hyundai | Santa Fe Sport | AWD | Rear | Restore |
| 2017 | Hyundai | Santa Fe | AWD | Rear | Restore |
| 2017 | Hyundai | Santa Fe Sport | AWD | Rear | Restore |
| 2016 | Hyundai | Santa Fe | AWD | Rear | Restore |
| 2016 | Hyundai | Santa Fe Sport | AWD | Rear | Restore |
| 2015 | Hyundai | Santa Fe | AWD | Rear | Restore |
| 2015 | Hyundai | Santa Fe Sport | AWD | Rear | Restore |
| 2015 | Kia | Sorento | AWD | Rear | Restore |
| 2014 | Hyundai | Santa Fe | AWD | Rear | Restore |
| 2014 | Hyundai | Santa Fe Sport | AWD | Rear | Restore |
| 2014 | Kia | Sorento | AWD | Rear | Restore |
| 2013 | Hyundai | Santa Fe | AWD | Rear | Restore |
| 2013 | Hyundai | Santa Fe Sport | AWD | Rear | Restore |
