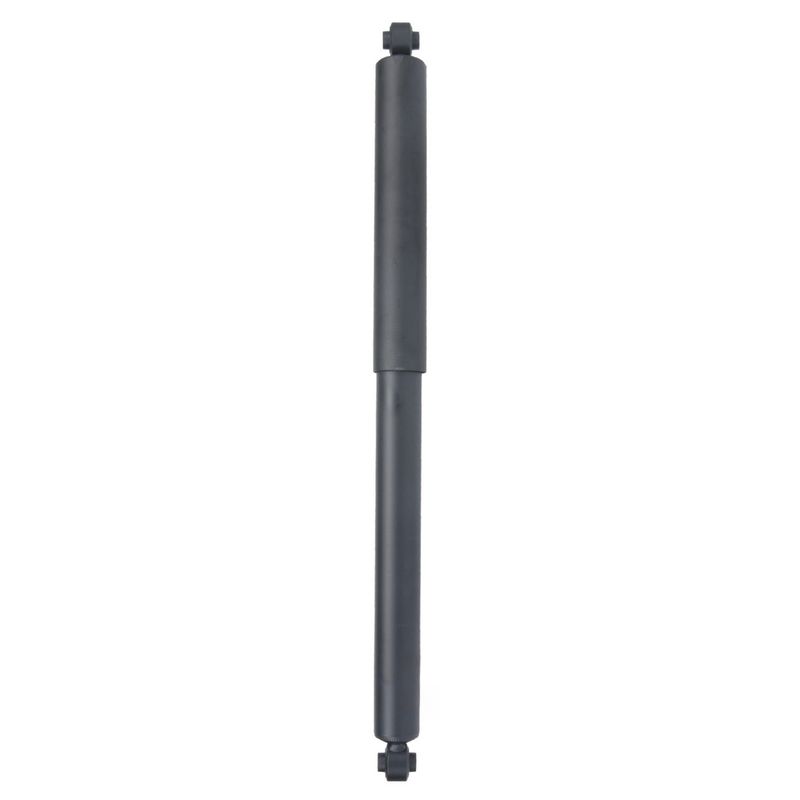

Monroe 210466 Suspension Shock Absorber - Rear
| Brand | Monroe 210466 |
|---|---|
| Position | Rear |
| 10526 | Progressive |
| 10527 | No |
| 10528 | No |
| 10529 | No |
| 10530 | Passive |
| 10531 | Painted |
| Compressed Length | 16.73 |
| Compressed Length | 424.9 |
| Travel Length | 11.97 |
| Travel Length | 304 |
| Body Color | Black |
| Color | Black |
| Finish | Painted |
| Cylinder Material | Steel |
| Type | Telescopic |
| Mounting Hardware Included | No |
| Cylinder Outside Diameter | 1.77 |
| Cylinder Outside Diameter | 45 |
| Grade Type | Premium |
| Extended Length | 729 |
| Shock Stroke | 11.97 |
| Shock Stroke | 304 |
| Shock Absorber Rod End Measuring Point | Center of loop |
| Shock Absorber Body End Measuring Point | Center of loop |
| Lower Mount Type | Loop (eyelet) bushing and sleeve |
| Upper Mount Type | Loop (eyelet) bushing and sleeve |
| Boot Included | No |
| Gas Charged | Yes |
| Body Diameter | 1.77 |
| Body Diameter | 45 |
| Product line | Restore |
| Fits | Ford · 1 vehicle |
OE-style replacement. Telescopic shock absorber with loop-to-loop mounting for direct suspension service.
Controlled ride response. Progressive valving and gas-charged construction help maintain steady damping.
Protected steel body. Painted black finish and metal dust shield add durability in service.
Cross-references Focus Auto Parts 342789, KYB 349108 and Monroe Shocks & Struts 911332 for the same application. See all 15.
Overview
Monroe Restore shock absorber 210466 is a new telescopic suspension shock absorber built for consistent handling and control while reducing noise, vibration, and harshness. It is a direct fit for the rear suspension on the 2014 Ford F-150 and uses loop-to-loop mounting for a straightforward replacement.
Key Features
- Progressive valving for controlled damping response.
- Gas-charged design for stable performance.
- Steel body with painted black finish.
- Metal dust shield included for added protection.
- Loop (eyelet) bushing and sleeve mounts at both ends.
Detailed Description
The Monroe Restore line focuses on restoring predictable ride control with a premium-grade shock absorber design. Part number 210466 uses a telescopic, passive construction with a steel cylinder, black painted finish, and non-adjustable damping. Its 11.97-inch stroke and gas-charged layout support consistent suspension movement, while the loop-to-loop mounting style matches the rear application on the 2014 Ford F-150. This Monroe shock absorber 210466 is also cross-referenced to Monroe Shocks & Struts 911332 for the same application.
What It Helps Address
- Excessive bouncing after bumps or dips.
- Loose or unsettled rear suspension feel.
- Noise and vibration from worn shock components.
- Reduced control during normal road use.
- Uneven damping response from aging shocks.
Installation Notes
Fits 2014 Ford F-150, rear. Verify loop-style upper and lower mounts, compressed length, and extended length before installation. Mounting hardware is not stated as included, so confirm reuse or separate sourcing as needed. Part number 210466 should be matched to the vehicle application and suspension configuration before replacement.
Quality Assurance
Monroe Restore shock absorbers are engineered for consistent performance and are offered as new replacement components for domestic and import passenger vehicles, light trucks, and SUVs.
| Year | Make | Model | Submodel | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2014 | Ford | F-150 | FX4 | 4WD | Rear | Restore |
