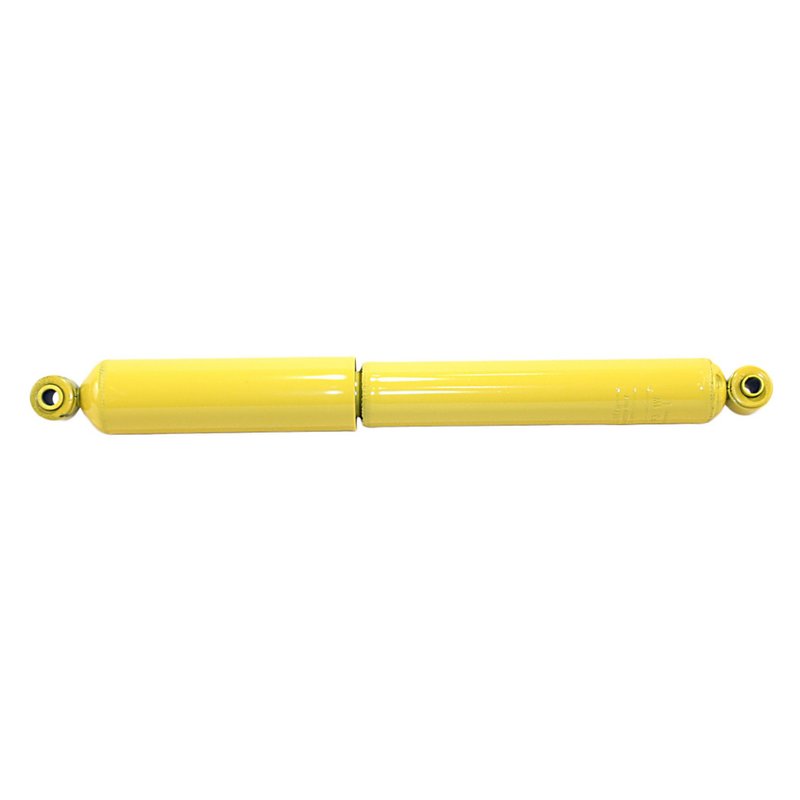

Monroe 34910 Shock Absorber - Front Inner or Rear

Monroe Gas-Magnum Shock Absorber Overview

The Monroe Gas-Magnum Shock Absorber part number 34910 is engineered to provide reliable suspension performance for a range of Chevrolet, Dodge, GMC, and Plymouth trucks and SUVs. Designed with durable metal dust shields and precise mounting specifications, this shock absorber helps maintain vehicle stability and control under various driving conditions.

• Compressed length: 13 inches
• Travel length: 7.875 inches
• Extended length: 20.875 inches
• Metal dust shield included for enhanced protection
• Loop bushing and sleeve mounts with 1/2" sleeve ID
• Compatible with multiple Chevrolet, Dodge, GMC, and Plymouth models

Features of the Gas-Magnum Shock Absorber

The Monroe Gas-Magnum Shock Absorber line is designed to deliver consistent damping performance using pressurized nitrogen gas technology. This helps reduce shock fade and improves handling response. The 34910 model features a metal dust shield that protects the piston rod from dirt and debris, extending the service life of the shock. Both upper and lower mounts use loop bushings with sleeves, ensuring a secure fit and reducing noise and vibration.

Technical Specifications and Compatibility

This shock absorber has a compressed length of 13 inches and an extended length of 20.875 inches, with a travel length of 7.875 inches. It does not include bumper stops or hydraulic lockout features. The mounting codes for both upper and lower ends are LS39, with loop bushing and sleeve mounts sized at 1/2" sleeve ID by 1.5/8" sleeve overall length on the lower mount and 41.28mm sleeve overall length on the upper mount. This part is compatible with Chevrolet models such as Blazer, K5 Blazer, K10, K20, and various Suburban versions; Dodge Ram 1500, 2500, and 3500 Vans; GMC Jimmy and Sierra models; and Plymouth trucks including B100 through B350 series.

Common Suspension Issues Addressed

• Improves vehicle stability and control on rough or uneven roads
• Reduces excessive bouncing and body roll during cornering
• Minimizes wear on tires caused by poor shock absorption
• Restores proper suspension travel and ride height
• Protects suspension components from dirt and debris with metal dust shield

Installation Notes and Tips

• Ensure vehicle is securely lifted and supported before removal
• Verify mounting codes LS39 match vehicle specifications
• Inspect bushings and sleeves for wear and replace if necessary
• Use proper torque specifications for loop bushing mounts
• Check alignment after installation to maintain handling performance

Quality Assurance and Warranty

Monroe Gas-Magnum Shock Absorbers are manufactured to meet or exceed OEM standards for durability and performance. The 34910 shock absorber undergoes rigorous testing to ensure consistent damping and long service life. While specific warranty details may vary, Monroe typically offers coverage against defects in materials and workmanship. Consult product documentation or manufacturer resources for exact warranty terms.
