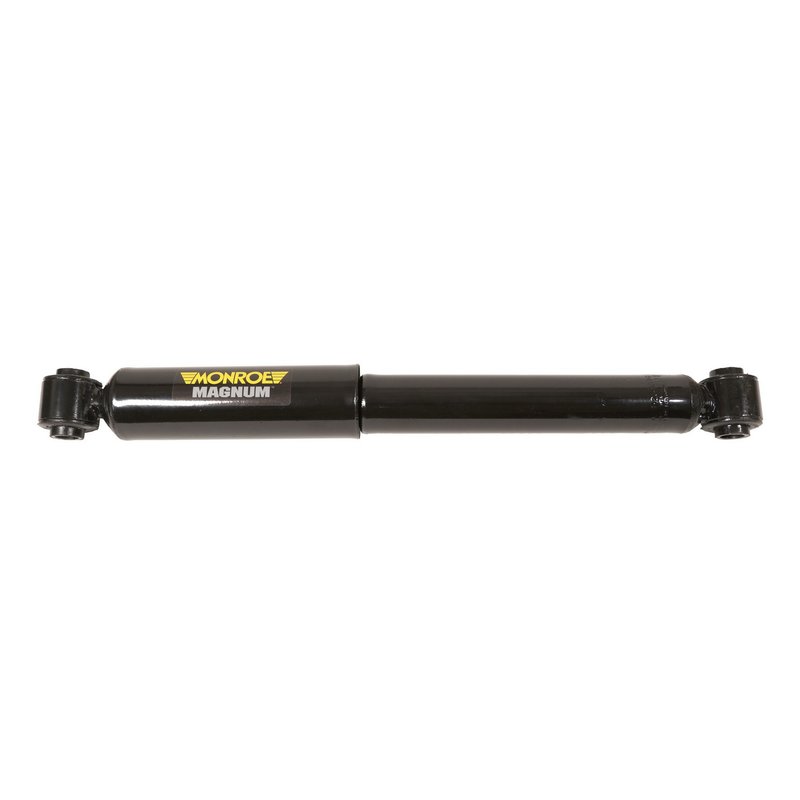

Monroe 555047 Suspension Shock Absorber - Front

Monroe Magnum RV Shock Absorber 555047

The Monroe Magnum RV Shock Absorber 555047 is a premium passive suspension shock absorber built for recreational vehicles that need more controlled damping on the road. Its gas charge and full displaced valving help reduce bounce, wander, and trailer-induced surge for a steadier ride.

For RV owners searching for Monroe Magnum RV shock absorber 555047, this unit is built around long-travel suspension control and consistent response. It is also a practical choice for Monroe Shocks & Struts 555047 replacement needs on supported applications.

Key Features

• Gas-charged design for improved suspension control
• Full displaced valving to manage rebound and compression response
• Premium grade construction
• Passive shock absorber design
• Extended hydraulic lockout included
• Dust shield included for added protection
• Loop bushing and sleeve upper and lower mounts
• Body diameter: 2 in. (50.8 mm)
• Compressed length: 14.49 in. (368 mm)
• Extended length: 22.28 in. (565.9 mm)
• Travel length: 8.28 in. (210.3 mm)

Detailed Description

Monroe Magnum RV shocks are engineered for larger recreational vehicles that need stable damping over uneven pavement, expansion joints, and highway undulations. The gas charge helps maintain consistent shock response, while the full displaced valving works to reduce excess body motion that can contribute to bounce and wander. The extended hydraulic lockout adds another layer of control at full extension, and the included dust shield helps protect the shaft area from road debris.

This Monroe Magnum RV Shock Absorber 555047 uses loop bushing and sleeve mounts at both ends, with LS86 upper and lower mount codes. It measures 22.28 inches extended and 14.49 inches compressed, making it important to verify suspension travel and mount style before ordering. For buyers comparing Monroe Magnum RV shock absorber 555047 options, these dimensions and mount details are key fitment checks.

This part cross-references Monroe Shocks & Struts (e.g., 316476, 1013976000) for the same application.

What It Helps Address

• Excessive bounce after bumps or dips
• Steering wander on RV highway travel
• Trailer motion feedback transferred to the tow vehicle
• Unstable ride feel over uneven road surfaces
• Suspension control loss from worn shock absorbers

Installation Notes and Tips

Confirm upper and lower loop mount style, sleeve dimensions, and shock length before installation. Compare the compressed and extended measurements to the vehicle’s suspension travel to avoid topping out or bottoming out. Because mounting hardware is not listed as included, verify whether existing hardware can be reused or whether replacement components are needed for your application.

Compatible With selected RV and tow-vehicle suspension applications that use Monroe Magnum RV shock absorber 555047 specifications. For fitment-based searches, verify year, make, model, and position against the vehicle catalog before installation.

Quality Assurance

Monroe’s Magnum RV line is built around controlled damping for recreational vehicle use, with gas-charged construction, premium-grade materials, and valving tuned to reduce unwanted motion. Part number 555047 is manufactured to Monroe specifications for supported applications.
