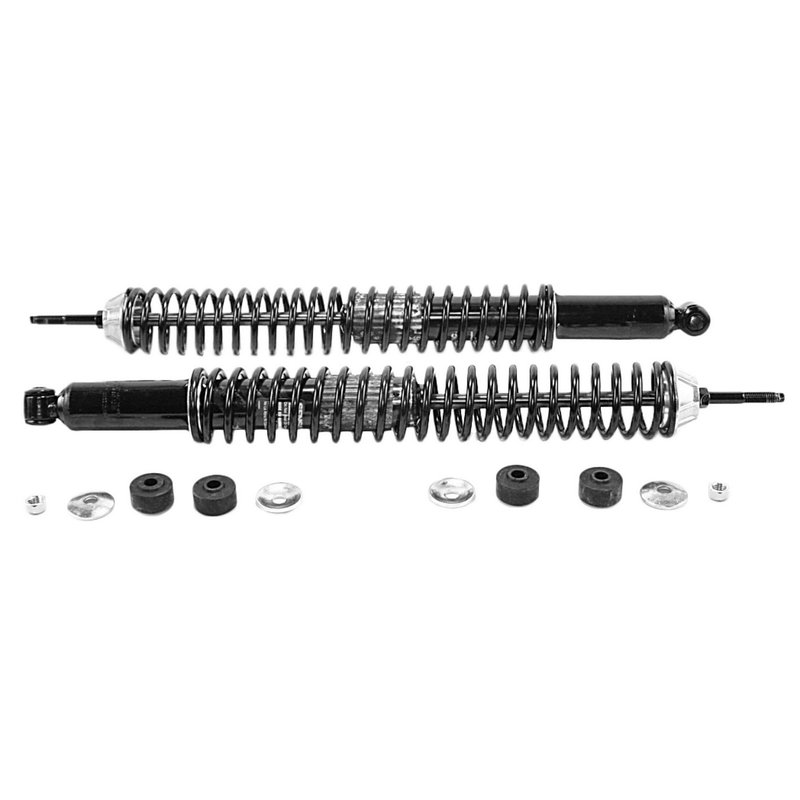

Monroe 58629 Shock Absorber and Coil Spring Assembly - Rear

Monroe Load Adjusting Shock Absorber 58629 Overview

The Monroe Load Adjusting Shock Absorber part number 58629 is engineered for Ford F-150 and F-150 Heritage models. Designed to provide consistent ride quality and handling, this suspension shock absorber and coil spring assembly is built to meet specific vehicle requirements.

• Compressed length: 16 inches
• Extended length: 26.375 inches
• Travel length: 10.375 inches
• Includes metal dust shield for enhanced protection
• Upper mount: Stem mount with 2.5/8 inch stem length and 1/2-13 thread pitch
• Lower mount: Loop bushing and sleeve mount with 12mm sleeve ID and 1.5 inch sleeve OAL
• Extended bumper stop included; no compressed bumper stop
• Parts pack included (P01167)

Load Adjusting Shock Absorber Product Line Details

The Monroe Load Adjusting Shock Absorber line is designed to adapt to varying load conditions, maintaining vehicle stability and control. This product line focuses on delivering consistent damping performance for trucks like the Ford F-150, ensuring the suspension adjusts effectively under different payloads and driving scenarios.

Detailed Product Description

This Monroe suspension shock absorber and coil spring assembly (part number 58629) features a compressed length of 16 inches and an extended length of 26.375 inches, providing a travel length of 10.375 inches. The metal dust shield protects internal components from debris and corrosion, extending the service life of the shock absorber. The upper stem mount with a 2.5/8 inch stem length and 1/2-13 thread pitch ensures secure attachment, while the lower loop bushing and sleeve mount with a 12mm sleeve ID and 1.5 inch sleeve overall length offers reliable support and alignment. The extended bumper stop helps prevent damage during full extension, although there is no compressed bumper stop included.

Applications and Problem Solving

• Improves ride stability and handling for Ford F-150 and F-150 Heritage trucks
• Reduces suspension wear caused by varying load conditions
• Minimizes noise and vibration from worn or damaged shocks
• Prevents premature suspension component failure due to inadequate damping
• Enhances vehicle control during towing or heavy payload transport

Installation Notes and Tips

• Verify compatibility with Ford F-150 or F-150 Heritage before installation
• Ensure proper torque specifications for upper stem mount and lower loop bushing
• Inspect mounting hardware and replace if worn or damaged
• Use the included parts pack (P01167) for a complete installation
• Check dust shield condition during installation to maintain protection

Quality Assurance and Warranty

Monroe Load Adjusting Shock Absorber part number 58629 is manufactured to meet OEM standards for fit, form, and function. The metal dust shield and robust mounting design contribute to durability and long service life. Warranty coverage details should be confirmed with the manufacturer or authorized distributor.
