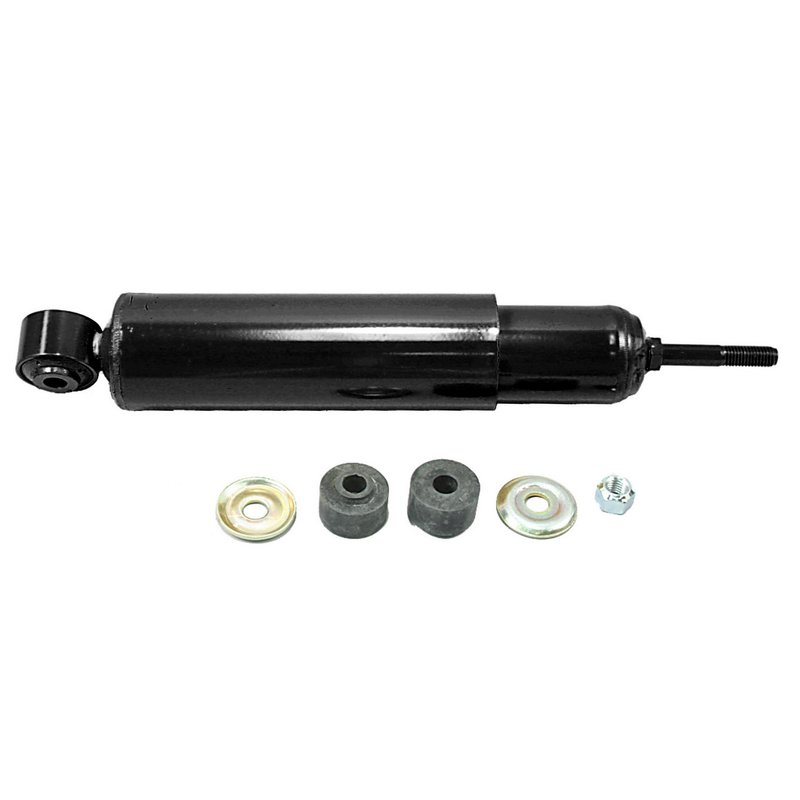

Monroe 74432 Suspension Shock Absorber - Rear

Monroe Magnum Shock Absorber 74432

The Monroe Magnum Shock Absorber 74432 is built for transit bus suspension systems that need firm damping and stable control. It is engineered to meet or exceed demanding OE manufacturer specifications and is designed for applications that call for consistent ride control and driver comfort.

Key Features

• Monroe Magnum Shock Absorber line for heavy-duty transit bus use
• Firm, controlled ride characteristics for improved stability
• Extended hydraulic lockout for added control at full extension
• Metal dust shield helps protect the shaft area from road debris
• Lower mount: stem mount with 3.5/16" stem length x 5/8"-11 thread pitch
• Upper mount: loop bushing and sleeve mount with 5/8" sleeve ID x 1.7/8" sleeve OAL
• Compressed length: 16.625 in; extended length: 26.375 in; travel length: 9.75 in

Product Details

Monroe Magnum shocks are built for demanding commercial suspension service where predictable damping matters. Part number 74432 uses a stem lower mount and loop bushing upper mount, along with a metal dust shield and extended hydraulic lockout to support controlled suspension movement. This Monroe 74432 shock absorber is a direct-fit style suspension shock absorber for transit bus applications that require OE-level dimensional and performance alignment.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Issues This Part Addresses

• Excessive body motion over uneven pavement
• Reduced ride stability in transit bus suspension systems
• Harsh or uncontrolled rebound at full suspension extension
• Wear from road debris exposure around the shock shaft area
• Driver fatigue caused by inconsistent damping response

Installation Notes and Tips

Verify compressed length, extended length, and mount style before installation. Confirm the lower stem mount and upper loop bushing and sleeve mount match the existing suspension hardware on the vehicle. Check the dust shield condition and inspect surrounding bushings, sleeves, and mounting points during replacement. For fitment-based searches, this Monroe 74432 shock absorber is commonly referenced for transit bus suspension service and Monroe Magnum shock absorber replacement needs.

Quality Assurance

Monroe designs the Magnum shock absorber line for demanding OE-style service requirements in commercial suspension applications. Part number 74432 is built to align with manufacturer specification expectations for controlled ride performance and durability in transit bus use.
