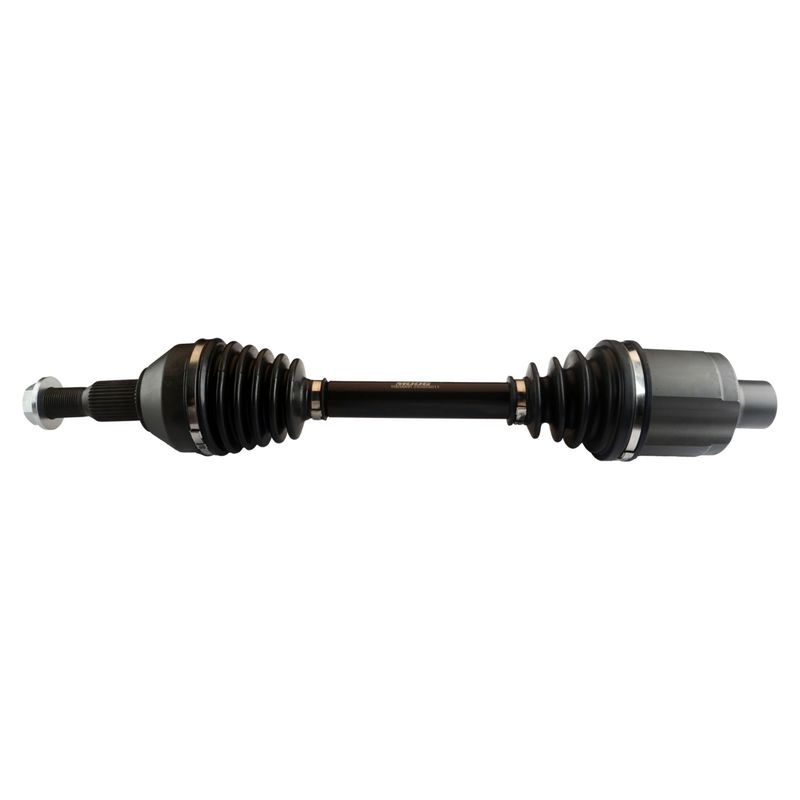

Moog 10E006R CV Axle Assembly - Front Right
| Brand | Moog 10E006R |
|---|---|
| Position | Front Right |
| Compressed Length | 23.78 |
| Compressed Length | 604 |
| Inboard Spline Quantity | 27 |
| Outboard Spline Quantity | 33 |
| Axle Nut Included | Yes |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Outboard Joint Type | Conventional |
| ABS Tone Ring Included | No |
| Axle Nut Socket Size | 33 |
| Axle Nut Type | Hex |
| Axle Nut Thread Size | M27×2.0 |
| Inboard Boot Material | Neoprene |
| Outboard Boot Material | Neoprene |
| Fits | Buick, Chevrolet, GMC, and Saturn · 34 vehicles |
Premium materials. Built for reliable performance and rigorous testing.
Fast installation. Problem-solving design helps make installation hassle-free.
Neoprene boots. Durable boot material helps protect the CV axle assembly.
Cross-references 661466, 20985786 and 22796414 for the same application. See all 5.
MOOG 10E006R Front Right CV Axle Assembly
The MOOG 10E006R CV axle assembly is built for front right driveline service with premium materials and testing focused on dependable operation. It is a direct-fit replacement for select Buick Enclave, Chevrolet Traverse, GMC Acadia, GMC Acadia Limited, and Saturn Outlook applications.
Key Features
- Front right CV axle assembly for driveline repair
- Premium grade construction
- Compressed length: 23.78 in. / 604 mm
- Inboard spline quantity: 27
- Outboard spline quantity: 33
- Inboard joint type: male
- Outboard joint type: conventional
- Neoprene inboard and outboard boots
- Axle nut included; hex nut with M27x2.0 thread and 33 mm socket size
- No ABS tone ring included
Detailed Description
MOOG 10E006R is a premium CV axle assembly engineered for front right applications where smooth torque transfer and consistent driveline performance matter. It uses a male inboard joint, a conventional outboard joint, and neoprene boots to support everyday road use. This part cross-references OE-style numbers such as 661466 and 20985786 for the same application. It fits 2008-2017 Buick Enclave, front right; 2009-2017 Chevrolet Traverse, front right; 2017 GMC Acadia Limited, front right; 2007-2016 GMC Acadia, front right; and 2007-2010 Saturn Outlook, front right.
What It Helps Fix
- Clicking or popping during turns from a worn CV joint
- Vibration under acceleration caused by axle wear
- Grease leakage from damaged axle boots
- Noise from a failing front right axle assembly
- Driveline looseness or uneven power delivery
Installation Notes and Tips
Verify spline counts, axle nut thread size, and compressed length before installation. Confirm front right placement and match the vehicle’s original configuration, including the absence of an ABS tone ring on this part. Use the included axle nut and torque all fasteners to the vehicle manufacturer’s specifications during installation.
Quality Assurance
MOOG backs this CV axle assembly with premium materials and rigorous testing to support reliable service life and consistent fitment on the listed Buick Enclave, Chevrolet Traverse, GMC Acadia, GMC Acadia Limited, and Saturn Outlook applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2017 | Buick | Enclave | Front Right | — |
| 2017 | Chevrolet | Traverse | Front Right | — |
| 2017 | GMC | Acadia Limited | Front Right | — |
| 2016 | Buick | Enclave | Front Right | — |
| 2016 | Chevrolet | Traverse | Front Right | — |
| 2016 | GMC | Acadia | Front Right | — |
| 2015 | Buick | Enclave | Front Right | — |
| 2015 | Chevrolet | Traverse | Front Right | — |
| 2015 | GMC | Acadia | Front Right | — |
| 2014 | Buick | Enclave | Front Right | — |
| 2014 | Chevrolet | Traverse | Front Right | — |
| 2014 | GMC | Acadia | Front Right | — |
| 2013 | Buick | Enclave | Front Right | — |
| 2013 | Chevrolet | Traverse | Front Right | — |
| 2013 | GMC | Acadia | Front Right | — |
| 2012 | Buick | Enclave | Front Right | — |
| 2012 | Chevrolet | Traverse | Front Right | — |
| 2012 | GMC | Acadia | Front Right | — |
| 2011 | Buick | Enclave | Front Right | — |
| 2011 | Chevrolet | Traverse | Front Right | — |
| 2011 | GMC | Acadia | Front Right | — |
| 2010 | Buick | Enclave | Front Right | — |
| 2010 | Chevrolet | Traverse | Front Right | — |
| 2010 | GMC | Acadia | Front Right | — |
| 2010 | Saturn | Outlook | Front Right | — |
| 2009 | Buick | Enclave | Front Right | — |
| 2009 | Chevrolet | Traverse | Front Right | — |
| 2009 | GMC | Acadia | Front Right | — |
| 2009 | Saturn | Outlook | Front Right | — |
| 2008 | Buick | Enclave | Front Right | — |
| 2008 | GMC | Acadia | Front Right | — |
| 2008 | Saturn | Outlook | Front Right | — |
| 2007 | GMC | Acadia | Front Right | — |
| 2007 | Saturn | Outlook | Front Right | — |
