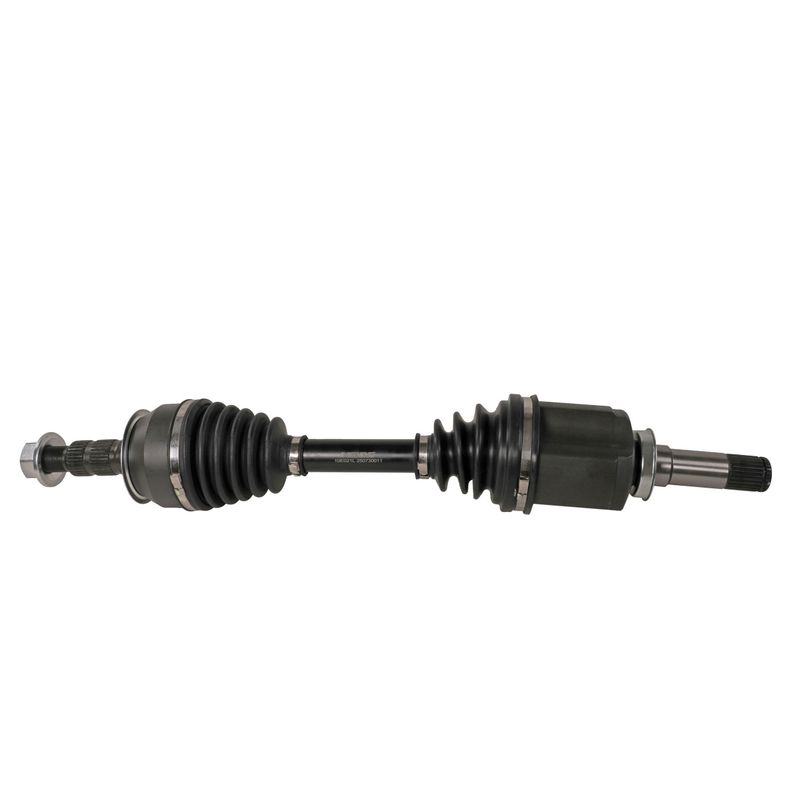

Moog 10E021L CV Axle Assembly - Front Left or Front Right
| Brand | Moog 10E021L |
|---|---|
| Position | Front Left and Front Right |
| Inboard Spline Quantity | 27 |
| Outboard Spline Quantity | 30 |
| Axle Nut Included | Yes |
| Grade Type | Premium |
| ABS Tone Ring Included | No |
| Axle Nut Socket Size | 32 |
| Fits | Buick, Cadillac, and Chevrolet · 33 vehicles |
Premium-grade design. Built for driveline service with tested materials and consistent performance.
Axle nut included. Simplifies service by supplying the specified nut for the listed applications.
Spline-matched fit. 27 inboard and 30 outboard splines for the cataloged replacement.
Cross-references 661513, 13228212 and 22743588 for the same application. See all 7.
CV Axle Assembly for GM Applications
This MOOG CV axle assembly is a premium driveline replacement built for specific GM front-drive applications. It combines premium materials with tested construction to support dependable power transfer and straightforward service work. Part number 10E021L is listed for multiple Chevrolet, Buick, and Cadillac fitments, including Chevrolet Impala and Cadillac XTS applications.
Key Features
- Premium-grade CV axle assembly for driveline service
- 27 inboard splines and 30 outboard splines for the listed applications
- Includes axle nut for the specified fitments
- No ABS tone ring included
- 32 mm axle nut socket size
Detailed Description
MOOG 10E021L is a front axle assembly engineered for direct replacement in select Chevrolet, Buick, and Cadillac vehicles. The design uses premium materials and MOOG problem-solving engineering to support reliable operation and easier installation during axle replacement service. For buyers searching for a Chevrolet Impala CV axle assembly, Buick LaCrosse front axle replacement, or Cadillac XTS front left CV axle, this part number 10E021L matches the listed applications and spline counts.
The axle is cataloged for Fits 2014-2020 Chevrolet Impala, front left; Fits 2013-2019 Cadillac XTS, front left; Fits 2014-2017 Buick Regal, front left; Fits 2010-2016 Buick LaCrosse, front left; Fits 2016 Chevrolet Malibu Limited, front right; Fits 2013-2015 Chevrolet Malibu, front left; Fits 2011-2013 Buick Regal, front right; and Fits 2010 Buick Allure, front left. This part cross-references 661513 and 13228212 for the same application.
What It Helps Solve
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration from axle wear
- Grease leakage from a damaged axle boot or joint seal
- Loss of smooth power transfer through the front driveline
Installation Notes and Tips
Verify spline counts, axle nut socket size, and ABS tone ring requirements before installation. Confirm the vehicle position and side match the cataloged fitment, since this part is listed for both front left and front right applications depending on model and year. Use the correct service procedure for axle nut torque and hub engagement during installation.
Quality Assurance
MOOG backs this CV axle with premium materials and rigorous testing for dependable performance. The brand’s problem-solving approach is focused on making replacement service faster and more straightforward.
| Year | Make | Model | Submodel | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2020 | Chevrolet | Impala | — | — | — | 3.6L | V6 | Front Left | — |
| 2019 | Cadillac | XTS | Livery | — | — | — | — | Front Left | — |
| 2019 | Chevrolet | Impala | — | — | — | 3.6L | V6 | Front Left | — |
| 2018 | Cadillac | XTS | Livery | — | — | — | — | Front Left | — |
| 2018 | Chevrolet | Impala | — | — | — | 3.6L | V6 | Front Left | — |
| 2017 | Buick | Regal | — | — | — | 2.0L | L4 | Front Left | — |
| 2017 | Cadillac | XTS | Livery | — | — | — | — | Front Left | — |
| 2017 | Chevrolet | Impala | — | — | — | 3.6L | V6 | Front Left | — |
| 2016 | Buick | LaCrosse | — | — | — | 3.6L | V6 | Front Left | — |
| 2016 | Buick | Regal | — | — | Automatic | 2.0L | L4 | Front Left | — |
| 2016 | Cadillac | XTS | Livery | — | — | — | — | Front Left | — |
| 2016 | Chevrolet | Impala | — | — | — | 3.6L | V6 | Front Left | — |
| 2016 | Chevrolet | Malibu Limited | — | — | — | — | — | Front Right | — |
| 2015 | Buick | LaCrosse | — | — | — | 3.6L | V6 | Front Left | — |
| 2015 | Buick | Regal | — | — | Automatic | 2.0L | L4 | Front Left | — |
| 2015 | Cadillac | XTS | Livery | — | — | — | — | Front Left | — |
| 2015 | Chevrolet | Impala | — | — | — | 3.6L | V6 | Front Left | — |
| 2015 | Chevrolet | Malibu | — | — | — | 2.0L | L4 | Front Left | — |
| 2014 | Buick | LaCrosse | — | — | — | 3.6L | V6 | Front Left | — |
| 2014 | Buick | Regal | — | — | Automatic | 2.0L | L4 | Front Left | — |
| 2014 | Cadillac | XTS | Livery | — | — | — | — | Front Left | — |
| 2014 | Chevrolet | Impala | — | — | — | 3.6L | V6 | Front Left | — |
| 2014 | Chevrolet | Malibu | — | — | — | 2.0L | L4 | Front Left | — |
| 2013 | Buick | LaCrosse | — | — | — | 3.6L | V6 | Front Left | — |
| 2013 | Buick | Regal | — | — | — | — | — | Front Right | — |
| 2013 | Cadillac | XTS | — | AWD | — | — | — | Front Left | — |
| 2013 | Chevrolet | Malibu | — | — | — | 2.0L | L4 | Front Left | — |
| 2012 | Buick | LaCrosse | — | — | — | 3.6L | V6 | Front Left | — |
| 2012 | Buick | Regal | — | — | — | — | — | Front Right | — |
| 2011 | Buick | LaCrosse | — | — | — | 3.6L | V6 | Front Left | — |
| 2011 | Buick | Regal | — | — | — | — | — | Front Right | — |
| 2010 | Buick | Allure | — | — | — | 3.0L | V6 | Front Left | — |
| 2010 | Buick | LaCrosse | — | — | — | 3.6L | V6 | Front Left | — |
