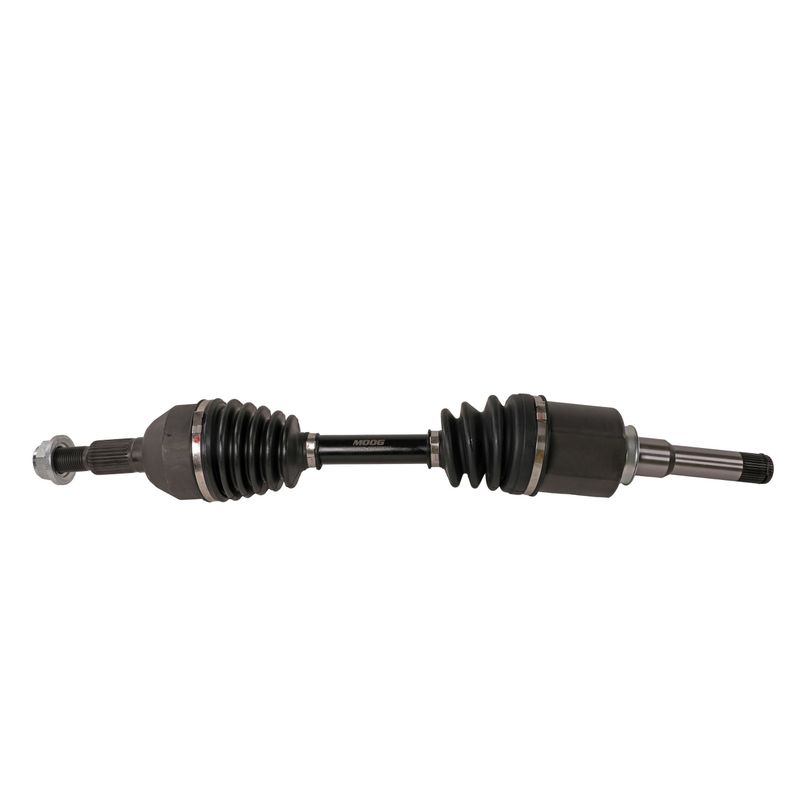

Moog 10E024L CV Axle Assembly - Front Left
| Brand | Moog 10E024L |
|---|---|
| Position | Front Left |
| Compressed Length | 23.31 |
| Inboard Spline Quantity | 34 |
| Outboard Spline Quantity | 30 |
| Axle Nut Included | Yes |
| Grade Type | Premium |
| ABS Tone Ring Included | Yes |
| Axle Nut Thread Size | M24×2.0 |
| Fits | Chevrolet, Pontiac, and Saturn · 8 vehicles |
Premium-grade design. Built as a CV axle assembly for direct driveline replacement service.
ABS tone ring included. Supports wheel speed sensing applications that use axle-mounted signal input.
Service-ready fitment. Axle nut is included with M24 x 2.0 thread size for listed applications.
Cross-references 661458, 20834996 and 22873498 for the same application. See all 4.
Overview
MOOG 10E024L is a premium CV axle assembly built for direct replacement applications with confirmed fitment for select front left driveline positions. It combines premium materials with tested construction to support dependable driveline operation and straightforward service work.
- Premium-grade CV axle assembly for driveline repair
- Includes an ABS tone ring for vehicles equipped with wheel speed sensing
- Axle nut included with M24 x 2.0 thread size
- Compressed length: 23.31 inches
- Inboard spline count: 34; outboard spline count: 30
Detailed Description
MOOG 10E024L is a CV axle assembly engineered for select Chevrolet Malibu, Pontiac G6, and Saturn Aura applications. The axle is specified with a 23.31-inch compressed length, 34 inboard splines, and 30 outboard splines, helping ensure the correct driveline interface for the listed fitments. The included ABS tone ring supports vehicles that use wheel speed signal input at the axle, while the supplied axle nut with M24 x 2.0 thread size supports a complete service replacement. This part cross-references Monroe Shocks & Struts (e.g., 661458, 20834996) for the same application.
What It Helps Fix
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration from axle wear
- Grease leakage caused by a damaged axle boot or joint failure
- ABS warning concerns related to a damaged tone ring on the axle
- Driveline looseness from spline or joint wear
Installation Notes
Fits 2008-2012 Chevrolet Malibu, front left. Fits 2009-2010 Pontiac G6, front left. Fits 2009 Saturn Aura, front left. Verify spline count, axle length, and ABS tone ring requirements before installation. Confirm axle nut thread size matches the vehicle specification. Professional installation and final torque checks are recommended for proper driveline service.
Quality Assurance
MOOG backs this CV axle with premium materials and rigorous testing, and the brand’s problem-solving design approach supports efficient service replacement.
| Year | Make | Model | Submodel | Transmission | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2012 | Chevrolet | Malibu | — | — | 2.4L | L4 | — | Front Left | — |
| 2011 | Chevrolet | Malibu | — | — | 2.4L | L4 | — | Front Left | — |
| 2010 | Chevrolet | Malibu | LTZ | — | 2.4L | L4 | — | Front Left | — |
| 2010 | Pontiac | G6 | — | Automatic | 2.4L | L4 | — | Front Left | — |
| 2009 | Chevrolet | Malibu | LTZ | — | 2.4L | L4 | — | Front Left | — |
| 2009 | Pontiac | G6 | — | Automatic | 2.4L | L4 | — | Front Left | — |
| 2009 | Saturn | Aura | — | — | 2.4L | L4 | GAS | Front Left | — |
| 2008 | Chevrolet | Malibu | LTZ | — | 2.4L | L4 | — | Front Left | — |
