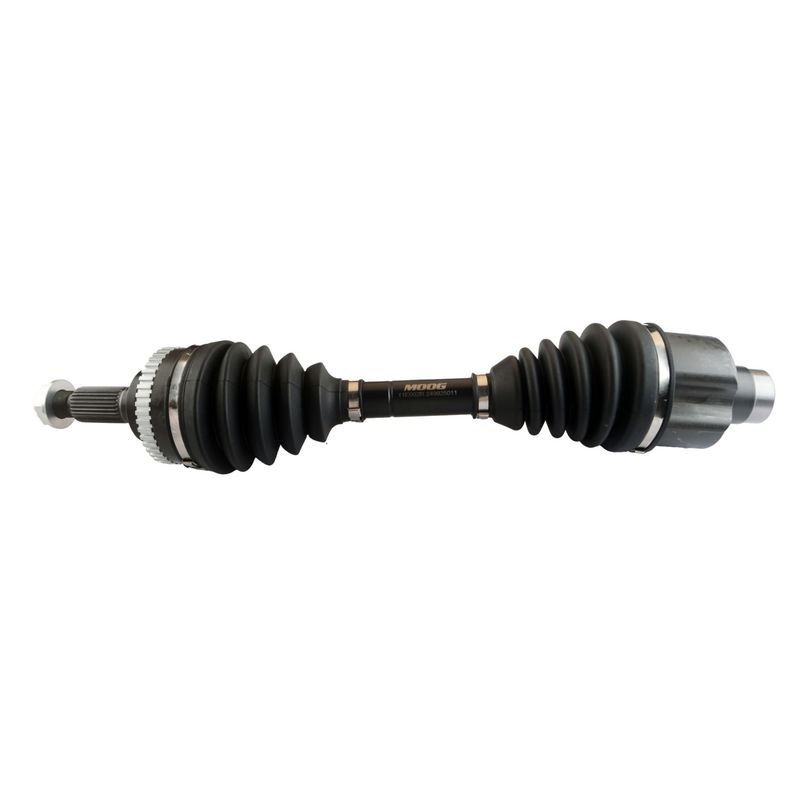

Moog 11E002R CV Axle Assembly - Front Right
| Brand | Moog 11E002R |
|---|---|
| Position | Front Right |
| Compressed Length | 21.46 |
| Compressed Length | 545 |
| Inboard Spline Quantity | 34 |
| Outboard Spline Quantity | 28 |
| Axle Nut Included | Yes |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Outboard Joint Type | Conventional |
| ABS Tone Ring Included | Yes |
| Axle Nut Socket Size | 32 |
| Axle Nut Type | Hex |
| Axle Nut Thread Size | M22×1.5 |
| Inboard Boot Material | Neoprene |
| Outboard Boot Material | Neoprene |
| Fits | Ford, Mazda, and Mercury · 19 vehicles |
Premium materials. Built for reliable performance and rigorous testing.
Fast installation. Problem-solving design helps make installation hassle-free.
Neoprene boots. Durable boot material helps protect the CV joints.
Cross-references 5L8Z3A428DB, 662086 and GG062550XD for the same application. See all 7.
MOOG 11E002R Front Right CV Axle Assembly
The MOOG 11E002R is a front right CV axle assembly built for specific Ford, Mazda, and Mercury applications. It combines premium materials with tested construction to support smooth driveline operation and straightforward replacement on the vehicle.
- Front right CV axle assembly for confirmed applications
- Premium grade construction for dependable driveline service
- Compressed length: 21.46 in. / 545 mm
- Inboard spline count: 34; outboard spline count: 28
- Includes axle nut and ABS tone ring
- Inboard joint type: male; outboard joint type: conventional
- Neoprene inboard and outboard boots
- Axle nut specs: 32 mm socket, hex type, M22x1.5 thread
Fitment Details
- Fits 2001-2008 Ford Escape, front right.
- Fits 2001-2006 Mazda Tribute, front right.
- Fits 2008 Mazda Tribute, front right.
- Fits 2005-2008 Mercury Mariner, front right.
Built for direct replacement service, this MOOG CV axle assembly is specified for the front right position on the Ford Escape, Mazda Tribute, and Mercury Mariner applications listed above. The 11E002R uses a male inboard joint, a conventional outboard joint, and neoprene boots to support consistent operation in the driveline. The included ABS tone ring and axle nut help match the original service configuration for the covered vehicles. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Fix
- Clicking or popping during turns from a worn outer CV joint
- Vibration under acceleration caused by axle wear
- Grease leakage from damaged CV boots
- ABS warning concerns related to a missing or damaged tone ring
- Driveline noise from a fatigued front right axle assembly
Installation Notes
Verify spline counts, compressed length, axle nut thread size, and ABS tone ring configuration before installation. Confirm the front right position and match the vehicle year and model exactly to the fitment list. Use the correct 32 mm socket for the axle nut and follow the vehicle service procedure for torque and final inspection.
Quality Assurance
MOOG backs this CV axle with premium materials and rigorous testing to support reliable performance. The brand’s problem-solving design approach is aimed at making replacement work faster and less complicated on the listed applications.
| Year | Make | Model | Submodel | Transmission | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2008 | Ford | Escape | Limited | Automatic | — | — | — | Front Right | — |
| 2008 | Mazda | Tribute | — | Automatic | — | — | GAS | Front Right | — |
| 2008 | Mercury | Mariner | — | Automatic | — | — | GAS | Front Right | — |
| 2007 | Ford | Escape | Limited | Automatic | — | — | — | Front Right | — |
| 2007 | Mercury | Mariner | — | Automatic | — | — | GAS | Front Right | — |
| 2006 | Ford | Escape | Limited | Automatic | — | — | — | Front Right | — |
| 2006 | Mazda | Tribute | — | Automatic | — | — | — | Front Right | — |
| 2006 | Mercury | Mariner | — | Automatic | — | — | GAS | Front Right | — |
| 2005 | Ford | Escape | — | Automatic | — | — | — | Front Right | — |
| 2005 | Mazda | Tribute | — | Automatic | — | — | — | Front Right | — |
| 2005 | Mercury | Mariner | — | — | — | — | — | Front Right | — |
| 2004 | Ford | Escape | — | Automatic | — | — | — | Front Right | — |
| 2004 | Mazda | Tribute | — | — | 3.0L | V6 | — | Front Right | — |
| 2003 | Ford | Escape | — | Automatic | — | — | — | Front Right | — |
| 2003 | Mazda | Tribute | — | — | 3.0L | V6 | — | Front Right | — |
| 2002 | Ford | Escape | — | Automatic | — | — | — | Front Right | — |
| 2002 | Mazda | Tribute | — | — | 3.0L | V6 | — | Front Right | — |
| 2001 | Ford | Escape | — | Automatic | — | — | — | Front Right | — |
| 2001 | Mazda | Tribute | — | — | 3.0L | V6 | — | Front Right | — |
