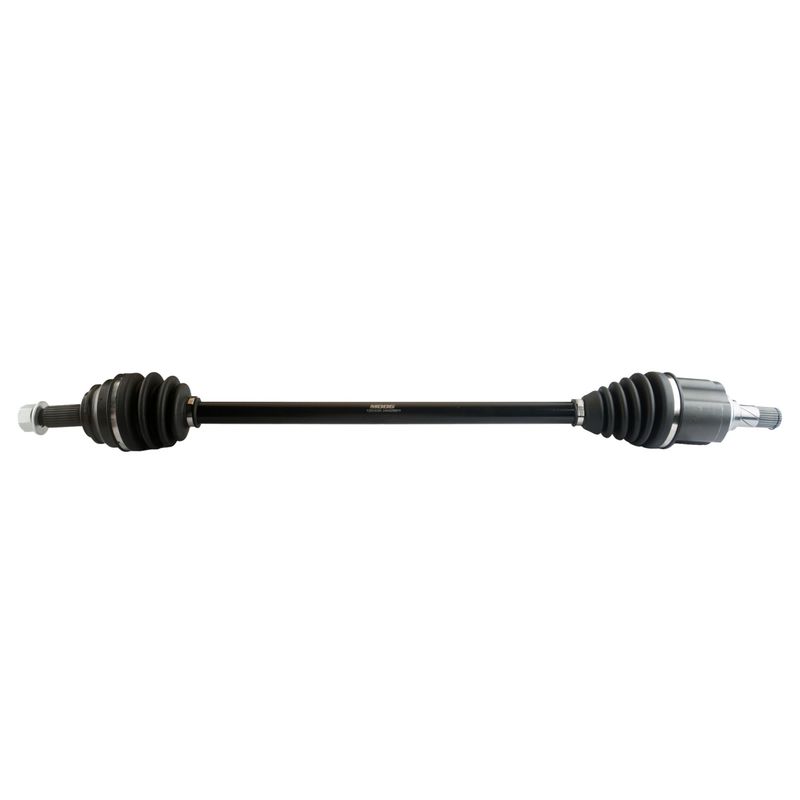

Moog 12E003R CV Axle Assembly - Front Right

MOOG 12E003R Front Right CV Axle Assembly

MOOG 12E003R is a premium CV axle assembly built for front right applications on select Jeep Compass, Jeep Patriot, and Dodge Caliber models. It combines durable materials with tested construction to support smooth driveline operation and straightforward service replacement.

Key Features

• Premium-grade CV axle assembly for front right driveline service
• Compressed length: 37.72 in. (958 mm)
• Inboard spline quantity: 27; outboard spline quantity: 28
• Inboard joint type: male; outboard joint type: conventional
• Neoprene inboard and outboard boots for added durability
• Axle nut included; axle nut socket size: 32 mm
• Axle nut thread size: M22x1.5; hex-style axle nut
• No ABS tone ring included

Detailed Description

This MOOG CV axle assembly is engineered for direct replacement service on the front right side of 2007-2017 Jeep Compass, 2007-2017 Jeep Patriot, and 2007-2011 Dodge Caliber. The MOOG 12E003R uses premium materials and validated construction to deliver dependable driveline performance, while MOOG problem-solving design features help simplify installation and reduce service time. This part cross-references Monroe Shocks & Struts (e.g., 663512, 5105772AB) for the same application.

What It Helps Fix

• Clicking or popping noises during turns from a worn outer CV joint
• Vibration or shudder under acceleration from a damaged axle shaft
• Torn or leaking CV boots that expose the joint to contamination
• Excessive driveline play caused by worn inboard or outboard components
• Front right axle replacement needs on Jeep Compass, Jeep Patriot, and Dodge Caliber models

Installation Notes and Tips

Verify front right fitment by year, make, and model before installation. Confirm spline counts, axle nut thread size, and compressed length against the original axle to ensure proper alignment and engagement. The included axle nut uses a 32 mm socket and M22x1.5 thread specification. Because this axle does not include an ABS tone ring, compare the original part configuration before service. Fits 2007-2017 Jeep Compass, front right. Fits 2007-2017 Jeep Patriot, front right. Fits 2007-2011 Dodge Caliber, front right.

Quality Assurance

MOOG backs this CV axle assembly with premium materials and rigorous testing to support reliable performance in daily driving and repair applications. The 12E003R is built to meet the demands of front axle service while maintaining consistent fit and function across the listed applications.
