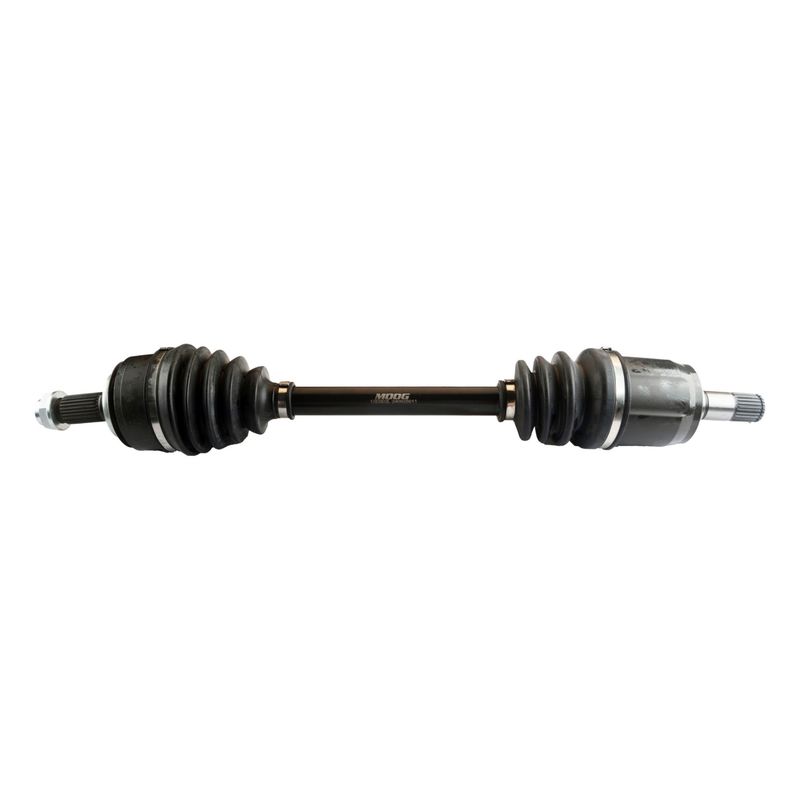

Moog 13E002L CV Axle Assembly - Front Left
| Brand | Moog 13E002L |
|---|---|
| Position | Front Left |
| Compressed Length | 24.33 |
| Compressed Length | 618 |
| Inboard Spline Quantity | 25 |
| Outboard Spline Quantity | 26 |
| Axle Nut Included | Yes |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Outboard Joint Type | Conventional |
| ABS Tone Ring Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Type | Hex |
| Axle Nut Thread Size | M22×1.5 |
| Inboard Boot Material | Neoprene |
| Outboard Boot Material | Neoprene |
| Fits | Honda · 6 vehicles |
Premium materials. Built for reliable performance and rigorous testing.
Fast installation. Problem-solving design helps make installation hassle-free.
Neoprene boots. Durable boot material helps protect the CV axle assembly.
Cross-references 44306SNA000, 44306SNA900 and 44306SNEA01 for the same application. See all 5.
MOOG 13E002L CV Axle Assembly for Civic
Restore smooth power transfer with the MOOG 13E002L CV axle assembly for the front left side of select Honda Civic models. Built with premium materials and tested for dependable operation, this axle is made for drivers who need a direct-fit replacement for worn or noisy driveline components.
Key Features
- Fits 2006-2011 Honda Civic, front left
- MOOG part number 13E002L
- Premium-grade CV axle assembly
- Compressed length: 24.33 in. (618 mm)
- Inboard spline quantity: 25
- Outboard spline quantity: 26
- Inboard joint type: Male
- Outboard joint type: Conventional
- Neoprene inboard and outboard boots
- Axle nut included; hex nut with M22x1.5 thread and 32 mm socket size
Product Details
The MOOG 13E002L is a front left CV axle assembly engineered for 2006-2011 Honda Civic applications. It uses a male inboard joint, a conventional outboard joint, and neoprene boots to support consistent articulation and protection at the joint areas. The axle is built to the specified compressed length and spline counts for proper fitment, and the included axle nut helps streamline the replacement process. This part cross-references OE-style numbers such as 44306SNA000 and 44306SNA900 for the same application.
Common Problems This Axle Can Address
- Clicking or popping noises during turns from a worn outer CV joint
- Vibration or shudder during acceleration from a damaged axle shaft
- Torn boots that allow grease loss and contamination
- Excessive driveline play from worn internal CV components
- Noise or binding caused by a failing front left axle assembly
Installation Notes and Tips
Confirm front left fitment on your Honda Civic before installation and verify spline counts, axle length, and axle nut thread size against the removed part. Inspect the hub, seals, and surrounding suspension components for wear before installing the new axle. Torque the axle nut to the vehicle manufacturer’s specification and recheck fasteners after the initial road test.
Quality Assurance
MOOG backs this CV axle with premium materials and testing focused on reliable performance and easier installation. The 13E002L is built to meet the demands of daily driving while supporting a straightforward replacement on compatible Honda Civic front left applications.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2011 | Honda | Civic | Automatic | 1.8L | L4 | Front Left | — |
| 2010 | Honda | Civic | Automatic | 1.8L | L4 | Front Left | — |
| 2009 | Honda | Civic | Automatic | 1.8L | L4 | Front Left | — |
| 2008 | Honda | Civic | Automatic | 1.8L | L4 | Front Left | — |
| 2007 | Honda | Civic | Automatic | 1.8L | L4 | Front Left | — |
| 2006 | Honda | Civic | Automatic | 1.8L | L4 | Front Left | — |
| No rows match your filter. | |||||||
