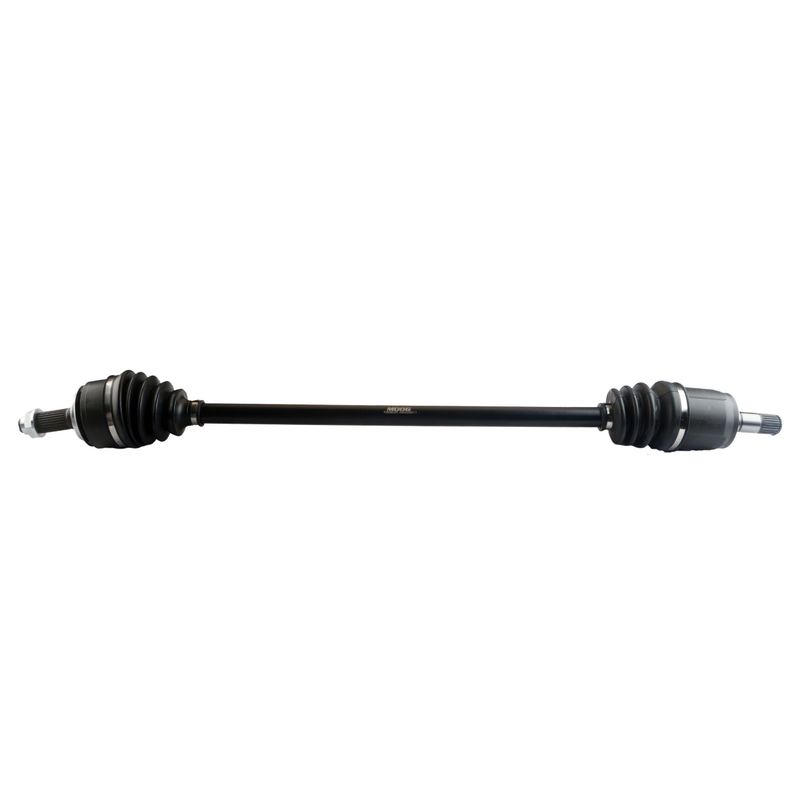

Moog 13E002R CV Axle Assembly - Front Right
| Brand | Moog 13E002R |
|---|---|
| Position | Front Right |
| Compressed Length | 36.02 |
| Compressed Length | 915 |
| Inboard Spline Quantity | 25 |
| Outboard Spline Quantity | 26 |
| Axle Nut Included | Yes |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Outboard Joint Type | Conventional |
| ABS Tone Ring Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Type | Hex |
| Axle Nut Thread Size | M22×1.5 |
| Inboard Boot Material | Neoprene |
| Outboard Boot Material | Neoprene |
| Fits | Honda · 6 vehicles |
Premium materials. Built for reliable performance and rigorous testing.
Fast installation. Problem-solving design helps make installation hassle-free.
Neoprene boots. Durable boot material helps protect the CV axle assembly.
Cross-references 44305SNA000, 44305SNEA01 and 664233 for the same application. See all 3.
Moog 13E002R CV Axle Assembly for Honda Civic
The Moog 13E002R is a premium CV axle assembly for the front right position on select 2006-2011 Honda Civic models. Built with premium materials and tested for dependable driveline performance, it is a direct-fit replacement for common front axle service needs on the Honda Civic.
Key Features
- Part number 13E002R CV axle assembly for front right applications
- Fits 2006-2011 Honda Civic, front right
- Premium grade construction for driveline service
- Inboard spline count: 25; outboard spline count: 26
- Inboard joint type: male; outboard joint type: conventional
- Neoprene inboard and outboard boots for flexible sealing
- Axle nut included; hex nut with M22x1.5 thread and 32 mm socket size
- No ABS tone ring included
Detailed Description
Moog 13E002R is a front right CV axle assembly engineered for 2006-2011 Honda Civic fitment. It uses a 36.02-inch compressed length, 25 inboard splines, and 26 outboard splines to match the specified application. The axle includes a male inboard joint and a conventional outboard joint, along with neoprene boots at both ends to support sealing in driveline service. This part cross-references OE-style numbers 44305SNA000 and 44305SNEA01 for the same application.
What It Helps Fix
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder felt through the drivetrain
- Grease leakage from damaged axle boots
- Axle shaft wear that affects smooth power transfer
- Front right driveline noise on a Honda Civic
Installation Notes and Tips
Verify spline count, axle length, nut thread size, and front right position before installation. Inspect the hub, seals, and surrounding suspension components for wear that could affect axle life. Use the included axle nut and confirm proper torque specifications for the vehicle during reassembly.
Quality Assurance
Moog backs this CV axle with premium materials and rigorous testing to support reliable driveline performance. The 13E002R is built for consistent fitment and serviceability on the specified Honda Civic applications.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2011 | Honda | Civic | Automatic | 1.8L | L4 | Front Right | — |
| 2010 | Honda | Civic | Automatic | 1.8L | L4 | Front Right | — |
| 2009 | Honda | Civic | Automatic | 1.8L | L4 | Front Right | — |
| 2008 | Honda | Civic | Automatic | 1.8L | L4 | Front Right | — |
| 2007 | Honda | Civic | Automatic | 1.8L | L4 | Front Right | — |
| 2006 | Honda | Civic | Automatic | 1.8L | L4 | Front Right | — |
