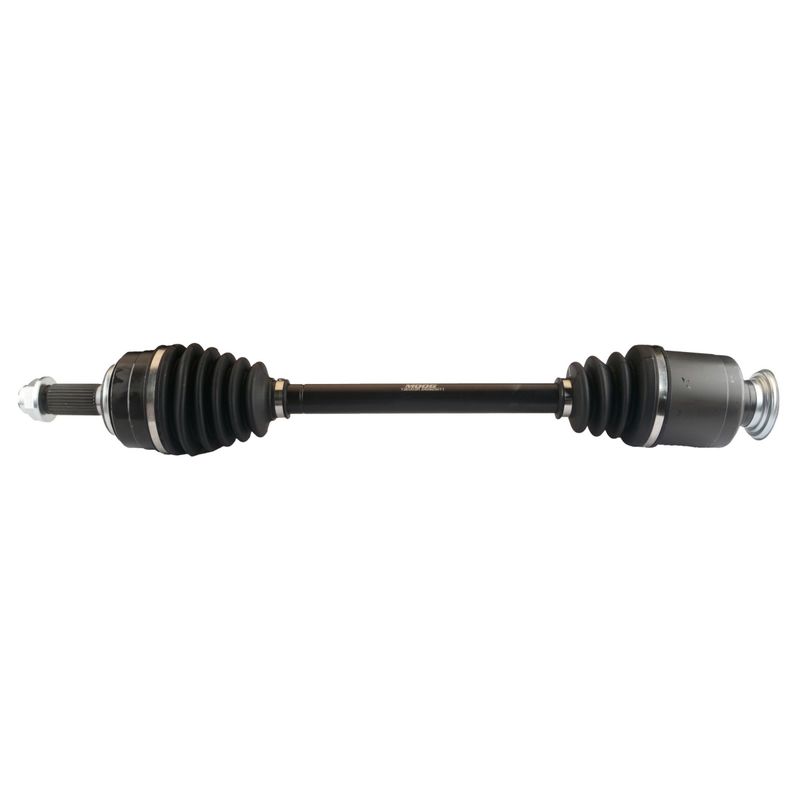

Moog 13E003R CV Axle Assembly - Front Right

MOOG 13E003R CV Axle Assembly

MOOG 13E003R is a premium CV axle assembly for the front right position on select Honda applications. Built with premium materials and tested for dependable driveline performance, it is a direct-fit replacement for Honda Ridgeline and Honda Odyssey models that need a precise axle solution.

Key Features

• Front right CV axle assembly for confirmed Honda fitment
• Premium grade construction for consistent driveline operation
• Compressed length: 26.81 in. / 681 mm
• Inboard spline quantity: 27; outboard spline quantity: 30
• Includes axle nut with 36 mm hex socket size and M26x1.5 thread
• Neoprene inboard and outboard boots for joint protection
• Inboard joint type: male; outboard joint type: conventional
• No ABS tone ring included

Detailed Description

This MOOG CV axle assembly, part number 13E003R, is engineered for front right driveline service on 2006-2014 Honda Ridgeline and 2005-2010 Honda Odyssey models. It uses the specified spline counts, axle nut dimensions, and boot materials to match the original application requirements and support smooth power transfer from the transaxle to the wheel hub. For shoppers searching for a Honda Ridgeline front right CV axle or a Honda Odyssey front right axle replacement, 13E003R provides a direct replacement path with application-specific dimensions.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Clicking or popping noises during turns from a worn outer CV joint
• Vibration or shudder under acceleration from axle wear
• Grease leakage caused by damaged axle boots
• Excessive driveline play from a fatigued axle shaft
• Loss of smooth front-wheel power delivery on Honda Ridgeline and Honda Odyssey vehicles

Installation Notes and Tips

Verify front right fitment by year, model, and position before installation. Confirm axle nut thread size, socket size, and spline counts against the original part, and inspect the hub, seals, and surrounding suspension components for wear before reassembly. Proper torque procedures and alignment checks after installation help ensure reliable operation.

Quality Assurance

MOOG backs this CV axle with premium materials and rigorous testing to support reliable performance and easier installation on the specified Honda applications. Part number 13E003R is built to meet the demands of daily driveline service on compatible Ridgeline and Odyssey front right positions.
