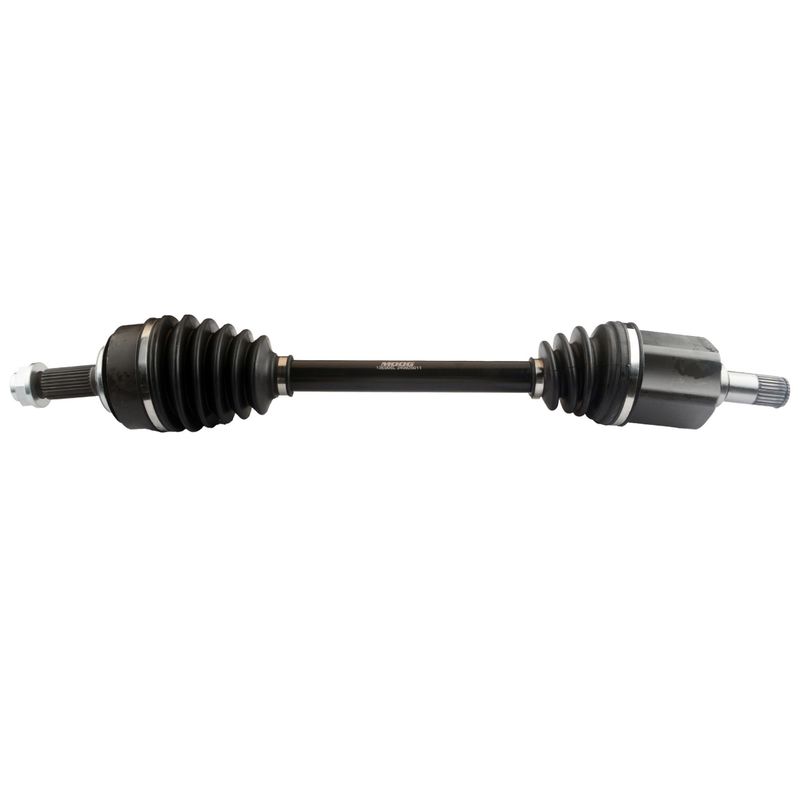

Moog 13E005L CV Axle Assembly - Front Left
| Brand | Moog 13E005L |
|---|---|
| Position | Front Left |
| Compressed Length | 26.22 |
| Compressed Length | 666 |
| Inboard Spline Quantity | 27 |
| Outboard Spline Quantity | 28 |
| Axle Nut Included | Yes |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Outboard Joint Type | Conventional |
| ABS Tone Ring Included | No |
| Axle Nut Socket Size | 36 |
| Axle Nut Type | Hex |
| Axle Nut Thread Size | M24×1.5 |
| Inboard Boot Material | Neoprene |
| Outboard Boot Material | Neoprene |
| Fits | Honda · 10 vehicles |
Premium materials. Built for reliable performance and rigorous testing.
Fast installation. Problem-solving design helps make installation hassle-free.
Neoprene boots. Durable boot material helps protect the CV axle assembly.
Cross-references 44306S9A000, 44306S9AN00 and 44306SCAE00 for the same application. See all 7.
MOOG 13E005L CV Axle Assembly
The MOOG 13E005L CV axle assembly is built for front left applications on select Honda models, including the 2003-2007 Honda Accord and 2002-2006 Honda CR-V. Backed by premium materials and tested for dependable operation, this axle is engineered for consistent driveline performance and straightforward service replacement.
Key Features
- Part number 13E005L CV axle assembly for front left installation
- Fits 2003-2007 Honda Accord, front left
- Fits 2002-2006 Honda CR-V, front left
- Premium grade construction
- Neoprene inboard and outboard boots
- Inboard joint type: male
- Outboard joint type: conventional
- Axle nut included
- Axle nut thread size: M24x1.5
- Axle nut socket size: 36 mm hex
- Inboard spline quantity: 27
- Outboard spline quantity: 28
- Compressed length: 26.22 in. (666 mm)
Detailed Description
MOOG 13E005L is a premium CV axle assembly designed for front left driveline service on the Honda Accord and Honda CR-V applications listed above. The axle uses neoprene boot material at both joints and a conventional outboard joint design, with a male inboard joint configuration for the specified fitments. MOOG focuses on materials and testing that support reliable operation and a smoother replacement experience during driveline repair.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Address
- Clicking or popping noises during turns from a worn CV axle
- Vibration felt through the drivetrain during acceleration
- Grease leakage from damaged axle boots
- Excessive play or wear in the front left axle assembly
- Restoring driveline function after axle failure on Honda Accord or Honda CR-V models
Installation Notes and Tips
Verify front left position, spline count, axle nut thread size, and compressed length before installation. Confirm vehicle application by year, make, and model: Fits 2003-2007 Honda Accord, front left, and Fits 2002-2006 Honda CR-V, front left. The included axle nut uses a 36 mm hex socket and M24x1.5 thread size. Inspect related hub, seal, and suspension components during service to help ensure a complete repair.
Quality Assurance
MOOG backs this CV axle assembly with premium materials and rigorous testing to support dependable performance in daily driving and repair service.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2007 | Honda | Accord | Manual | 2.4L | L4 | Front Left | — |
| 2006 | Honda | Accord | Manual | 2.4L | L4 | Front Left | — |
| 2006 | Honda | CR-V | — | — | — | Front Left | — |
| 2005 | Honda | Accord | Manual | 2.4L | L4 | Front Left | — |
| 2005 | Honda | CR-V | — | — | — | Front Left | — |
| 2004 | Honda | Accord | Manual | 2.4L | L4 | Front Left | — |
| 2004 | Honda | CR-V | — | — | — | Front Left | — |
| 2003 | Honda | Accord | Manual | 2.4L | L4 | Front Left | — |
| 2003 | Honda | CR-V | — | — | — | Front Left | — |
| 2002 | Honda | CR-V | — | — | — | Front Left | — |
