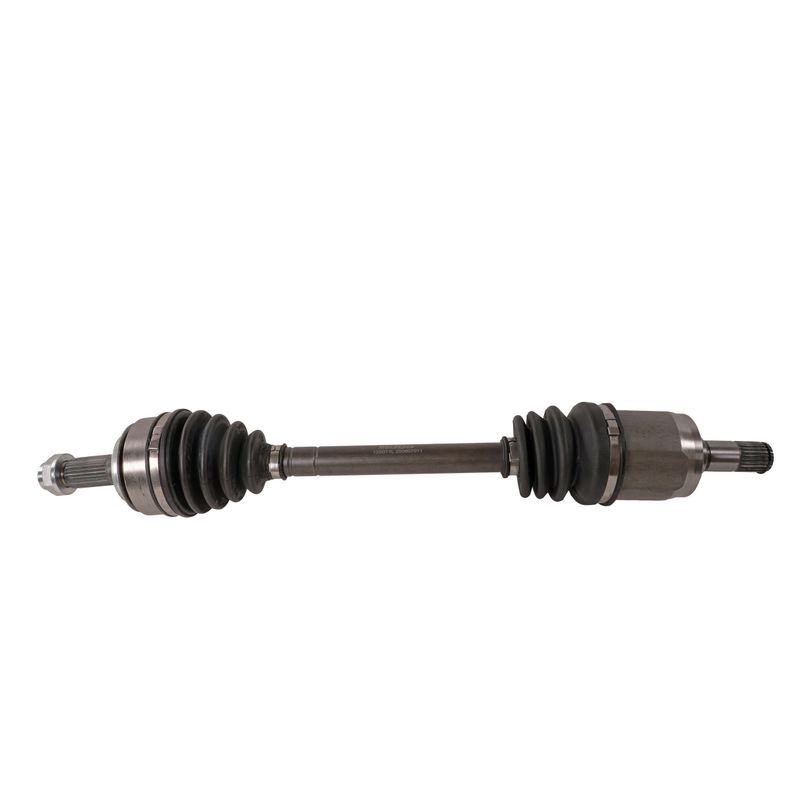

Moog 13S011L CV Axle Assembly - Front Left

CV Axle Assembly for Honda Civic

The MOOG 13S011L CV axle assembly is a premium driveline replacement for the front left position. It is built with premium materials and tested for dependable performance, with design details that support a straightforward installation on compatible Honda Civic applications.

Key Features

• Premium-grade CV axle assembly for driveline service
• Compressed length: 23.7
• 25 inboard splines and 26 outboard splines
• Axle nut included
• No ABS tone ring included

Detailed Description

MOOG 13S011L is a CV axle assembly engineered for the front left side on 2006-2011 Honda Civic models. The axle uses a 25-spline inboard connection and a 26-spline outboard connection, with a compressed length of 23.7 for proper driveline geometry in the specified application. The included axle nut supports a complete service replacement, while the absence of an ABS tone ring should be verified against the original axle before installation. This part cross-references Honda OE numbers 44306SNC000 and 44306SNC010 for the same application.

Common Issues This Part May Address

• Clicking or popping during turns from a worn CV joint
• Vibration or shudder during acceleration
• Grease leakage from a damaged axle boot
• Excessive driveline play or noise

Installation Notes and Tips

Confirm spline counts, compressed length, and ABS tone ring requirements before installation. This CV axle assembly is listed for the front left position on 2006-2011 Honda Civic models, so match the original axle configuration to the vehicle before service. Use the included axle nut where specified by the application and follow factory torque procedures during installation.

Quality Assurance

MOOG backs this CV axle with premium materials and rigorous testing for reliable performance. MOOG problem-solving engineering is focused on making installation faster and less complicated for the technician.
