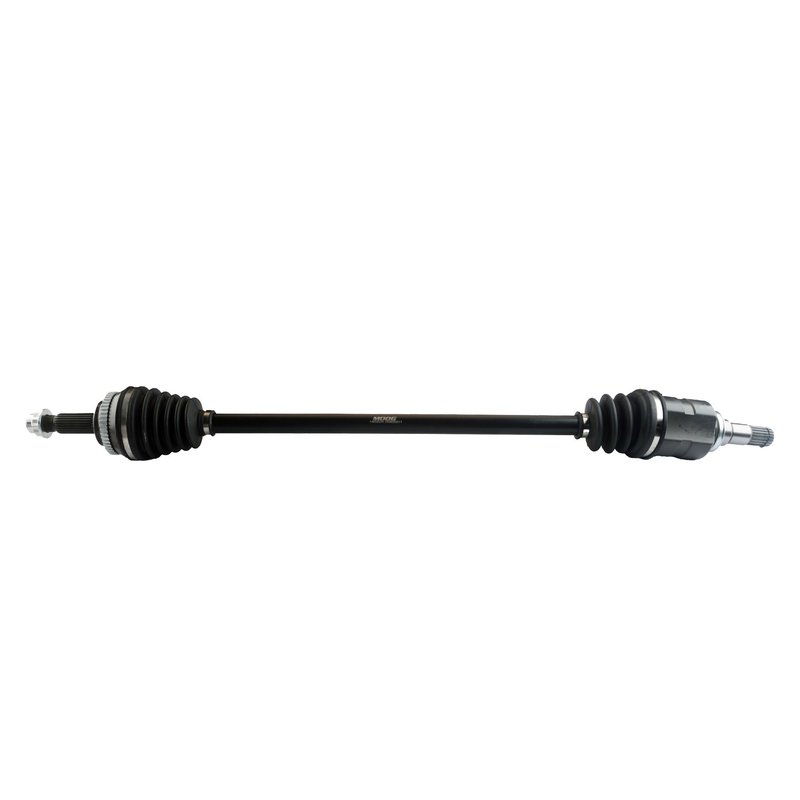

Moog 14E003R CV Axle Assembly - Front Right
| Brand | Moog 14E003R |
|---|---|
| Position | Front Right |
| Compressed Length | 36.34 |
| Compressed Length | 923 |
| Inboard Spline Quantity | 20 |
| Outboard Spline Quantity | 26 |
| Axle Nut Included | Yes |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Outboard Joint Type | Conventional |
| ABS Tone Ring Included | Yes |
| Axle Nut Socket Size | 30 |
| Axle Nut Type | Hex |
| Axle Nut Thread Size | M22×1.5 |
| Inboard Boot Material | Neoprene |
| Outboard Boot Material | Neoprene |
| Fits | Pontiac and Toyota · 29 vehicles |
Premium materials. Built for reliable performance and rigorous testing.
Fast installation. Problem-solving design helps make installation hassle-free.
Neoprene boots. Durable boot material helps protect the CV axle assembly.
Cross-references 665224, 4341002A03 and 19183737 for the same application. See all 11.
MOOG 14E003R Front Right CV Axle Assembly
Restore smooth power transfer with the MOOG 14E003R CV axle assembly for front right applications. Built with premium materials and tested for dependable operation, this axle is a direct-fit option for select Toyota Corolla, Toyota Matrix, and Pontiac Vibe models.
Key Features
- Front right CV axle assembly for driveline repair
- Premium grade construction for consistent performance
- Compressed length: 36.34 in. (923 mm)
- Inboard spline count: 20; outboard spline count: 26
- Includes axle nut with 30 mm hex socket size and M22x1.5 thread
- ABS tone ring included for vehicles equipped with ABS
- Neoprene inboard and outboard boots
- Inboard joint type: male; outboard joint type: conventional
Detailed Description
MOOG 14E003R is a front right CV axle assembly engineered for 2003-2018 Toyota Corolla, 2003-2013 Toyota Matrix, and 2009-2010 Pontiac Vibe applications. It is built to support reliable driveline operation with premium materials, tested components, and fitment-specific dimensions that help simplify replacement work. This part cross-references OE-style numbers such as 4341001130 and 665224 for the same application.
Common Repair Symptoms
- Clicking or popping during turns from a worn outer CV joint
- Vibration under acceleration caused by axle wear or imbalance
- Grease leakage from damaged axle boots
- Clunking or looseness in the front driveline
- ABS warning concerns when the tone ring is damaged or missing
Installation Notes
Verify spline count, axle length, nut thread size, and ABS tone ring configuration before installation. This axle is specified for the front right position only, so confirm side and vehicle application against the original part. Inspect seals, hub condition, and surrounding suspension components during replacement to help prevent repeat driveline noise or leakage.
Quality Assurance
MOOG backs this axle with premium materials and rigorous testing to support dependable service life and straightforward installation. The 14E003R is built as a problem-solving replacement for common front axle service on Toyota Corolla, Toyota Matrix, and Pontiac Vibe models.
| Year | Make | Model | Submodel | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2018 | Toyota | Corolla | — | — | — | — | — | Front Right | — |
| 2017 | Toyota | Corolla | — | — | — | 1.8L | L4 | Front Right | — |
| 2016 | Toyota | Corolla | — | — | — | 1.8L | L4 | Front Right | — |
| 2015 | Toyota | Corolla | — | — | — | 1.8L | L4 | Front Right | — |
| 2014 | Toyota | Corolla | — | — | — | 1.8L | L4 | Front Right | — |
| 2013 | Toyota | Corolla | — | — | — | 1.8L | L4 | Front Right | — |
| 2013 | Toyota | Matrix | — | — | — | 1.8L | L4 | Front Right | — |
| 2012 | Toyota | Corolla | — | — | — | 1.8L | L4 | Front Right | — |
| 2012 | Toyota | Matrix | — | — | — | 1.8L | L4 | Front Right | — |
| 2011 | Toyota | Corolla | — | — | — | 1.8L | L4 | Front Right | — |
| 2011 | Toyota | Matrix | — | — | — | 1.8L | L4 | Front Right | — |
| 2010 | Pontiac | Vibe | — | — | — | 1.8L | L4 | Front Right | — |
| 2010 | Toyota | Corolla | — | — | — | 1.8L | L4 | Front Right | — |
| 2010 | Toyota | Matrix | — | — | — | 1.8L | L4 | Front Right | — |
| 2009 | Pontiac | Vibe | — | — | — | 1.8L | L4 | Front Right | — |
| 2009 | Toyota | Corolla | — | — | — | 1.8L | L4 | Front Right | — |
| 2009 | Toyota | Matrix | — | — | — | 1.8L | L4 | Front Right | — |
| 2008 | Toyota | Corolla | — | — | Manual | — | — | Front Right | — |
| 2008 | Toyota | Matrix | — | — | Manual | — | — | Front Right | — |
| 2007 | Toyota | Corolla | — | — | Manual | — | — | Front Right | — |
| 2007 | Toyota | Matrix | — | — | Manual | — | — | Front Right | — |
| 2006 | Toyota | Corolla | S | — | Manual | — | — | Front Right | — |
| 2006 | Toyota | Matrix | Base | FWD | Manual | — | — | Front Right | — |
| 2005 | Toyota | Corolla | S | — | Manual | — | — | Front Right | — |
| 2005 | Toyota | Matrix | Base | FWD | Manual | — | — | Front Right | — |
| 2004 | Toyota | Corolla | — | — | Manual | — | — | Front Right | — |
| 2004 | Toyota | Matrix | Base | FWD | Manual | — | — | Front Right | — |
| 2003 | Toyota | Corolla | — | — | Manual | — | — | Front Right | — |
| 2003 | Toyota | Matrix | Base | FWD | Manual | — | — | Front Right | — |
