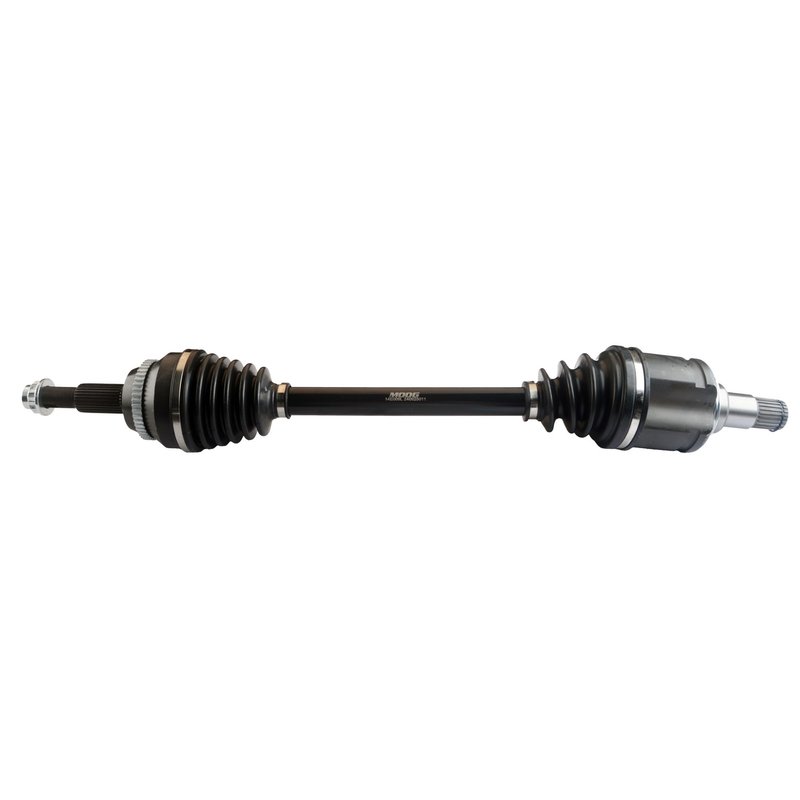

Moog 14E008L CV Axle Assembly - Front Left

MOOG 14E008L Front Left CV Axle for Toyota Sienna

MOOG 14E008L is a premium CV axle assembly for the front left position on select Toyota Sienna models. Built with durable materials and tested for dependable operation, it supports smooth power transfer and consistent driveline performance on the road.

• Fits 2011-2016 Toyota Sienna, front left
• Premium-grade CV axle assembly for driveline and axle service
• Compressed length: 28.31 in. (719 mm)
• 24 inboard splines and 30 outboard splines
• Includes axle nut with 30 mm hex socket size and M22x1.5 thread
• ABS tone ring included for vehicles equipped with tone-ring-based wheel speed sensing
• Neoprene inboard and outboard boots for flexible sealing
• Inboard joint type: male; outboard joint type: conventional

Application Details

This MOOG CV axle assembly is built for 2011-2016 Toyota Sienna front left service where a direct replacement axle is needed. The part number 14E008L is also useful when cross-referencing OE-style replacement numbers such as 665397 or 4342008040 for the same application.

Common Problems It Can Address

• Clicking or popping during turns caused by worn CV joints
• Vibration under acceleration from a damaged axle shaft
• Torn or leaking axle boots that expose the joint to contamination
• ABS warning concerns related to a damaged tone ring
• Excessive driveline play from spline or joint wear

Installation Notes

Verify spline count, axle nut thread size, compressed length, and ABS tone ring configuration before installation. Confirm front left placement on the Toyota Sienna and inspect related seals, hub components, and suspension hardware for wear before reassembly. Use the correct 30 mm socket for the axle nut and follow the vehicle service procedure for torque and final checks.

Quality Assurance

MOOG backs this CV axle assembly with premium materials and rigorous testing to support reliable performance and easier installation. The 14E008L is engineered with problem-solving features that help reduce installation friction and restore proper driveline function.
