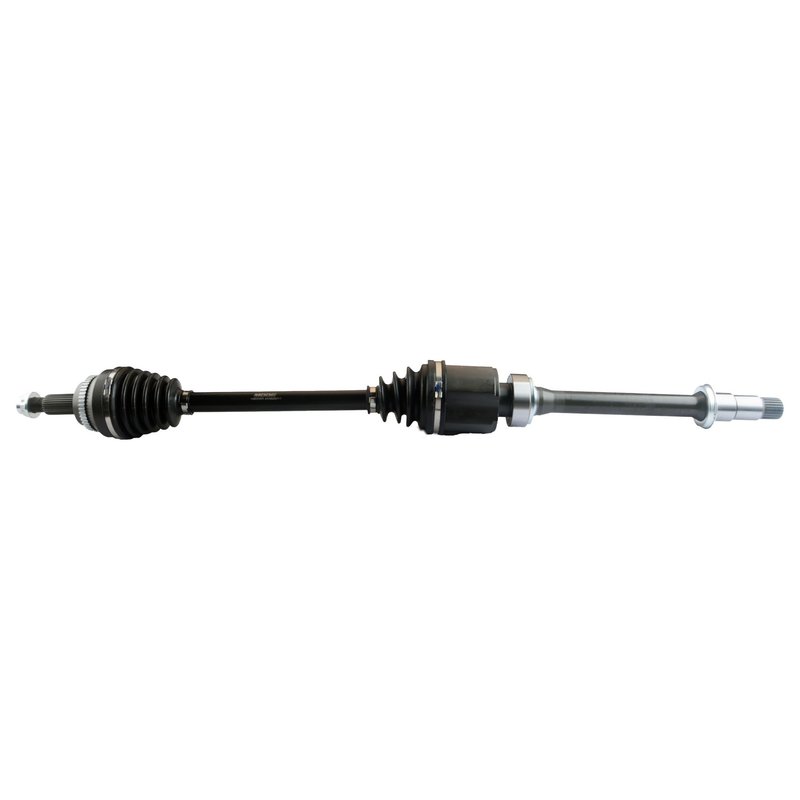

Moog 14E008R CV Axle Assembly - Front Right

OE-Style CV Axle for Toyota Sienna

MOOG 14E008R is a premium CV axle assembly for the front right position on 2011-2016 Toyota Sienna models. Built with tested materials and application-focused design details, it supports smooth driveline operation and straightforward service replacement.

Key Features

• Fits 2011-2016 Toyota Sienna, front right
• Premium-grade CV axle assembly
• Compressed length: 40.98 in. (1041 mm)
• 24-spline inboard and 30-spline outboard configuration
• Includes axle nut with 30 mm hex socket size and M22x1.5 thread
• ABS tone ring included
• Neoprene inboard and outboard boots
• Inboard male joint and conventional outboard joint design

Detailed Description

MOOG 14E008R is engineered as a direct replacement CV axle assembly for the front right side of the Toyota Sienna. The axle uses a 24-spline inboard connection and a 30-spline outboard connection, along with an ABS tone ring and neoprene boots to support proper fitment and driveline function. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

For drivers and technicians servicing a 2011-2016 Toyota Sienna front right CV axle, MOOG 14E008R provides the key dimensions and connection details needed for a precise replacement. The included axle nut and hex socket specification help streamline the repair process when replacing a worn or damaged axle assembly.

What It Helps Fix

• Clicking or popping noises during turns
• Vibration felt through the drivetrain
• Grease leakage from damaged CV boots
• Axle shaft wear from high-mileage use
• ABS-related concerns tied to a damaged tone ring

Installation Notes

Verify spline count, compressed length, and axle nut thread size before installation. Confirm front right placement on the Toyota Sienna and inspect the hub, seals, and surrounding suspension components for wear before fitting the new axle. Use the specified 30 mm hex axle nut socket size during service.

Quality Assurance

MOOG backs this CV axle with premium materials and testing focused on reliable performance and consistent fit. The brand’s problem-solving design approach supports efficient installation and dependable replacement results.
