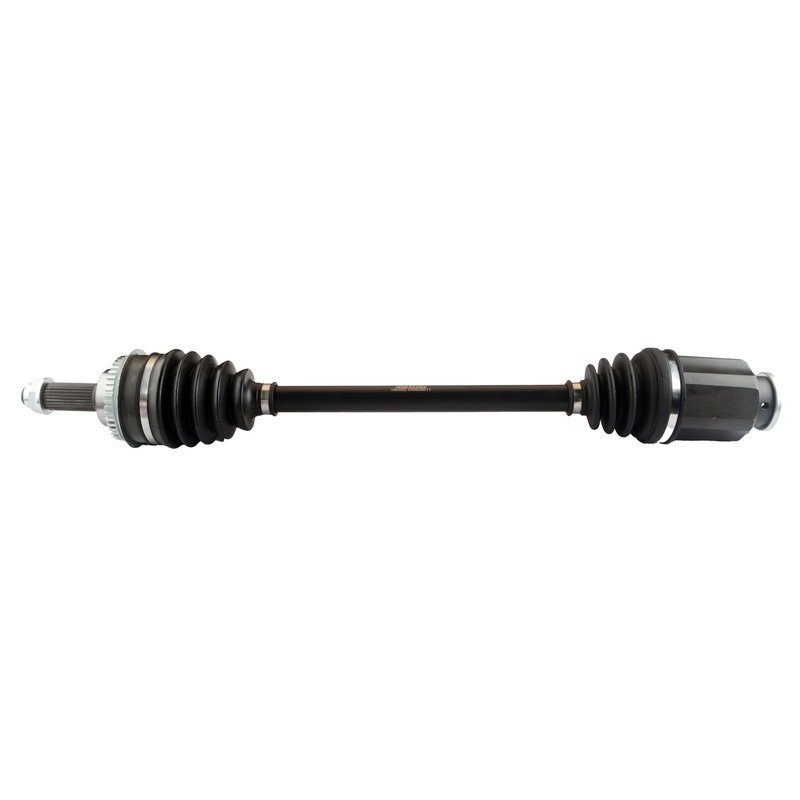

Moog 16E002 CV Axle Assembly - Front
| Brand | Moog 16E002 |
|---|---|
| Position | Front |
| Compressed Length | 27.01 |
| Compressed Length | 686 |
| Inboard Spline Quantity | 25 |
| Outboard Spline Quantity | 27 |
| Axle Nut Included | Yes |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Outboard Joint Type | Conventional |
| ABS Tone Ring Included | Yes |
| Axle Nut Socket Size | 32 |
| Axle Nut Type | Hex |
| Axle Nut Thread Size | M22×1.5 |
| Inboard Boot Material | Neoprene |
| Outboard Boot Material | Neoprene |
| Fits | Subaru · 22 vehicles |
Premium materials. Built for reliable performance and rigorous testing.
Fast installation. Problem-solving design helps make installation hassle-free.
Neoprene boots. Durable boot material helps protect the CV joints.
Cross-references 28021AC200, 28021FC090 and 28321AE02B for the same application. See all 16.
MOOG 16E002 Front CV Axle Assembly
The MOOG 16E002 CV axle assembly is built for front-wheel driveline service on select Subaru applications. It combines premium materials with tested construction to support dependable power transfer, smooth operation, and straightforward installation on Subaru Baja, Impreza, Legacy, Outback, and Forester models.
- Front CV axle assembly for driveline and axle repair
- Premium grade construction for consistent performance
- Compressed length: 27.01 in. / 686 mm
- Inboard spline count: 25; outboard spline count: 27
- Inboard joint type: male; outboard joint type: conventional
- Neoprene inboard and outboard boots
- ABS tone ring included
- Axle nut included; hex nut with M22x1.5 thread and 32 mm socket size
Fitment and Application
Compatible with front applications on select Subaru models. Fits 2003-2006 Subaru Baja, front. Fits 2000-2004 Subaru Impreza, front. Fits 2000-2004 Subaru Legacy, front. Fits 2000-2004 Subaru Outback, front. Fits 2000-2002 Subaru Forester, front.
This part cross-references Subaru OE numbers such as 28021AC200 and 28021FC090 for the same application.
What This CV Axle Helps Address
- Clicking or popping during turns caused by worn CV joints
- Vibration or shudder during acceleration from a failing axle shaft
- Grease leakage from damaged axle boots
- ABS warning concerns related to a damaged tone ring
- Driveline noise from excessive axle wear
Installation Notes and Tips
Verify spline counts, compressed length, axle nut thread size, and ABS tone ring configuration before installation. Confirm front-position fitment on the vehicle and inspect related hub, seal, and suspension components during service. Use the included axle nut and torque fasteners to the vehicle manufacturer’s specifications.
Quality Assurance
MOOG backs this CV axle with premium materials and rigorous testing to support reliable driveline performance. The brand’s problem-solving design approach is aimed at reducing installation friction and helping the part go in cleanly on the correct Subaru application.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Subaru | Baja | Front | — |
| 2005 | Subaru | Baja | Front | — |
| 2004 | Subaru | Baja | Front | — |
| 2004 | Subaru | Impreza | Front | — |
| 2004 | Subaru | Legacy | Front | — |
| 2004 | Subaru | Outback | Front | — |
| 2003 | Subaru | Baja | Front | — |
| 2003 | Subaru | Impreza | Front | — |
| 2003 | Subaru | Legacy | Front | — |
| 2003 | Subaru | Outback | Front | — |
| 2002 | Subaru | Forester | Front | — |
| 2002 | Subaru | Impreza | Front | — |
| 2002 | Subaru | Legacy | Front | — |
| 2002 | Subaru | Outback | Front | — |
| 2001 | Subaru | Forester | Front | — |
| 2001 | Subaru | Impreza | Front | — |
| 2001 | Subaru | Legacy | Front | — |
| 2001 | Subaru | Outback | Front | — |
| 2000 | Subaru | Forester | Front | — |
| 2000 | Subaru | Impreza | Front | — |
| 2000 | Subaru | Legacy | Front | — |
| 2000 | Subaru | Outback | Front | — |
