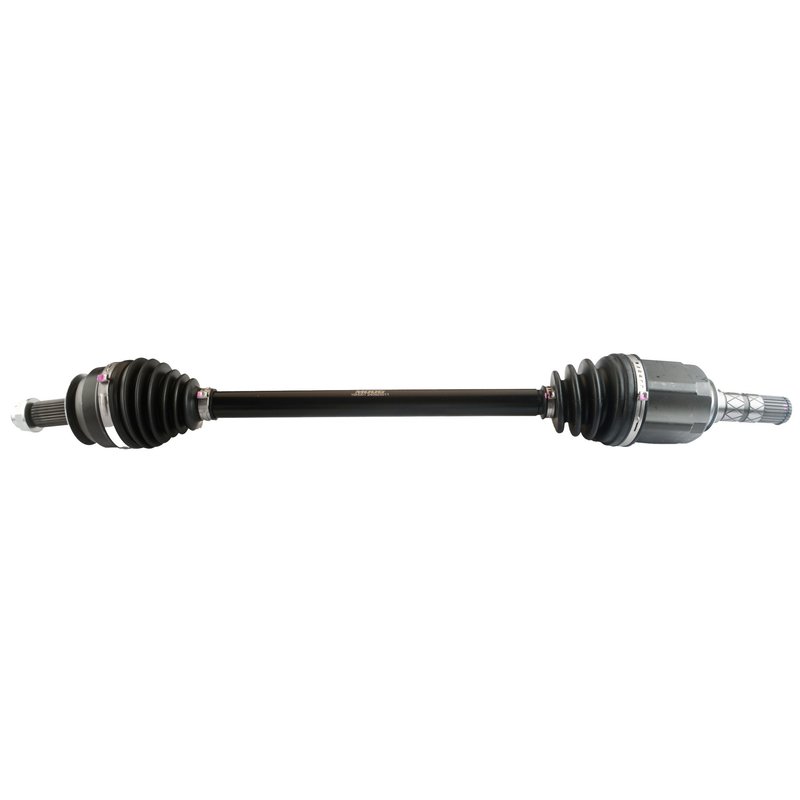

Moog 16H001 CV Axle Assembly - Front

MOOG 16H001 Front CV Axle Assembly

Restore smooth power transfer with the MOOG 16H001 CV axle assembly for front-wheel applications. Built with premium materials and tested for dependable performance, this front axle is a direct-fit solution for Subaru Impreza, Legacy, and Outback models in the listed years.

• Front CV axle assembly for Subaru driveline repair
• Compressed length: 30.71 in. / 780 mm
• Inboard spline quantity: 25; outboard spline quantity: 27
• Inboard joint type: male; outboard joint type: conventional
• Axle nut included with 32 mm hex nut, M22x1.5 thread
• Inboard boot material: neoprene; outboard boot material: thermoplastic
• Grade type: premium
• ABS tone ring not included

Fitment Details

• Fits 2008-2014 Subaru Impreza, front
• Fits 2005-2009 Subaru Legacy, front
• Fits 2005-2009 Subaru Outback, front

Product Overview

The MOOG 16H001 is a front CV axle assembly engineered for Subaru Impreza, Legacy, and Outback applications that require reliable constant-velocity driveline performance. MOOG problem-solving design features support straightforward installation, while the premium construction and tested components help maintain consistent operation in daily driving conditions. If you are replacing a worn Subaru Impreza front axle or servicing a Legacy or Outback front driveline, MOOG 16H001 provides the correct spline counts, joint configuration, and axle nut specification for the listed vehicles.

This part cross-references Subaru OE numbers such as 28321AG00B and 28321FG000 for the same application.

What It Helps Address

• Clicking or popping noises during turns from a worn CV joint
• Vibration felt through the drivetrain under acceleration
• Torn or deteriorated axle boots that can lead to grease loss
• Excessive play in the front axle assembly
• Driveline noise caused by internal CV joint wear

Installation Notes and Tips

Verify front position, spline counts, axle nut thread size, and compressed length before installation. Confirm that the vehicle uses the listed Subaru fitment and inspect the hub, seals, and surrounding suspension components for wear before installing the new axle. The included axle nut is a 32 mm hex style with M22x1.5 thread.

Quality Assurance

MOOG backs this CV axle assembly with premium materials and rigorous testing to support reliable performance and consistent fitment on the specified Subaru applications.
