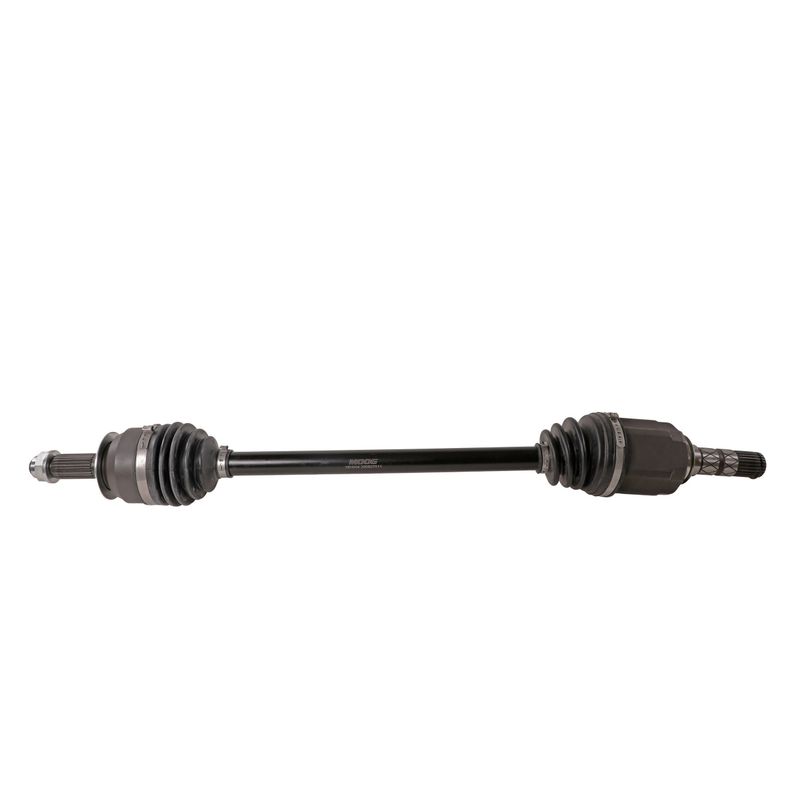

Moog 16H004 CV Axle Assembly - Front
| Brand | Moog 16H004 |
|---|---|
| Position | Front |
| Compressed Length | 31.18 |
| Inboard Spline Quantity | 25 |
| Outboard Spline Quantity | 27 |
| Axle Nut Included | Yes |
| Grade Type | Premium |
| ABS Tone Ring Included | Yes |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22 x 1.5 |
| Fits | Subaru · 5 vehicles |
Premium-grade design. Built with premium materials and tested for dependable driveline performance.
Installation-ready details. Includes an ABS tone ring and axle nut for a cleaner replacement process.
OE-style service fit. Engineered for direct replacement on select driveline applications.
Cross-references 28321FJ020 and 667576 for the same application. See all 2.
Overview
The MOOG 16H004 CV axle assembly is a premium driveline replacement built for direct service on select Subaru applications. It combines premium materials with testing-focused engineering to support dependable power transfer and straightforward installation.
Key Features
- Premium-grade CV axle assembly for driveline service
- Includes an ABS tone ring for vehicles equipped with wheel speed sensing
- Axle nut included with M22 x 1.5 thread size and 32 mm socket size
- 31.18 compressed length with 25 inboard splines and 27 outboard splines
- Fits 2016-2017 Subaru Crosstrek, front; 2014-2015 Subaru XV Crosstrek, front; 2014 Subaru Impreza, front
Detailed Description
MOOG 16H004 is a front CV axle assembly engineered for select Subaru Crosstrek, XV Crosstrek, and Impreza models. The axle is built with premium materials and validated through rigorous testing to deliver reliable driveline performance. Its included ABS tone ring and axle nut support a cleaner replacement process, while the specified spline counts and compressed length help match the original application requirements. This part cross-references Subaru 28321FJ020 and 667576 for the same application.
Common Repair Uses
- Restores smooth torque transfer through a worn or damaged axle
- Addresses clicking or vibration during acceleration and turning
- Replaces a CV axle with damaged splines or compromised joints
- Supports ABS function when the original tone ring is worn or missing
- Helps correct axle nut or fitment issues during driveline repair
Installation Notes
Verify spline count, compressed length, axle nut thread size, and ABS tone ring requirements before installation. Confirm the vehicle is a front application and match the part to the original axle configuration on the Subaru Crosstrek, XV Crosstrek, or Impreza. Follow factory service procedures and torque specifications during installation.
Quality Assurance
MOOG backs this CV axle with premium materials and rigorous testing standards. The brand’s problem-solving design approach is aimed at making replacement work more efficient and consistent.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2017 | Subaru | Crosstrek | — | Front | — |
| 2016 | Subaru | Crosstrek | — | Front | — |
| 2015 | Subaru | XV Crosstrek | — | Front | — |
| 2014 | Subaru | Impreza | WRX | Front | — |
| 2014 | Subaru | XV Crosstrek | — | Front | — |
