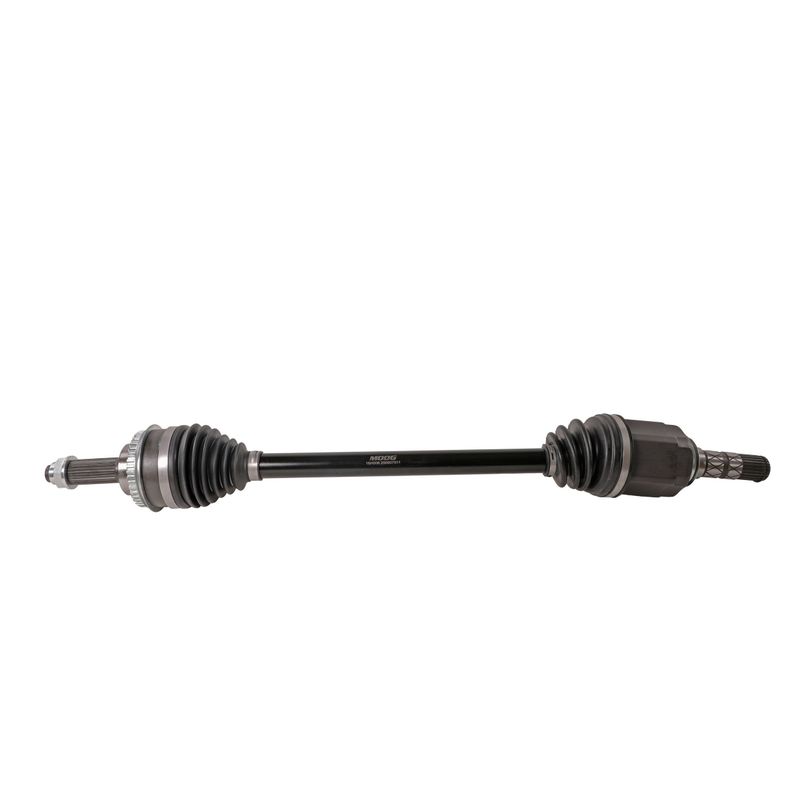

Moog 16H006 CV Axle Assembly - Front

Overview

MOOG 16H006 is a premium CV axle assembly built for front driveline service on select Subaru applications. It combines premium materials, tested construction, and problem-solving design details to support straightforward replacement work.

Compatible with Subaru Forester and Subaru Impreza front axle applications, this part number 16H006 is built for direct-fit service where the original axle has worn splines, damaged joints, or ABS-related issues.

Key Features

• Premium-grade CV axle assembly for driveline repair
• Includes an ABS tone ring with 44 teeth for sensor signal transfer
• Axle nut included with 32 mm socket size and M22 x 1.5 thread
• 25 inboard splines and 27 outboard splines for application-specific fitment
• Compressed length of 30.69 for proper axle geometry

Detailed Description

MOOG 16H006 is engineered as a replacement CV axle assembly for front applications on the Subaru Forester and Subaru Impreza. The design uses premium materials and undergoes rigorous testing to support dependable driveline operation, while MOOG problem-solving features are aimed at making installation more efficient. The included ABS tone ring helps maintain wheel speed sensor input, and the supplied axle nut simplifies the replacement process. If you are replacing a worn Subaru Forester or Subaru Impreza front axle, part number 16H006 provides the fitment and hardware details needed for a focused repair.

This part cross-references Subaru OE numbers 28321FE151 and 28321FE181 for the same application.

What It Helps Fix

• Clicking or popping during turns caused by worn CV joints
• Vibration from a damaged or unbalanced axle shaft
• ABS warning concerns related to a failed tone ring
• Driveline noise from spline wear or internal joint damage
• Axle replacement needs after boot failure or contamination

Installation Notes

Verify spline count, compressed length, axle nut thread size, and ABS tone ring details before installation. Confirm front application fitment on the Subaru Forester or Subaru Impreza and inspect related seals, hubs, and suspension components during service. Part number 16H006 should be matched to the vehicle’s original axle specifications for proper installation.

Quality Assurance

MOOG backs this CV axle with premium materials and rigorous testing for dependable service performance. The brand’s problem-solving engineering approach is reflected in the included fitment-specific details and installation-focused design.
