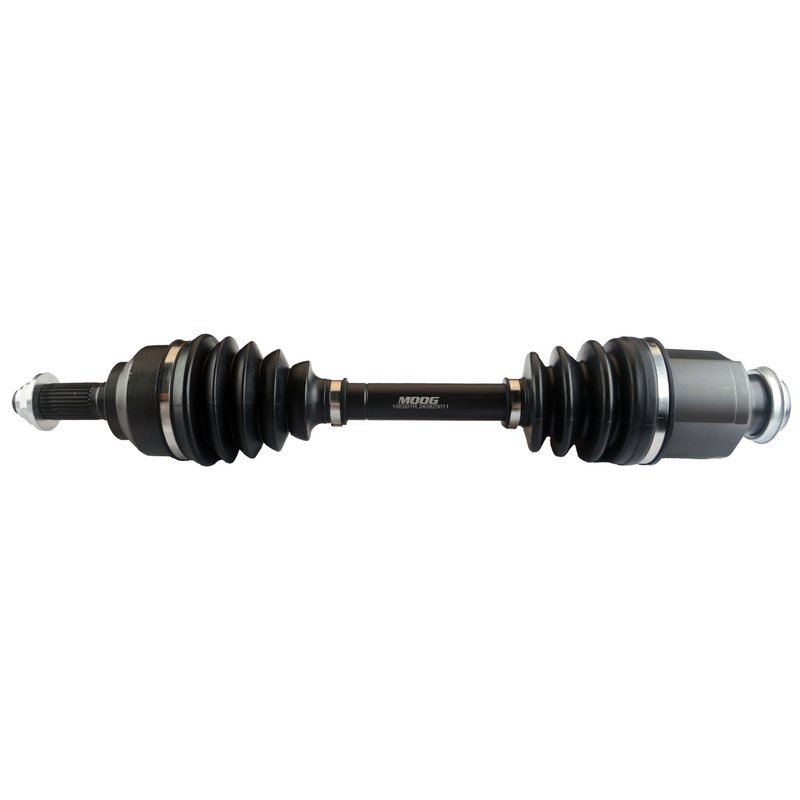

Moog 18E001R CV Axle Assembly - Front Right

MOOG CV Axle Assembly for Mazda Front Right

The MOOG 18E001R CV axle assembly is built for front right applications on select Mazda 3, Mazda 3 Sport, and Mazda 5 models. It uses premium materials and is tested for dependable driveline performance, with design details that support a smoother, more efficient installation.

Key Features

• Part number 18E001R CV axle assembly for the front right position
• Compatible with 2005-2013 Mazda 3, 2009-2013 Mazda 3 Sport, and 2006-2015 Mazda 5 front right applications
• Premium grade construction for driveline service
• Neoprene inboard and outboard boots
• Axle nut included with M22x1.5 hex nut specification
• 26 inboard splines and 28 outboard splines
• Male inboard joint and conventional outboard joint design
• No ABS tone ring included

Detailed Description

MOOG 18E001R is a front right CV axle assembly engineered for Mazda 3, Mazda 3 Sport, and Mazda 5 vehicles within the listed model years. The axle measures 21.73 inches compressed length, or 552 mm, and is configured with a 26-spline inboard side and 28-spline outboard side for the specified applications. Neoprene boot material helps protect the joints, while the included axle nut uses a 32 mm socket size and M22x1.5 thread specification. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Solve

• Clicking or popping noises during turns from worn CV joints
• Vibration or shudder during acceleration
• Grease leakage from damaged axle boots
• Driveline noise caused by a worn front right axle
• Loss of smooth power transfer to the wheel

Installation Notes and Tips

Verify front right fitment against the vehicle year, model, and spline count before installation. Confirm axle nut thread size, socket size, and joint configuration match the original part on the Mazda 3, Mazda 3 Sport, or Mazda 5 application. Inspect related seals, hub components, and suspension hardware during service to help prevent repeat driveline issues.

Quality Assurance

MOOG backs this CV axle with premium materials and rigorous testing to support reliable driveline performance. The brand also incorporates problem-solving design details aimed at making installation more straightforward on the listed Mazda applications.
