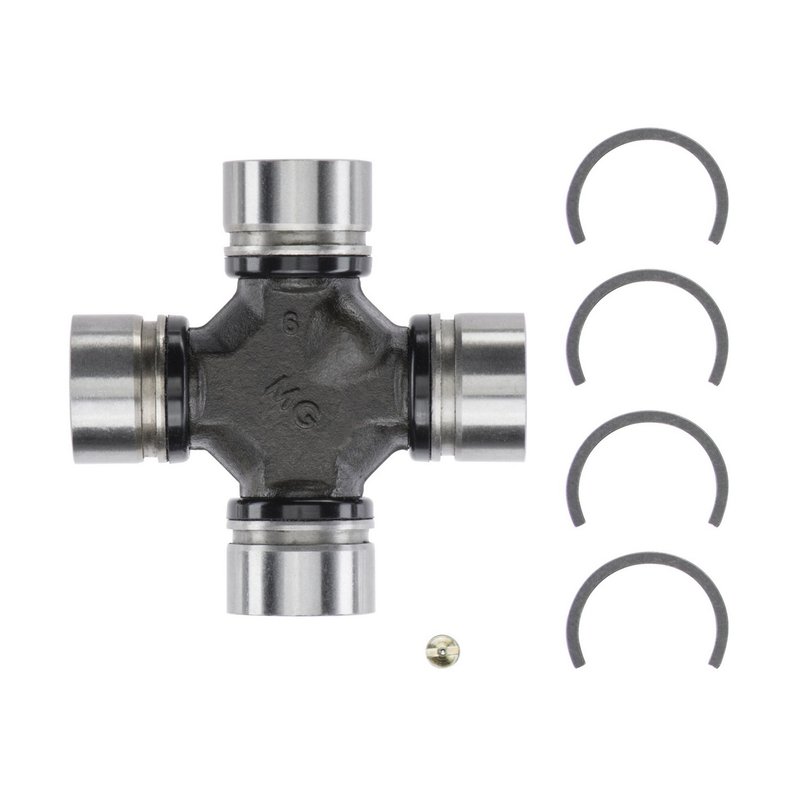

Moog 246 Universal Joint

Reliable Moog Universal Joint for Chrysler, Dodge, Jeep, and Plymouth

The Moog 246 Universal Joint is engineered to provide dependable driveline performance for a wide range of Chrysler, Dodge, Jeep, and Plymouth vehicles. Designed with greaseable, round grooved bearings, this U-joint ensures smooth operation and extended service life in demanding driving conditions.

• Greaseable design with flush-type lube fitting for easy maintenance
• Four grooved round bearings for enhanced durability and smooth rotation
• Precision bearing cap diameters of 1.078 inches (27.3-27.4 mm)
• Length measurements of 2.125 inches (54.0 mm) for both axes, ensuring proper fitment
• OE Series Detroit 7260 compatible for reliable replacement

Technical Specifications and Features

The Moog 246 Universal Joint features four grooved round bearings that provide consistent load distribution and reduce wear. Both bearing caps measure 1.078 inches in diameter, matching OEM specifications for a precise fit. The greaseable design includes a flush-type lube fitting located in the bearing, allowing for straightforward lubrication and maintenance. Length measurements from outside groove to outside groove and inside groove to inside groove plus lock ring thickness are both 2.125 inches (54.0 mm), ensuring compatibility with specified driveline assemblies.

Compatible Vehicles and Applications

This universal joint is compatible with a broad range of Chrysler, Dodge, Jeep, and Plymouth models, including but not limited to the Dodge Ramcharger, Jeep Cherokee, Chrysler Town & Country, Plymouth Sundance, and Dodge Dakota. It is suitable for models such as the Dodge Caravan, Jeep Wagoneer, Chrysler Concorde, and Plymouth Acclaim, among others. The Moog 246 U-joint is designed to meet the demands of these vehicles’ driveline systems, providing reliable torque transfer and vibration reduction.

Common Issues Addressed by Moog 246 Universal Joint

• Eliminates driveline vibrations caused by worn or damaged U-joints
• Prevents premature bearing wear with greaseable fittings
• Restores smooth rotational movement in the drive shaft
• Reduces noise and harshness from driveline components
• Maintains proper alignment and torque transfer in the driveline

Installation Notes and Tips

When installing the Moog 246 Universal Joint, ensure the driveline yoke and shaft are clean and free of debris. Use the grease fitting to lubricate the bearings thoroughly after installation and during regular maintenance intervals. Verify that the bearing caps are seated properly and that the lock rings are securely in place to prevent movement. Proper alignment during installation will help avoid premature wear and driveline vibrations.

Quality Assurance and Warranty

Moog manufactures the 246 Universal Joint to meet or exceed OEM standards, ensuring reliable performance and durability. The part is designed with high-quality materials and precision engineering. While specific warranty details may vary, Moog typically offers a limited warranty covering defects in materials and workmanship, providing confidence in the product’s longevity and reliability.
