OE Quality
60-Day Returns

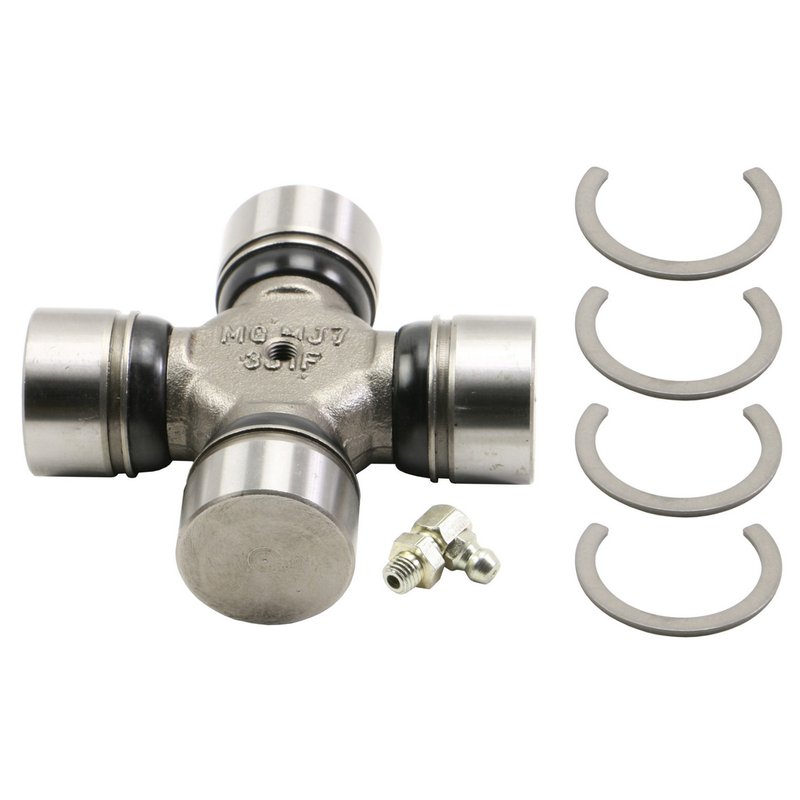

Moog 510 Universal Joint - Rear Driveshaft at Rear Axle or Rear Driveshaft at Transmission
MOOG 510 Universal Joint for Kia Sorento
The MOOG 510 universal joint is a premium driveline replacement for select 2003-2006 Kia Sorento applications. Built with 4 grooved round bearings and a greaseable design, it supports smooth driveline articulation at the rear driveshaft connection points.
Key Features
- Part number: 510
- Premium-grade universal joint for driveline service
- 4 grooved round bearings for bearing support
- Greaseable design for routine maintenance
- Bearing cap diameter: 1.262 in. (32.042 mm)
- Length axis 1 and axis 2: 2.245 in. (57.023 mm)
- Compatible with rear driveshaft at transmission and rear axle locations
Detailed Description
MOOG 510 is a premium universal joint engineered for driveline and axle service on the Kia Sorento. It is listed for 2003-2006 Kia Sorento rear driveshaft at transmission and rear driveshaft at rear axle positions, making it a direct-fit service part for common driveline repair needs. The greaseable construction supports ongoing maintenance, while the grooved round bearing cap design helps provide consistent operation in the driveline assembly. This part cross-references 0W00125060A for the same application.
Common Repair Uses
- Eliminates driveline vibration caused by worn U-joint bearings
- Addresses clunking or clicking from the rear driveshaft area
- Restores smooth power transfer at the transmission or rear axle connection
- Replaces a worn universal joint on a 2003-2006 Kia Sorento
- Supports maintenance on a greaseable driveline joint
Installation Notes and Tips
Verify bearing cap diameter and overall dimensions before installation. Confirm whether the service location is the rear driveshaft at the transmission or the rear driveshaft at the rear axle on your Kia Sorento. Clean the yoke surfaces thoroughly and inspect related driveline components for wear before reassembly.
Quality Assurance
MOOG Premium universal joints are backed by material selection and testing practices focused on dependable driveline performance. The MOOG 510 is built to meet the demands of routine driveline service on Kia Sorento applications.
| Brand | Moog |
|---|---|
| Part Number | 510 |
| Length Axis 1 | 2.245 |
| Length Axis 1 | 57.023 |
| Length Axis 2 | 2.245 |
| Length Axis 2 | 57.023 |
| Bearing Cap Type | 4 grooved round bearings |
| Grade Type | Premium |
| Greaseable | Yes |
| Bearing Cap Axis 2 Diameter | 1.262 |
| Bearing Cap Axis 2 Diameter | 32.042 |
| Bearing Cap Axis 1 Diameter | 1.262 |
| Bearing Cap Axis 1 Diameter | 32.042 |
| Part Description | Universal joint |
This part fits 8 vehicles. Search below:
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2006 | Kia | Sorento | 4WD | Rear Driveshaft at Transmission | High performance greasable universal joint design. |
| 2006 | Kia | Sorento | 4WD | Rear Driveshaft at Rear Axle | High performance greasable universal joint design. |
| 2005 | Kia | Sorento | 4WD | Rear Driveshaft at Transmission | High performance greasable universal joint design. |
| 2005 | Kia | Sorento | 4WD | Rear Driveshaft at Rear Axle | High performance greasable universal joint design. |
| 2004 | Kia | Sorento | 4WD | Rear Driveshaft at Transmission | High performance greasable universal joint design. |
| 2004 | Kia | Sorento | 4WD | Rear Driveshaft at Rear Axle | High performance greasable universal joint design. |
| 2003 | Kia | Sorento | 4WD | Rear Driveshaft at Transmission | High performance greasable universal joint design. |
| 2003 | Kia | Sorento | 4WD | Rear Driveshaft at Rear Axle | High performance greasable universal joint design. |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
