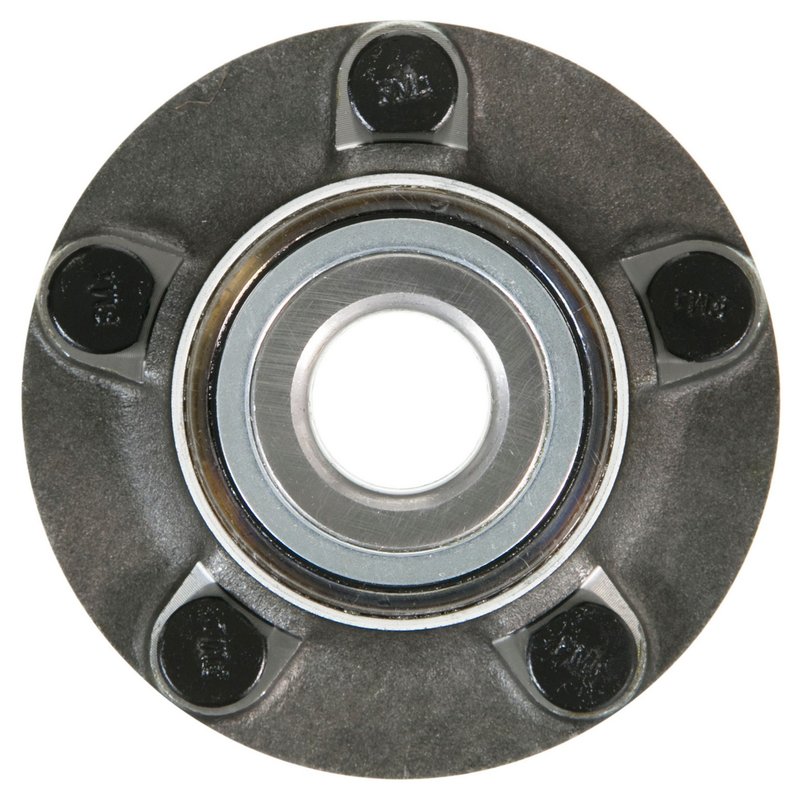

Moog 512029 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Chrysler and Dodge

The MOOG 512029 rear wheel bearing and hub assembly is built for select Chrysler and Dodge rear applications, including the Chrysler 300M, Concorde, Intrepid, LHS, New Yorker, and Dodge Intrepid. It combines hub and bearing service in one unit and includes an ABS sensor for direct replacement on supported vehicles.

Key Features

• Rear wheel bearing and hub assembly for select Chrysler and Dodge vehicles
• Includes anti-lock brake sensor
• 5 wheel studs for hub-to-wheel attachment
• Wheel pilot diameter: 71.400 mm
• Brake pilot diameter: 73.300 mm
• Hub pilot diameter: 3.150 in.
• Flange diameter: 140.300 mm
• Flange offset: 41.100 mm
• Bolt circle diameter: 114.300 mm / 4.500 in.

Detailed Description

MOOG 512029 is a rear wheel bearing and hub assembly engineered for vehicles that use a 5-stud, 4.5-inch bolt circle layout. It is listed for 1993-2004 Chrysler Concorde, 1993-2004 Chrysler Intrepid, 1993-2004 Dodge Intrepid, 1994-1997 Chrysler LHS, 1994-1996 Chrysler New Yorker, and 1999-2004 Chrysler 300M rear applications. This part cross-references SKF BR930189 for the same application. MOOG continues to refine its hub assemblies with design updates that improve service life and make replacement easier.

What This Part Helps Address

• Wheel bearing noise from a worn rear hub assembly
• Excessive play or looseness at the rear wheel
• ABS warning light caused by a failed hub-mounted sensor
• Uneven wheel rotation or rough bearing operation
• Rear-end vibration related to hub wear

Installation Notes and Tips

Verify rear fitment by year, make, and model before ordering. Confirm the 5-wheel-stud pattern, 114.300 mm bolt circle, and ABS sensor configuration match the original part on the vehicle. Clean the mounting surface thoroughly and inspect related brake and suspension components during replacement. For Chrysler 300M rear hub replacement, Chrysler Concorde rear wheel bearing service, or Dodge Intrepid rear hub assembly replacement, matching the OE-style dimensions is important for proper fit.

Quality Assurance

MOOG is known in the chassis and driveline market for ongoing product design improvements that focus on durability and easier installation. Part number 512029 is built as a direct-fit hub assembly for the listed rear applications and is supported by MOOG’s established replacement-part engineering approach.
