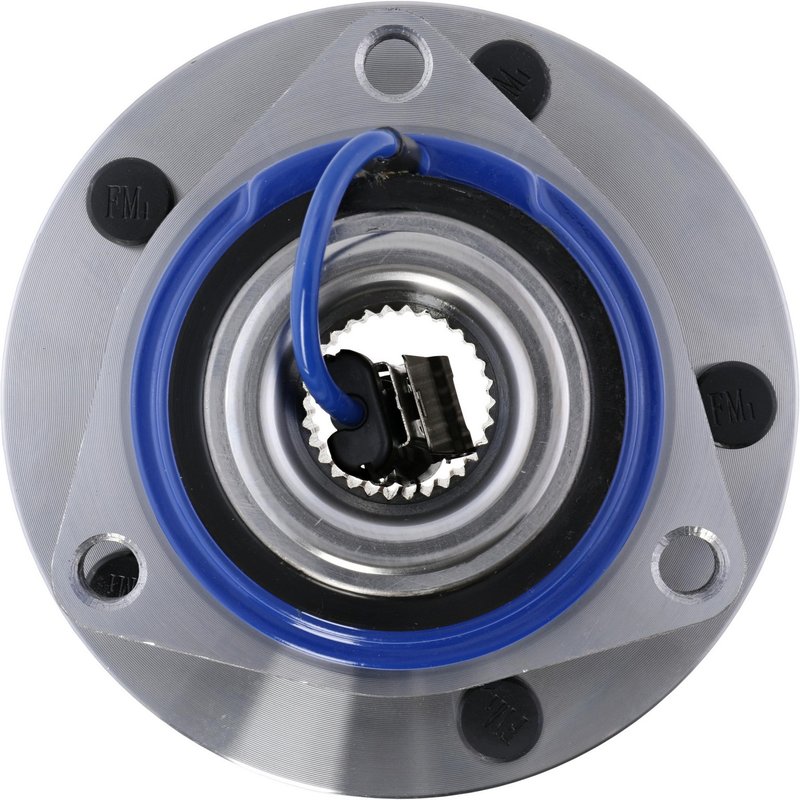

Moog 512153 Wheel Bearing and Hub Assembly - Rear
| Brand | Moog 512153 |
|---|---|
| Position | Rear |
| Anti Lock Brake Sensor Included | Yes |
| Bolt Circle Diameter | 4.750 |
| Bolt Circle Diameter | 120.700 |
| Brake Pilot Diameter | 70.600 |
| Flange Bolt Hole Quantity | 3 |
| Flange Diameter | 145.500 |
| Flange Offset | 42.100 |
| Flange Shape | TRIANGULAR |
| Hub Pilot Diameter | 91.300 |
| Spline Quantity | 30 |
| Wheel Pilot Diameter | 70.100 |
| Wheel Stud Quantity | 5 |
| Fits | Cadillac and Chevrolet · 21 vehicles |
Fast, hassle-free installation. MOOG problem-solving innovations simplify the install process.
Reliable performance. Backed by superior materials and rigorous testing.
Wheel bearing and hub assembly. Combines the bearing and hub in one service part.
Cross-references Centric Parts 402.62017E, Mevotech Supreme H512153 and MOOG Hub Assemblies 512153 for the same application. See all 18.
Rear Hub Assembly for Corvette and XLR
MOOG 512153 is a rear wheel bearing and hub assembly built for 1997-2008 Chevrolet Corvette and 2004-2008 Cadillac XLR applications. It combines OE-style fitment details with MOOG materials and testing standards to support consistent wheel-end performance and straightforward service work.
Key Features
- Rear wheel bearing and hub assembly for Chevrolet Corvette and Cadillac XLR
- Includes an ABS sensor for vehicles that use integrated wheel speed sensing
- 30-spline hub design with a triangular flange shape
- 5 wheel studs and 3 flange bolt holes for the specified application
- Hub pilot diameter: 91.300 mm
- Wheel pilot diameter: 70.100 mm
- Brake pilot diameter: 70.600 mm
- Bolt circle diameter: 120.700 mm / 4.750 in
- Flange offset: 42.100 mm and flange diameter: 145.500 mm
Product Details
MOOG 512153 is engineered as a rear hub assembly for the Chevrolet Corvette and Cadillac XLR, with dimensions and mounting geometry matched to the listed applications. The integrated ABS sensor supports wheel speed signal function, while the hub and flange measurements help maintain proper alignment at the wheel end. MOOG’s problem-solving design approach focuses on reducing installation friction and supporting a clean service fit on the rear suspension.
This part cross-references SKF BR930198 for the same application.
Common Problems This Part Can Address
- Rear wheel bearing noise or roughness
- ABS warning light caused by a failed hub sensor assembly
- Wheel play or looseness at the rear hub
- Uneven wheel-end rotation from worn bearing components
- Service issues tied to incorrect hub dimensions or bolt pattern mismatch
Installation Notes
Verify rear fitment by year, make, and model before installation. Confirm the ABS connector routing and sensor interface match the original setup on 1997-2008 Chevrolet Corvette and 2004-2008 Cadillac XLR rear applications. Check flange bolt pattern, hub pilot diameter, and brake pilot diameter against the removed part to ensure proper seating and alignment. Clean the mounting surface and inspect related wheel-end components before reassembly.
Quality Assurance
MOOG backs this hub assembly with superior materials and rigorous testing to support reliable service life and consistent performance in the specified rear applications.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2008 | Cadillac | XLR | V | Rear | Enhanced Hub Assembly with Grime Defense Outboard Seal, Primary Inboard and Outboard Seals, and molded grommet for ABS cable. |
| 2008 | Cadillac | XLR | Base | Rear | Enhanced Hub Assembly with Grime Defense Outboard Seal, Primary Inboard and Outboard Seals, and molded grommet for ABS cable. |
| 2008 | Cadillac | XLR | Platinum | Rear | Enhanced Hub Assembly with Grime Defense Outboard Seal, Primary Inboard and Outboard Seals, and molded grommet for ABS cable. |
| 2008 | Chevrolet | Corvette | — | Rear | Enhanced Hub Assembly with Grime Defense Outboard Seal, Primary Inboard and Outboard Seals, and molded grommet for ABS cable. |
| 2007 | Cadillac | XLR | V | Rear | Enhanced Hub Assembly with Grime Defense Outboard Seal, Primary Inboard and Outboard Seals, and molded grommet for ABS cable. |
| 2007 | Cadillac | XLR | Base | Rear | Enhanced Hub Assembly with Grime Defense Outboard Seal, Primary Inboard and Outboard Seals, and molded grommet for ABS cable. |
| 2007 | Chevrolet | Corvette | — | Rear | Enhanced Hub Assembly with Grime Defense Outboard Seal, Primary Inboard and Outboard Seals, and molded grommet for ABS cable. |
| 2006 | Cadillac | XLR | V | Rear | Enhanced Hub Assembly with Grime Defense Outboard Seal, Primary Inboard and Outboard Seals, and molded grommet for ABS cable. |
| 2006 | Cadillac | XLR | Base | Rear | Enhanced Hub Assembly with Grime Defense Outboard Seal, Primary Inboard and Outboard Seals, and molded grommet for ABS cable. |
| 2006 | Chevrolet | Corvette | — | Rear | Enhanced Hub Assembly with Grime Defense Outboard Seal, Primary Inboard and Outboard Seals, and molded grommet for ABS cable. |
| 2005 | Cadillac | XLR | — | Rear | Enhanced Hub Assembly with Grime Defense Outboard Seal, Primary Inboard and Outboard Seals, and molded grommet for ABS cable. |
| 2005 | Chevrolet | Corvette | — | Rear | Enhanced Hub Assembly with Grime Defense Outboard Seal, Primary Inboard and Outboard Seals, and molded grommet for ABS cable. |
| 2004 | Cadillac | XLR | — | Rear | Enhanced Hub Assembly with Grime Defense Outboard Seal, Primary Inboard and Outboard Seals, and molded grommet for ABS cable. |
| 2004 | Chevrolet | Corvette | — | Rear | Enhanced Hub Assembly with Grime Defense Outboard Seal, Primary Inboard and Outboard Seals, and molded grommet for ABS cable. |
| 2003 | Chevrolet | Corvette | — | Rear | Enhanced Hub Assembly with Grime Defense Outboard Seal, Primary Inboard and Outboard Seals, and molded grommet for ABS cable. |
| 2002 | Chevrolet | Corvette | — | Rear | Enhanced Hub Assembly with Grime Defense Outboard Seal, Primary Inboard and Outboard Seals, and molded grommet for ABS cable. |
| 2001 | Chevrolet | Corvette | — | Rear | Enhanced Hub Assembly with Grime Defense Outboard Seal, Primary Inboard and Outboard Seals, and molded grommet for ABS cable. |
| 2000 | Chevrolet | Corvette | — | Rear | Enhanced Hub Assembly with Grime Defense Outboard Seal, Primary Inboard and Outboard Seals, and molded grommet for ABS cable. |
| 1999 | Chevrolet | Corvette | — | Rear | Enhanced Hub Assembly with Grime Defense Outboard Seal, Primary Inboard and Outboard Seals, and molded grommet for ABS cable. |
| 1998 | Chevrolet | Corvette | — | Rear | Enhanced Hub Assembly with Grime Defense Outboard Seal, Primary Inboard and Outboard Seals, and molded grommet for ABS cable. |
| 1997 | Chevrolet | Corvette | — | Rear | Enhanced Hub Assembly with Grime Defense Outboard Seal, Primary Inboard and Outboard Seals, and molded grommet for ABS cable. |
