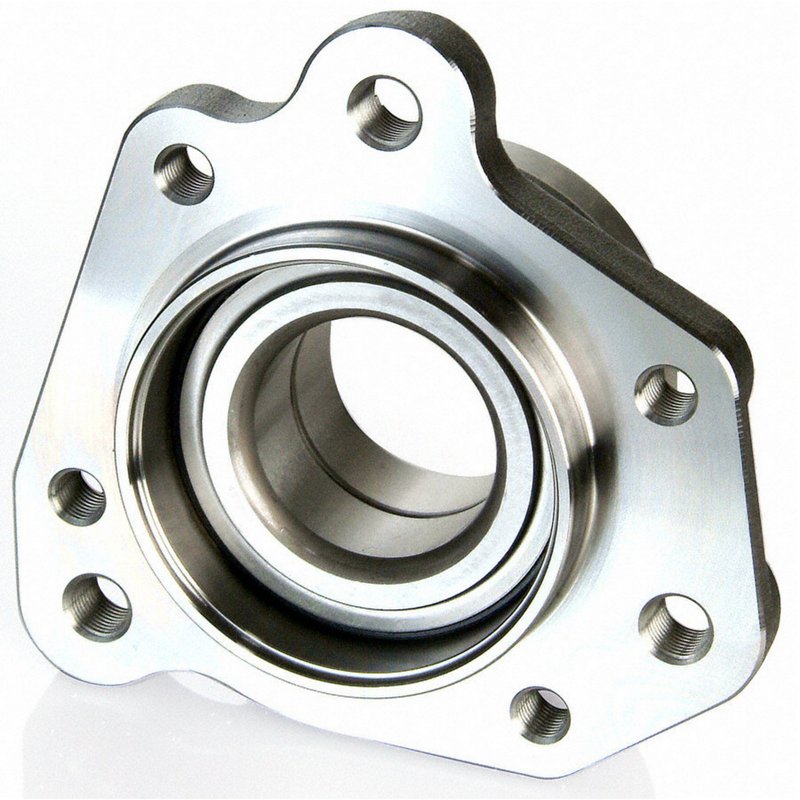

Moog 512166 Wheel Bearing and Hub Assembly - Rear Left

Honda CR-V Rear Left Hub Assembly

Moog 512166 is a wheel bearing and hub assembly for the rear left position on select 1997-2001 Honda CR-V models. Built for direct replacement service, it combines hub and bearing functions in one assembly to support smooth wheel rotation and consistent wheel mounting.

Key Features

• Wheel bearing and hub assembly for rear left installation
• Fits 1997-2001 Honda CR-V, rear left
• 3 flange bolt holes for mounting
• Wheel pilot diameter: 79.600 mm
• Brake pilot diameter: 84.000 mm
• Hub pilot diameter: 80.600 mm
• Flange offset: 55.000 mm
• ABS sensor not included

Detailed Description

Moog 512166 is engineered as a replacement wheel bearing and hub assembly for the rear left side of the Honda CR-V. The assembly dimensions are important for proper wheel, brake, and hub alignment, including the wheel pilot diameter, brake pilot diameter, hub pilot diameter, and flange offset. Moog’s design approach focuses on product-life improvements and easier installation and replacement, which helps support efficient service work on the 1997-2001 Honda CR-V.

This part cross-references SKF BR930444 and Raybestos Brakes 712166 for the same application. It also matches OE-style references commonly searched as 42201-S10-A01 and 42210-S10-A00. Search terms such as rear left wheel bearing and hub assembly for 1997-2001 Honda CR-V and Moog 512166 hub assembly help identify the correct replacement quickly.

What It Helps Fix

• Wheel bearing noise from the rear left hub area
• Excessive play or looseness at the wheel end
• Uneven wheel mounting caused by hub wear
• Brake and wheel alignment issues related to hub dimensions
• Service delays when replacing a worn rear hub assembly on a Honda CR-V

Installation Notes

Verify rear left fitment before installation on 1997-2001 Honda CR-V models. Confirm the flange bolt hole count, pilot diameters, and flange offset against the original part to ensure proper fit. Because the ABS sensor is not included, reuse or source the sensor separately if your vehicle configuration requires one.

Quality Assurance

Moog is known for chassis and driveline replacement parts that incorporate design updates aimed at extending service life and simplifying replacement. Part number 512166 is built to meet the dimensional requirements of the listed Honda CR-V applications and support dependable hub service.
