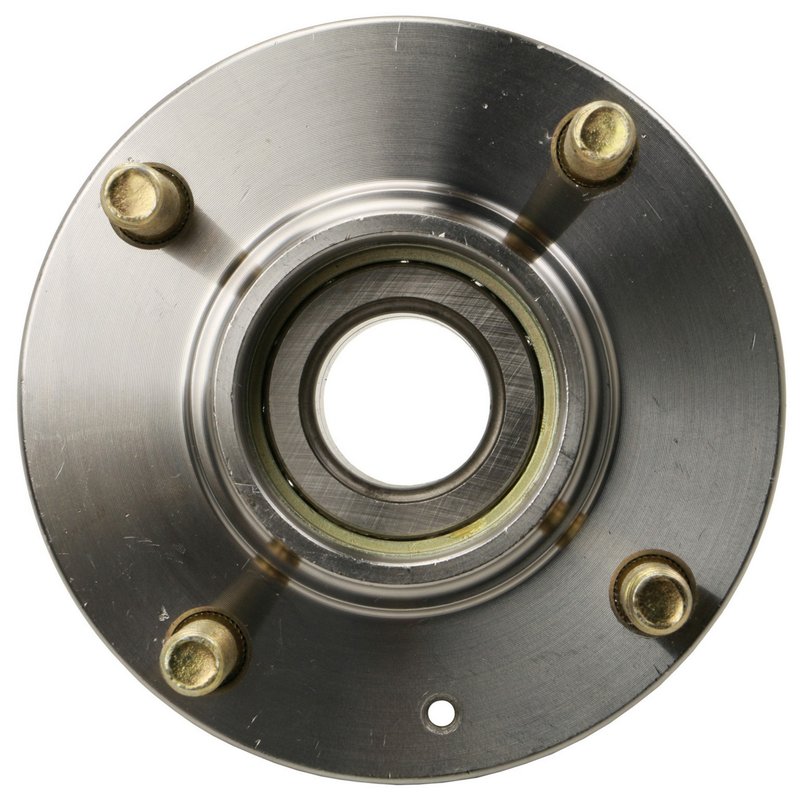

Moog 512194 Wheel Bearing and Hub Assembly - Rear
| Brand | Moog 512194 |
|---|---|
| Position | Rear |
| Anti Lock Brake Sensor Included | No |
| Bolt Circle Diameter | 4.500 |
| Bolt Circle Diameter | 114.300 |
| Brake Pilot Diameter | 76.000 |
| Flange Diameter | 139.000 |
| Flange Offset | 50.500 |
| Hub Pilot Diameter | 74.000 |
| Wheel Pilot Diameter | 67.000 |
| Wheel Stud Quantity | 4 |
| Fits | Kia and Hyundai · 16 vehicles |
Simplified installation. Design enhancements help make replacement easier.
Wheel bearing and hub assembly. A complete hub solution for driveline and axle applications.
MOOG Problem Solver. Known for design improvements that extend product life.
Cross-references Beck/Arnley 051-6133, Beck/Arnley 051-6158 and Centric Parts 405.51001E for the same application. See all 35.
Rear Wheel Bearing Hub Assembly for Hyundai and Kia
Moog 512194 is a rear wheel bearing and hub assembly built for select Hyundai Elantra and Kia Spectra applications. It is specified with the correct pilot diameters, bolt pattern, and flange dimensions for a direct-fit replacement on covered vehicles.
Key Features
- Rear wheel bearing and hub assembly for 2001-2006 Hyundai Elantra, rear
- Rear wheel bearing and hub assembly for 2005-2009 Kia Spectra, rear
- Rear wheel bearing and hub assembly for 2005-2009 Kia Spectra5, rear
- Wheel stud quantity: 4
- Bolt circle diameter: 114.300 mm / 4.500 in.
- Wheel pilot diameter: 67.000 mm
- Brake pilot diameter: 76.000 mm
- Hub pilot diameter: 74.000 mm
- Flange diameter: 139.000 mm
- Flange offset: 50.500 mm
- Anti-lock brake sensor included: No
Detailed Description
Moog 512194 is a rear hub assembly engineered for precise fitment on select Hyundai Elantra, Kia Spectra, and Kia Spectra5 models. The assembly uses the listed pilot diameters and 4.5-inch bolt circle to match the original mounting geometry, helping maintain proper wheel and brake interface on the rear axle. MOOG focuses on design updates that improve service life and make replacement easier, which is why this part is a practical OE-style choice for driveline and axle service.
This part cross-references Timken HA590188 and SKF BR930596K for the same application. Moog 512194 is also referenced under MOOG Hub Assemblies 512194 for catalog matching.
What It Is Used For
- Replacing a worn rear wheel bearing and hub assembly on a 2001-2006 Hyundai Elantra
- Replacing a rear hub assembly on a 2005-2009 Kia Spectra
- Replacing a rear hub assembly on a 2005-2009 Kia Spectra5
- Addressing rear wheel play, noise, or rough rotation caused by hub wear
- Restoring correct wheel mounting and brake pilot alignment
Installation Notes and Tips
Verify rear fitment by year, make, and model before installation. Confirm the 4-lug bolt pattern, pilot diameters, and flange dimensions against the original part to ensure proper alignment. Because the anti-lock brake sensor is not included, reuse or transfer the vehicle’s existing sensor setup where applicable. Always inspect the mating surfaces, axle area, and brake components during replacement.
Quality Assurance
MOOG is known in chassis and steering service for ongoing design improvements that focus on longer part life and easier installation. Part number 512194 is built to meet the dimensional requirements of the listed Hyundai and Kia rear applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009 | Kia | Spectra | Rear | — |
| 2009 | Kia | Spectra5 | Rear | — |
| 2008 | Kia | Spectra | Rear | — |
| 2008 | Kia | Spectra5 | Rear | — |
| 2007 | Kia | Spectra | Rear | — |
| 2007 | Kia | Spectra5 | Rear | — |
| 2006 | Hyundai | Elantra | Rear | — |
| 2006 | Kia | Spectra | Rear | — |
| 2006 | Kia | Spectra5 | Rear | — |
| 2005 | Hyundai | Elantra | Rear | — |
| 2005 | Kia | Spectra | Rear | — |
| 2005 | Kia | Spectra5 | Rear | — |
| 2004 | Hyundai | Elantra | Rear | — |
| 2003 | Hyundai | Elantra | Rear | — |
| 2002 | Hyundai | Elantra | Rear | — |
| 2001 | Hyundai | Elantra | Rear | — |
| No rows match your filter. | ||||
