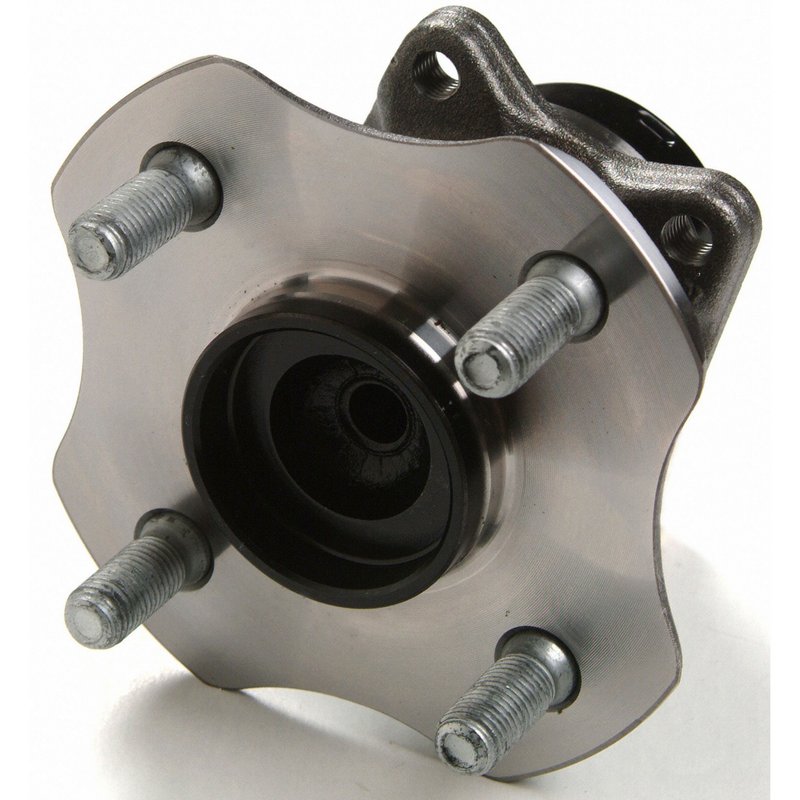

Moog 512209 Wheel Bearing and Hub Assembly - Rear
| Brand | Moog 512209 |
|---|---|
| Position | Rear |
| Anti Lock Brake Sensor Included | Yes |
| Bolt Circle Diameter | 3.940 |
| Bolt Circle Diameter | 100.000 |
| Brake Pilot Diameter | 55.000 |
| Flange Bolt Hole Quantity | 4 |
| Flange Diameter | 135.000 |
| Flange Offset | 54.500 |
| Flange Shape | OFFSET TRAPEZIOD |
| Hub Pilot Diameter | 67.000 |
| Wheel Pilot Diameter | 54.000 |
| Wheel Stud Quantity | 4 |
| Fits | Scion and Toyota · 12 vehicles |
Simplifies installation. Design enhancements help make replacement easier and faster.
Wheel bearing and hub assembly. A complete hub solution for driveline and axle service.
ABS sensor included. Built with an integrated anti-lock brake sensor.
Cross-references Beck/Arnley 051-6091, Centric Parts 407.44005E and GMB 799-0124 for the same application. See all 19.
Rear Wheel Bearing Hub Assembly for Toyota and Scion
Moog 512209 is a rear wheel bearing and hub assembly built for select Toyota and Scion applications. It combines hub, bearing, and ABS sensor integration in one service part for a direct-fit repair on the rear axle.
Key Features
- Rear wheel bearing and hub assembly for 2000-2005 Toyota Echo, rear
- Rear wheel bearing and hub assembly for 2004-2006 Scion xA, rear
- Rear wheel bearing and hub assembly for 2004-2006 Scion xB, rear
- Anti-lock brake sensor included
- 4 flange bolt holes and 4 wheel studs
- Offset trapezoid flange shape with 135.000 flange diameter
- Bolt circle diameter: 100.000 / 3.940
- Wheel pilot diameter: 54.000; brake pilot diameter: 55.000; hub pilot diameter: 67.000
- Flange offset: 54.500
Detailed Description
Moog 512209 is a rear hub assembly engineered for the Toyota Echo and Scion xA/xB rear position applications listed above. The assembly includes an ABS sensor and uses the specified hub and pilot dimensions to support proper wheel mounting and brake interface alignment. Moog focuses on design updates that improve service life and make replacement easier, which is useful when replacing a worn rear wheel bearing hub on a Toyota Echo or Scion xB.
This part cross-references SKF BR930358 and Timken HA594245 for the same application.
What This Part Helps Fix
- Rear wheel noise caused by a worn hub bearing
- ABS warning light concerns related to a failing wheel speed sensor circuit
- Wheel looseness or play at the rear hub
- Uneven rotor or wheel mounting issues from hub wear
- Vibration or rough rotation from a deteriorated bearing assembly
Installation Notes and Tips
Verify rear-position fitment by year, make, and model before installation. Confirm the bolt circle, flange dimensions, and pilot diameters match the original hub assembly on the vehicle. Inspect the mating surfaces, axle area, and brake components during replacement, and follow the vehicle service procedure for ABS sensor connection and torque specifications.
Quality Assurance
Moog is known for chassis and driveline service parts that incorporate design improvements aimed at extending product life and simplifying replacement. Part number 512209 is built to meet the fitment and dimensional requirements listed for the Toyota Echo and Scion xA/xB rear hub application.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Scion | xA | Rear | — |
| 2006 | Scion | xB | Rear | — |
| 2005 | Scion | xA | Rear | — |
| 2005 | Scion | xB | Rear | — |
| 2005 | Toyota | Echo | Rear | — |
| 2004 | Scion | xA | Rear | — |
| 2004 | Scion | xB | Rear | — |
| 2004 | Toyota | Echo | Rear | — |
| 2003 | Toyota | Echo | Rear | — |
| 2002 | Toyota | Echo | Rear | — |
| 2001 | Toyota | Echo | Rear | — |
| 2000 | Toyota | Echo | Rear | — |
