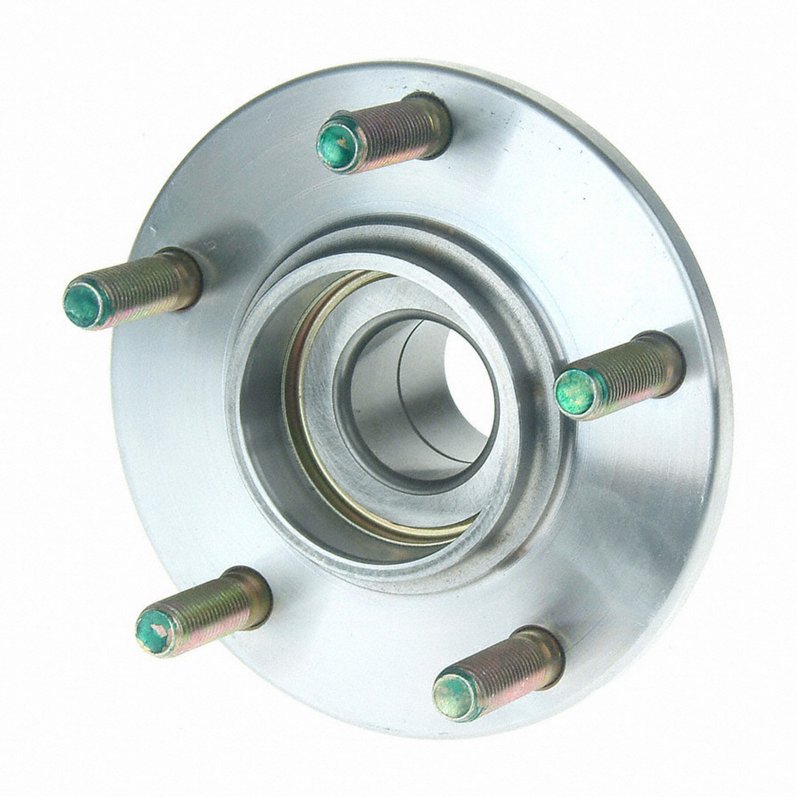

Moog 512267 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Kia and Hyundai

The MOOG 512267 wheel bearing and hub assembly is a rear replacement part built for select Kia Sportage and Hyundai Tucson applications. It combines the hub, bearing, and ABS sensor in one assembly for a direct-fit service solution on the rear axle.

For 2005-2010 Kia Sportage rear and 2005, 2009 Hyundai Tucson rear applications, this MOOG hub assembly is built around key dimensional specs that support proper wheel mounting and brake interface. The 5-stud design, 114.3 mm bolt circle, and integrated ABS sensor make it a practical choice for restoring rear wheel support and sensor function.

• Part number: MOOG 512267
• Rear wheel bearing and hub assembly
• Integrated anti-lock brake sensor included
• 5 wheel studs
• Bolt circle diameter: 114.300 mm
• Wheel pilot diameter: 67.000 mm
• Brake pilot diameter: 76.000 mm
• Hub pilot diameter: 76.500 mm
• Flange diameter: 139.000 mm
• Flange offset: 53.500 mm

Detailed Product Overview

MOOG 512267 is a rear hub assembly engineered for select Kia Sportage and Hyundai Tucson vehicles. MOOG is known for making design updates that extend service life and simplify replacement, and this assembly reflects that approach with a service-ready hub and bearing unit that supports rear wheel rotation and ABS signal needs in one part number.

This part cross-references SKF BR930320 and Beck/Arnley 051-6126 for the same application. It is a direct replacement option for drivers searching for a rear wheel bearing hub assembly for 2005-2010 Kia Sportage or 2005 and 2009 Hyundai Tucson rear applications.

Common Issues This Part Can Address

• Rear wheel bearing noise or rough rotation
• ABS warning light caused by a failed hub sensor
• Wheel looseness from hub wear
• Uneven rear wheel support at the hub assembly
• Brake and wheel mounting issues related to hub wear

Installation Notes and Tips

Verify rear fitment by year, make, model, and position before installation. Confirm the 5-stud pattern, 114.3 mm bolt circle, and pilot dimensions against the original part to ensure proper wheel and brake fitment. Because the ABS sensor is included, inspect the connector and wiring path during replacement and clear any stored ABS codes after installation if required.

Quality Assurance

MOOG is a chassis-focused brand recognized for ongoing design improvements that help simplify replacement and support long service life. MOOG 512267 is built as a rear wheel bearing and hub assembly for confirmed Kia Sportage and Hyundai Tucson applications, with integrated ABS sensor provision for a complete rear hub service part.
