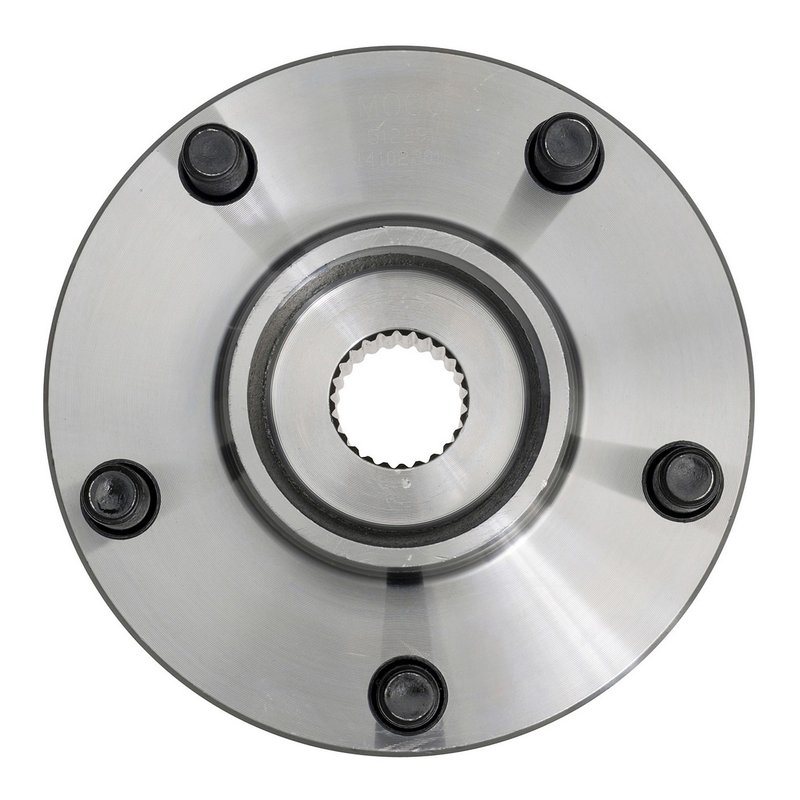

Moog 512291 Wheel Bearing and Hub Assembly - Rear
| Brand | Moog 512291 |
|---|---|
| Position | Rear |
| Anti Lock Brake Sensor Included | No |
| Bolt Circle Diameter | 4.500 |
| Bolt Circle Diameter | 114.300 |
| Brake Pilot Diameter | 68.900 |
| Flange Bolt Hole Quantity | 4 |
| Flange Diameter | 138.000 |
| Flange Offset | 59.200 |
| Flange Shape | MODIFIED |
| Hub Pilot Diameter | 88.000 |
| Spline Quantity | 55 |
| Wheel Pilot Diameter | 51.000 |
| Wheel Stud Quantity | 5 |
| Fits | Mitsubishi · 7 vehicles |
Simplifies installation. Design enhancements help make replacement easier and faster.
Wheel bearing and hub assembly. A complete hub solution for driveline and axle service.
MOOG Problem Solver. Built around ongoing design improvements that extend product life.
Cross-references Beck/Arnley 051-6107, Centric Parts 400.46002E and Centric Parts 406.46003E for the same application. See all 13.
Moog 512291 Rear Wheel Bearing Hub Assembly
The Moog 512291 wheel bearing and hub assembly is built for rear service on select Mitsubishi Endeavor models. It combines OE-style fitment details with design updates that help simplify replacement and support long service life.
Key Features
- Rear wheel bearing and hub assembly for Mitsubishi Endeavor applications
- 55-spline hub design
- 5 wheel studs with a 4-bolt flange pattern
- Modified flange shape with 138.000 mm flange diameter
- 88.000 mm hub pilot diameter and 51.000 mm wheel pilot diameter
- 68.900 mm brake pilot diameter
- Anti-lock brake sensor not included
- Moog 512291 cross-references SKF BR930414 and Timken HA590120
Detailed Description
Moog 512291 is a rear wheel bearing and hub assembly engineered for 2004-2008 Mitsubishi Endeavor and 2010-2011 Mitsubishi Endeavor rear applications. The hub uses a 55-spline configuration, a 114.300 mm bolt circle diameter, and a modified flange profile to match the specified mounting geometry. Moog continues to refine its chassis components with design changes that improve durability and make replacement easier, which is why this part is a practical choice when servicing a worn rear hub on a Mitsubishi Endeavor.
This part cross-references SKF BR930414 and Timken HA590120 for the same application. If you are searching for a rear wheel bearing hub assembly for Mitsubishi Endeavor 2004-2008 or Mitsubishi Endeavor 2010-2011, Moog 512291 provides the fitment and dimensional details needed for a direct repair.
What It Helps Fix
- Rear wheel bearing noise or growling from a worn hub assembly
- Wheel looseness caused by bearing wear
- Vibration or roughness from a failing rear hub
- Improper wheel mounting caused by damaged hub surfaces
- Service issues on Mitsubishi Endeavor rear wheel bearing replacement jobs
Installation Notes and Tips
Verify rear position fitment before installation and confirm the 55-spline, bolt circle, flange diameter, and pilot dimensions against the original part. The anti-lock brake sensor is not included, so reuse or transfer the vehicle’s existing sensor setup as required by the application. Always inspect the mating surfaces, axle interface, and brake components during replacement to help ensure proper seating and operation.
Quality Assurance
Moog is known for ongoing design improvements that extend product life and simplify installation and replacement. The 512291 is built as a service replacement hub assembly for confirmed Mitsubishi Endeavor rear applications and is supported by Moog’s chassis-component engineering focus.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2011 | Mitsubishi | Endeavor | AWD | Rear | — |
| 2010 | Mitsubishi | Endeavor | AWD | Rear | — |
| 2008 | Mitsubishi | Endeavor | AWD | Rear | — |
| 2007 | Mitsubishi | Endeavor | AWD | Rear | — |
| 2006 | Mitsubishi | Endeavor | AWD | Rear | — |
| 2005 | Mitsubishi | Endeavor | AWD | Rear | — |
| 2004 | Mitsubishi | Endeavor | AWD | Rear | — |
