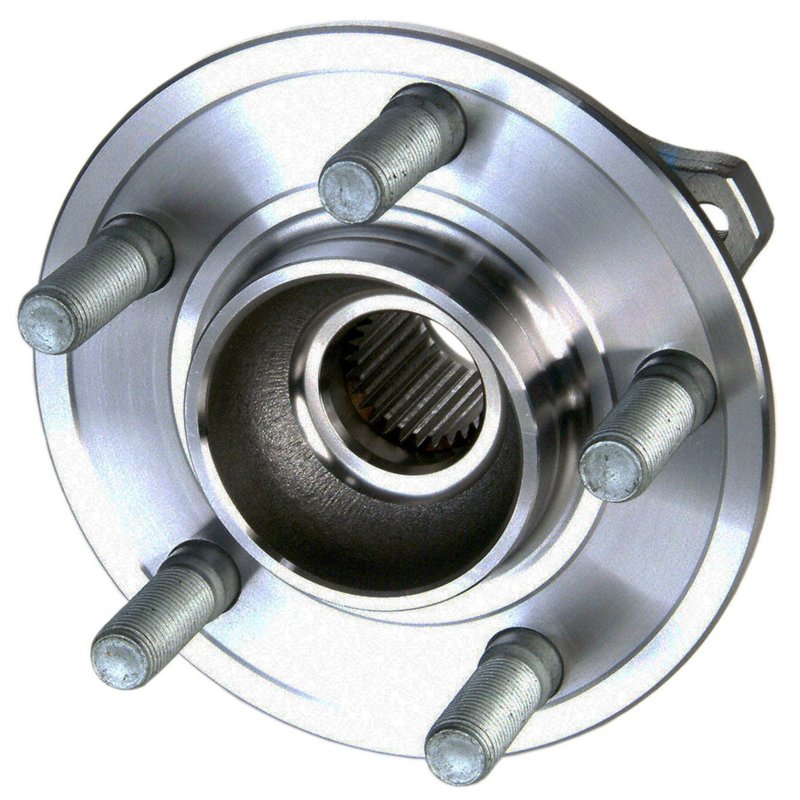

Moog 512301 Wheel Bearing and Hub Assembly - Rear
| Brand | Moog 512301 |
|---|---|
| Position | Rear |
| Anti Lock Brake Sensor Included | No |
| Bolt Circle Diameter | 115.000 |
| Brake Pilot Diameter | 72.500 |
| Flange Bolt Hole Quantity | 4 |
| Flange Diameter | 150.000 |
| Flange Offset | 60.300 |
| Hub Pilot Diameter | 90.400 |
| Spline Quantity | 27 |
| Wheel Pilot Diameter | 71.400 |
| Wheel Stud Quantity | 5 |
| Fits | Chrysler and Dodge · 28 vehicles |
Wheel bearing and hub assembly. A complete hub solution for dependable wheel support and rotation.
Fast, hassle-free installation. MOOG problem-solving innovations help simplify the job.
Rigorous testing. Built with superior materials for reliable performance you can count on.
Cross-references Centric Parts 400.63000E, GMB 799-0294 and Mevotech Supreme H512301 for the same application. See all 14.
Rear Wheel Bearing Hub Assembly
The MOOG 512301 rear wheel bearing and hub assembly is built for Chrysler, Dodge, and Magnum rear applications that call for a 27-spline shaft and, on select models, performance brake fitment. It combines precise hub dimensions with MOOG’s problem-solving design approach to support a smoother, more straightforward replacement.
For drivers searching for a rear wheel hub assembly for 2005-2008 Chrysler 300, 2006-2008 Dodge Charger, or 2005-2008 Dodge Magnum, this MOOG 512301 part provides the fitment and dimensional details needed for a direct repair.
- Rear wheel bearing and hub assembly for select Chrysler and Dodge vehicles
- 27 spline quantity for listed rear shaft applications
- 5 wheel studs and 4 flange bolt holes
- Wheel pilot diameter: 71.400 mm
- Brake pilot diameter: 72.500 mm
- Hub pilot diameter: 90.400 mm
- Bolt circle diameter: 115.000 mm
- Flange diameter: 150.000 mm
- Flange offset: 60.300 mm
- ABS sensor not included
Fitment Details
- Fits 2009 Chrysler 300, rear, with 27 Spline Shaft; with Performance Brakes
- Fits 2009 Dodge Charger, rear, with 27 Spline Shaft; with Performance Brakes
- Fits 2005-2008 Chrysler 300, rear
- Fits 2006-2008 Dodge Charger, rear
- Fits 2005-2008 Dodge Magnum, rear
What It Helps Resolve
- Rear wheel bearing noise or rough rotation
- Wheel play caused by hub wear
- Vibration from a worn hub assembly
- Improper wheel mounting due to damaged hub surfaces
- Brake and wheel alignment issues tied to hub wear
Installation Notes
Verify rear axle spline count, brake package, and hub dimensions before installation. This part is listed without an ABS sensor, so confirm the vehicle’s sensor setup and connector requirements before service. Match the bolt circle, pilot diameters, and flange offset to the original unit for proper fit on the Chrysler 300, Dodge Charger, or Dodge Magnum application.
Quality Assurance
MOOG hub assemblies use tested materials and application-focused engineering to support dependable service and easier installation. The MOOG 512301 is backed by the brand’s hub assembly quality standards and dimensional consistency for the listed rear fitments.
This part cross-references SKF BR930446 and Timken HA590142 for the same application.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2009 | Chrysler | 300 | 6.1L | V8 | Rear | with 27 Spline Shaft; with Performance Brakes |
| 2009 | Chrysler | 300 | 5.7L | V8 | Rear | with 27 Spline Shaft; with Performance Brakes |
| 2009 | Chrysler | 300 | 3.5L | V6 | Rear | with 27 Spline Shaft; with Performance Brakes |
| 2009 | Chrysler | 300 | 2.7L | V6 | Rear | with 27 Spline Shaft; with Performance Brakes |
| 2009 | Dodge | Charger | — | — | Rear | with 27 Spline Shaft; with Performance Brakes |
| 2008 | Chrysler | 300 | 6.1L | V8 | Rear | — |
| 2008 | Chrysler | 300 | 5.7L | V8 | Rear | — |
| 2008 | Chrysler | 300 | 3.5L | V6 | Rear | — |
| 2008 | Chrysler | 300 | 2.7L | V6 | Rear | — |
| 2008 | Dodge | Charger | — | — | Rear | — |
| 2008 | Dodge | Magnum | — | — | Rear | — |
| 2007 | Chrysler | 300 | 6.1L | V8 | Rear | — |
| 2007 | Chrysler | 300 | 5.7L | V8 | Rear | — |
| 2007 | Chrysler | 300 | 3.5L | V6 | Rear | — |
| 2007 | Chrysler | 300 | 2.7L | V6 | Rear | — |
| 2007 | Dodge | Charger | — | — | Rear | — |
| 2007 | Dodge | Magnum | — | — | Rear | — |
| 2006 | Chrysler | 300 | 6.1L | V8 | Rear | — |
| 2006 | Chrysler | 300 | 5.7L | V8 | Rear | — |
| 2006 | Chrysler | 300 | 3.5L | V6 | Rear | — |
| 2006 | Chrysler | 300 | 2.7L | V6 | Rear | — |
| 2006 | Dodge | Charger | — | — | Rear | — |
| 2006 | Dodge | Magnum | — | — | Rear | — |
| 2005 | Chrysler | 300 | 6.1L | V8 | Rear | — |
| 2005 | Chrysler | 300 | 5.7L | V8 | Rear | — |
| 2005 | Chrysler | 300 | 3.5L | V6 | Rear | — |
| 2005 | Chrysler | 300 | 2.7L | V6 | Rear | — |
| 2005 | Dodge | Magnum | — | — | Rear | — |
