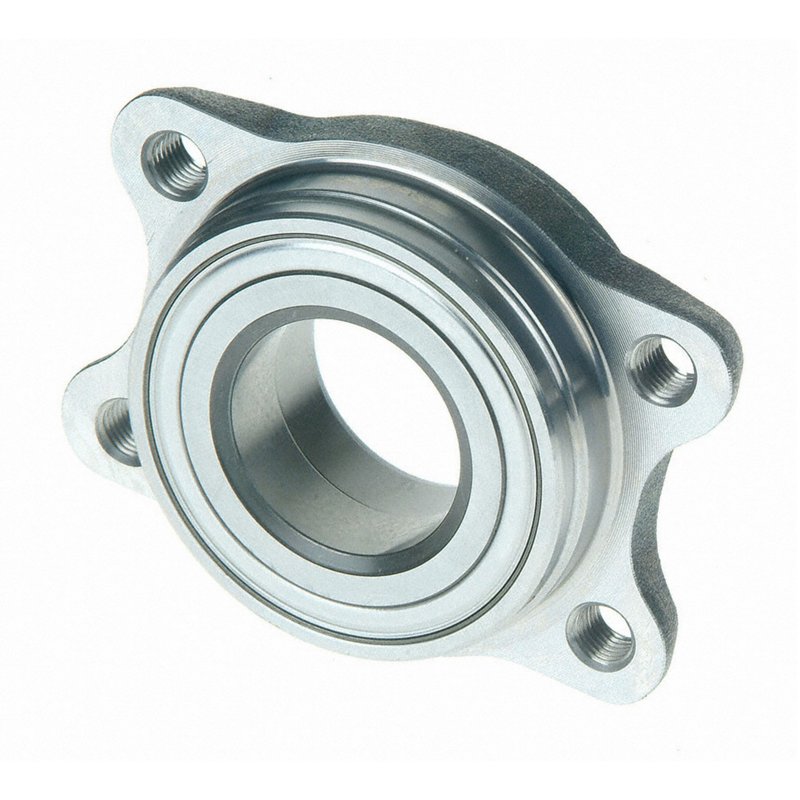

Moog 512305 Wheel Bearing and Hub Assembly - Front or Rear
| Brand | Moog 512305 |
|---|---|
| Position | Front |
| Anti Lock Brake Sensor Included | No |
| Bolt Circle Diameter | 4.213 |
| Flange Bolt Hole Quantity | 4 |
| Flange Diameter | 95.400 |
| Flange Shape | RECTANGLE |
| Hub Pilot Diameter | 85.000 |
| Fits | Audi · 65 vehicles |
Problem-solving design. Fast, hassle-free installation.
Reliable performance. Backed by superior materials and rigorous testing.
Wheel bearing and hub assembly. A complete hub assembly for dependable driveline service.
Cross-references Centric Parts 405.33000E, Mevotech BXT H512305 and MOOG Hub Assemblies 512305 for the same application. See all 35.
MOOG 512305 Wheel Bearing Hub Assembly
MOOG 512305 is a wheel bearing and hub assembly built for select Audi applications, including A4, A4 Quattro, S4, RS4, A6, A6 Quattro, A8, A8 Quattro, S6, S8, and RS6 models. It uses quality materials and tested construction to support dependable wheel-end performance and straightforward service work.
Key Features
- Wheel bearing and hub assembly for front or rear applications, depending on vehicle fitment
- Flange bolt hole quantity: 4
- Hub pilot diameter: 85.000
- Flange diameter: 95.400
- Bolt circle diameter: 4.213
- Rectangle flange shape for the specified OE-style mounting pattern
- ABS sensor not included
- MOOG part number 512305 for direct catalog lookup
Detailed Description
Built for select Audi wheel-end service, MOOG 512305 is engineered as a replacement wheel bearing and hub assembly for vehicles that require the listed flange and pilot dimensions. This part number is used across multiple Audi platforms, including 2002-2008 Audi A4 and A4 Quattro front applications, 2004-2009 Audi S4 front and rear applications, and 2007-2008 Audi RS4 front and rear applications. It also covers 2000-2004 Audi A6 and A6 Quattro front applications, plus 2000-2003 Audi A8 Quattro front and rear applications.
This MOOG hub assembly is also listed for 2002-2003 Audi S6 front and rear, 2001-2003 Audi S8 front and rear, 2003 Audi RS6 front, and 1999 Audi A8 and A8 Quattro front applications with the 2nd design wheel bearing and hub assembly. If you are searching for MOOG 512305 for an Audi A4 wheel bearing hub assembly or an Audi S4 front hub assembly, this part number is a direct catalog match for the confirmed applications shown here.
This part cross-references SKF BR930595K for the same application.
What It Helps Address
- Wheel bearing noise or rough rotation at the hub
- Excessive wheel play or looseness at the wheel-end
- Hub mounting wear at the flange and bolt circle interface
- Service replacement needs on Audi front or rear hub assemblies
- Fitment matching for vehicles requiring the specified pilot and flange dimensions
Installation Notes and Tips
Verify the vehicle position, model year, and design notes before ordering. Confirm whether the application is front or rear, and on 2009 Audi A4 and A4 Quattro front fitments, check the 45 mm and 43 mm inside diameter bearing note. The ABS sensor is not included, so reuse or source the vehicle-specific sensor arrangement as required by the application. Always compare the hub pilot diameter, bolt circle diameter, and flange shape to the removed part before installation.
Quality Assurance
MOOG backs this hub assembly with tested materials and problem-solving design details aimed at consistent fit and serviceability. The part is cataloged under MOOG 512305 and supported by multiple OE and aftermarket cross-references for the same application.
| Year | Make | Model | Submodel | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2009 | Audi | A4 | — | FWD | Front | with 45 (mm) & 43 (mm) Inside Diameter Bearing(s) |
| 2009 | Audi | A4 Quattro | Cabriolet | — | Front | with 45 (mm) & 43 (mm) Inside Diameter Bearing(s) |
| 2009 | Audi | S4 | — | — | Rear | — |
| 2009 | Audi | S4 | — | — | Front | — |
| 2008 | Audi | A4 | — | — | Front | — |
| 2008 | Audi | A4 Quattro | — | — | Front | — |
| 2008 | Audi | RS4 | — | — | Rear | — |
| 2008 | Audi | RS4 | — | — | Front | — |
| 2008 | Audi | S4 | — | — | Rear | — |
| 2008 | Audi | S4 | — | — | Front | — |
| 2007 | Audi | A4 | — | — | Front | — |
| 2007 | Audi | A4 Quattro | — | — | Front | — |
| 2007 | Audi | RS4 | — | — | Rear | — |
| 2007 | Audi | RS4 | — | — | Front | — |
| 2007 | Audi | S4 | — | — | Rear | — |
| 2007 | Audi | S4 | — | — | Front | — |
| 2006 | Audi | A4 | — | — | Front | — |
| 2006 | Audi | A4 Quattro | — | — | Front | — |
| 2006 | Audi | S4 | — | — | Rear | — |
| 2006 | Audi | S4 | — | — | Front | — |
| 2005 | Audi | A4 | — | — | Front | — |
| 2005 | Audi | A4 Quattro | — | — | Front | — |
| 2005 | Audi | S4 | — | — | Rear | — |
| 2005 | Audi | S4 | — | — | Front | — |
| 2004 | Audi | A4 | — | — | Front | — |
| 2004 | Audi | A4 Quattro | — | — | Front | — |
| 2004 | Audi | A6 | — | — | Front | — |
| 2004 | Audi | A6 Quattro | — | — | Front | — |
| 2004 | Audi | S4 | — | — | Rear | — |
| 2004 | Audi | S4 | — | — | Front | — |
| 2003 | Audi | A4 | — | — | Front | — |
| 2003 | Audi | A4 Quattro | — | — | Front | — |
| 2003 | Audi | A6 | — | — | Front | — |
| 2003 | Audi | A6 Quattro | — | — | Front | — |
| 2003 | Audi | A8 Quattro | — | — | Rear | — |
| 2003 | Audi | A8 Quattro | — | — | Front | — |
| 2003 | Audi | RS6 | — | — | Front | — |
| 2003 | Audi | S6 | — | — | Rear | — |
| 2003 | Audi | S6 | — | — | Front | — |
| 2003 | Audi | S8 | — | — | Rear | — |
| 2003 | Audi | S8 | — | — | Front | — |
| 2002 | Audi | A4 | — | — | Front | — |
| 2002 | Audi | A4 Quattro | — | — | Front | — |
| 2002 | Audi | A6 | — | — | Front | — |
| 2002 | Audi | A6 Quattro | — | — | Front | — |
| 2002 | Audi | A8 Quattro | — | — | Rear | — |
| 2002 | Audi | A8 Quattro | — | — | Front | — |
| 2002 | Audi | S4 | — | — | Rear | — |
| 2002 | Audi | S4 | — | — | Front | — |
| 2002 | Audi | S6 | — | — | Rear | — |
| 2002 | Audi | S6 | — | — | Front | — |
| 2002 | Audi | S8 | — | — | Rear | — |
| 2002 | Audi | S8 | — | — | Front | — |
| 2001 | Audi | A6 | — | — | Front | — |
| 2001 | Audi | A6 Quattro | — | — | Front | — |
| 2001 | Audi | A8 Quattro | — | — | Rear | — |
| 2001 | Audi | A8 Quattro | — | — | Front | — |
| 2001 | Audi | S8 | — | — | Rear | — |
| 2001 | Audi | S8 | — | — | Front | — |
| 2000 | Audi | A6 | — | — | Front | — |
| 2000 | Audi | A6 Quattro | — | — | Front | — |
| 2000 | Audi | A8 Quattro | — | — | Rear | — |
| 2000 | Audi | A8 Quattro | — | — | Front | — |
| 1999 | Audi | A8 | — | — | Front | 2nd Design - Fits Wheel Bearing and Hub Assembly |
| 1999 | Audi | A8 Quattro | — | — | Front | 2nd Design - Fits Wheel Bearing and Hub Assembly |
