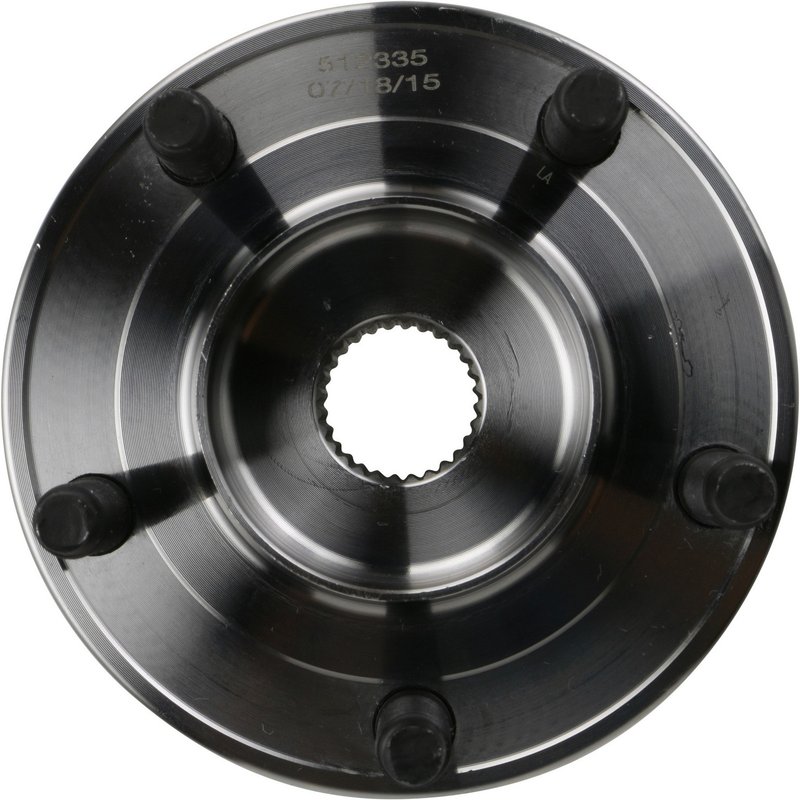

Moog 512335 Wheel Bearing and Hub Assembly - Rear
| Brand | Moog 512335 |
|---|---|
| Position | Rear |
| Anti Lock Brake Sensor Included | Yes |
| Bolt Circle Diameter | 4.500 |
| Bolt Circle Diameter | 114.300 |
| Brake Pilot Diameter | 71.900 |
| Flange Bolt Hole Quantity | 4 |
| Flange Diameter | 139.800 |
| Flange Offset | 63.000 |
| Flange Shape | MODIFIED |
| Hub Pilot Diameter | 78.000 |
| Spline Quantity | 28 |
| Wheel Pilot Diameter | 70.500 |
| Wheel Stud Quantity | 5 |
| Fits | Ford and Lincoln · 8 vehicles |
Fast, hassle-free installation. Problem-solving design helps make setup straightforward.
Reliable performance. Backed by superior materials and rigorous testing.
Hub assembly. Complete wheel bearing and hub assembly for driveline service.
Cross-references Mevotech Supreme H512335, Raybestos Brakes 712335 and SKF BR930636 for the same application. See all 10.
Rear Wheel Bearing Hub Assembly for Edge and MKX
MOOG 512335 is a rear wheel bearing and hub assembly built for 2007-2010 Ford Edge and 2007-2010 Lincoln MKX applications. It combines the hub, bearing, and ABS sensor integration needed for a direct rear axle service replacement.
Key Features
- Rear wheel bearing and hub assembly for Ford Edge and Lincoln MKX
- Includes an anti-lock brake sensor
- 28-spline design with 5 wheel studs
- 4-bolt flange with modified flange shape
- Wheel pilot diameter: 70.500 mm
- Brake pilot diameter: 71.900 mm
- Hub pilot diameter: 78.000 mm
- Bolt circle diameter: 114.300 mm / 4.500 in
- Flange diameter: 139.800 mm
- Flange offset: 63.000 mm
Detailed Description
MOOG 512335 is engineered for rear-wheel service on 2007-2010 Ford Edge and 2007-2010 Lincoln MKX models. MOOG uses tested materials and application-focused design to support dependable hub performance and a smoother installation process. This part cross-references Timken HA590183 for the same application.
For shoppers searching for a rear wheel bearing hub assembly for Ford Edge 2007-2010 or a rear hub assembly for Lincoln MKX 2007-2010, this unit matches the listed OE-style dimensions and ABS sensor configuration. The 28-spline hub design, 5-stud wheel mounting pattern, and 4-bolt flange help ensure proper fitment at the rear axle.
Common Problems This Part Can Address
- Rear wheel bearing noise or growling
- Excessive wheel play or looseness
- ABS warning light caused by hub sensor issues
- Uneven rear wheel rotation or vibration
- Hub wear from mileage or road contamination
Installation Notes and Tips
Verify rear fitment by year, make, and model before installation. Confirm the bolt circle, flange dimensions, spline count, and ABS sensor setup against the original part. Clean the mounting surface and inspect related brake and axle components during service to help prevent repeat repairs.
Quality Assurance
MOOG hub assemblies are backed by material selection and testing standards aimed at consistent service performance. The brand’s problem-solving design approach supports a straightforward replacement on 2007-2010 Ford Edge and 2007-2010 Lincoln MKX rear applications.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2010 | Ford | Edge | AWD | Rear | — |
| 2010 | Lincoln | MKX | AWD | Rear | — |
| 2009 | Ford | Edge | AWD | Rear | — |
| 2009 | Lincoln | MKX | AWD | Rear | — |
| 2008 | Ford | Edge | AWD | Rear | — |
| 2008 | Lincoln | MKX | AWD | Rear | — |
| 2007 | Ford | Edge | AWD | Rear | — |
| 2007 | Lincoln | MKX | AWD | Rear | — |
| No rows match your filter. | |||||
