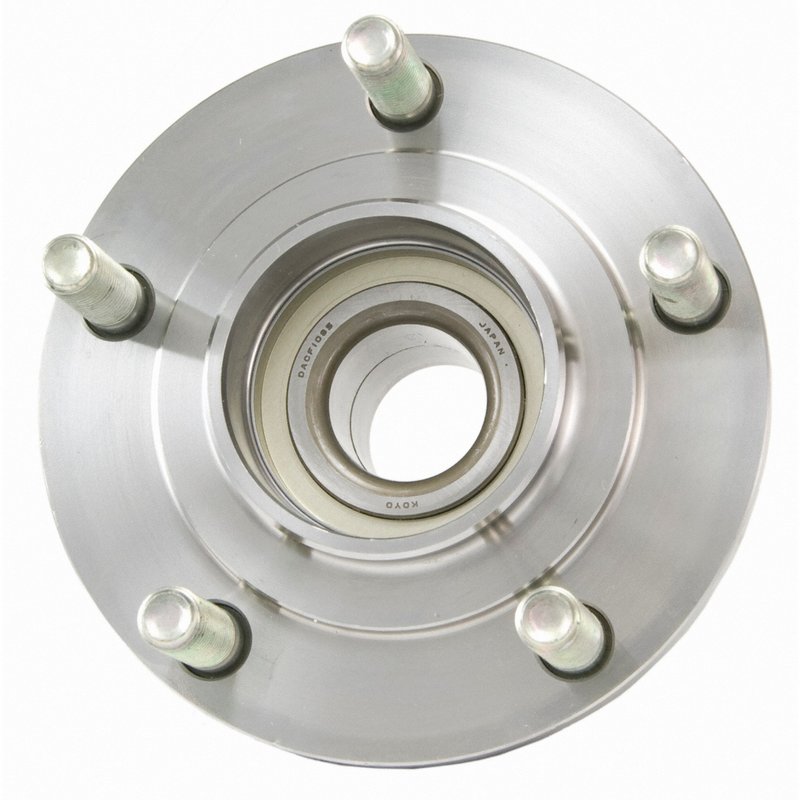

Moog 512339 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Mitsubishi

MOOG 512339 is a rear wheel bearing and hub assembly built for select Mitsubishi applications, including the 2004-2006 Mitsubishi Lancer rear and 2003-2006 Mitsubishi Outlander rear. It combines hub and bearing service in one unit and includes an ABS sensor for direct replacement on the listed vehicles.

Key Features

• Rear wheel bearing and hub assembly for Mitsubishi Lancer and Mitsubishi Outlander
• Includes anti-lock brake sensor for the listed fitments
• 5 wheel studs with 114.700 bolt circle diameter
• Wheel pilot diameter: 67.000
• Brake pilot diameter: 90.000
• Hub pilot diameter: 30.100
• Flange diameter: 138.000 with 56.500 flange offset
• MOOG 512339 replacement part number for rear hub service

Detailed Description

MOOG 512339 is engineered as a rear wheel bearing and hub assembly for 2004-2006 Mitsubishi Lancer and 2003-2006 Mitsubishi Outlander rear applications. The integrated design supports a cleaner service replacement by combining the hub and bearing into one assembly, while the included ABS sensor supports vehicles equipped with anti-lock braking. MOOG’s design approach focuses on extending service life and simplifying replacement, which is especially important when servicing rear wheel hub assemblies on Mitsubishi Lancer and Mitsubishi Outlander models.

This part cross-references Timken HA590103 and Beck/Arnley 051-6185 for the same application.

What It Helps Fix

• Rear wheel bearing noise or rough rotation
• Excessive hub play or looseness at the rear wheel
• ABS warning light concerns related to the rear wheel speed signal
• Uneven rear wheel support caused by hub wear
• Service issues on Mitsubishi Lancer and Mitsubishi Outlander rear hub assemblies

Installation Notes and Tips

Verify rear fitment by year, make, and model before installation. Confirm the bolt circle diameter, wheel pilot diameter, brake pilot diameter, and hub pilot diameter match the original part on the vehicle. Because this assembly includes an ABS sensor, inspect the connector and wiring condition during replacement and clear any stored ABS codes after installation if required.

Quality Assurance

MOOG is known for continual design updates that improve service life and make replacement easier. Part number 512339 is built to meet the needs of the listed Mitsubishi rear applications with attention to fit, function, and serviceability.
