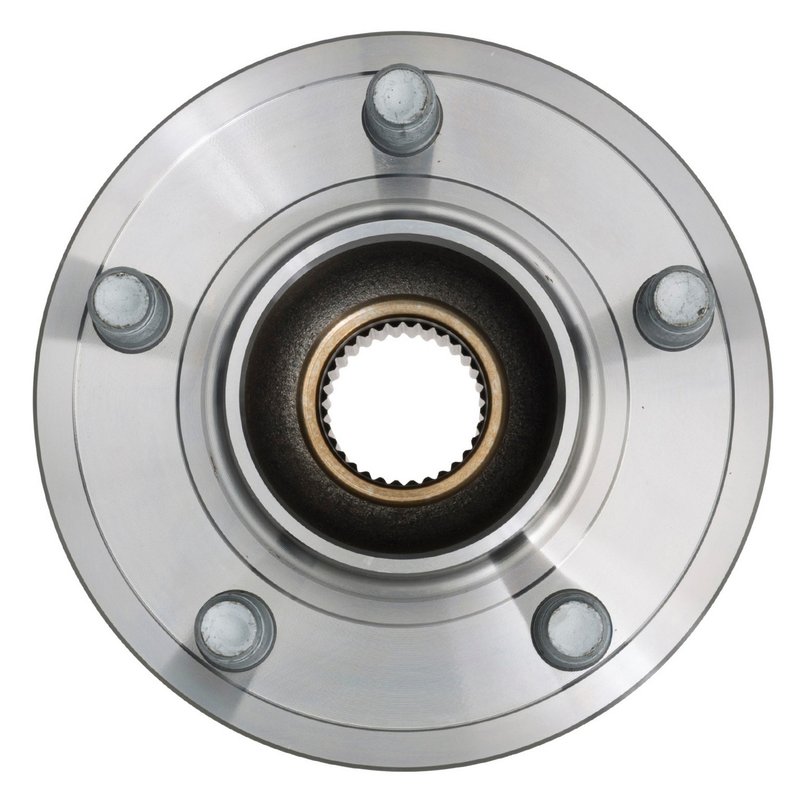

Moog 512369 Wheel Bearing and Hub Assembly - Rear
| Brand | Moog 512369 |
|---|---|
| Position | Rear |
| Anti Lock Brake Sensor Included | No |
| Bolt Circle Diameter | 4.525 |
| Bolt Circle Diameter | 115.000 |
| Brake Pilot Diameter | 72.500 |
| Flange Bolt Hole Quantity | 4 |
| Flange Diameter | 150.000 |
| Flange Offset | 60.300 |
| Flange Shape | RECTANGLE |
| Hub Pilot Diameter | 90.400 |
| Spline Quantity | 32 |
| Wheel Pilot Diameter | 71.400 |
| Wheel Stud Quantity | 5 |
| Fits | Chrysler and Dodge · 32 vehicles |
Fast, hassle-free installation. MOOG problem-solving innovations simplify the job.
Reliable performance. Backed by superior materials and rigorous testing.
Wheel bearing and hub assembly. A complete hub solution for driveline and axle service.
Cross-references Centric Parts 400.63004E, GMB 799-0294 and Mevotech Supreme H512301 for the same application. See all 12.
Rear Wheel Bearing Hub Assembly for Chrysler and Dodge
MOOG 512369 is a rear wheel bearing and hub assembly built for specific Chrysler and Dodge applications that use a 32-spline shaft. It is engineered with quality materials and tested for dependable operation, with design details that support straightforward service work on the rear axle.
- Rear wheel bearing and hub assembly for Chrysler 300 and Dodge Charger/Challenger applications
- 32 spline quantity for listed rear axle fitments
- 5 wheel studs with a 4-bolt flange design
- Hub pilot diameter: 90.400 mm
- Wheel pilot diameter: 71.400 mm
- Brake pilot diameter: 72.500 mm
- Bolt circle diameter: 115.000 mm / 4.525 in
- Flange diameter: 150.000 mm with rectangle flange shape
- Anti-lock brake sensor not included
Fitment and application details
Compatible with rear applications on 2010-2014 Chrysler 300, 2008-2014 Dodge Challenger, and 2010-2014 Dodge Charger. For 2009 Chrysler 300 and 2009 Dodge Charger, this part applies to rear models except performance brakes and with 32 spline shaft. MOOG 512369 is also cross-referenced to Timken HA590358 for the same application.
This rear hub assembly is built around the listed hub, flange, and pilot dimensions to support proper wheel mounting and brake interface alignment. The 5-stud pattern and 115 mm bolt circle are key identifiers for matching the correct rear wheel bearing and hub assembly on Chrysler 300, Dodge Charger, and Dodge Challenger vehicles. If you are searching for a rear wheel bearing hub assembly for Chrysler 300 or Dodge Charger rear service, MOOG 512369 provides the fitment and dimensional details needed for a direct application match.
Common issues this part addresses
- Rear wheel bearing noise or rough rotation
- Wheel looseness caused by hub wear
- Vibration related to hub or bearing deterioration
- Improper wheel mounting from damaged flange surfaces
- Service replacement for rear hub assemblies on listed Chrysler and Dodge models
Installation notes and tips
Verify rear axle spline count, brake package, and hub dimensions before installation. Confirm the 32-spline shaft requirement on 2009 Chrysler 300 and 2009 Dodge Charger models, and check that the vehicle does not use performance brakes where excluded. Inspect the mounting flange, wheel studs, and mating surfaces during service to help ensure proper seating and alignment.
Quality assurance
MOOG hub assemblies are backed by tested materials and application-focused engineering for reliable service. The brand’s problem-solving design approach is aimed at reducing installation friction and supporting consistent fit on the specified rear applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2014 | Chrysler | 300 | 5.7L | V8 | Rear | — |
| 2014 | Chrysler | 300 | 3.6L | V6 | Rear | — |
| 2014 | Chrysler | 300 | 6.4L | V8 | Rear | — |
| 2014 | Dodge | Challenger | — | — | Rear | — |
| 2014 | Dodge | Charger | — | — | Rear | — |
| 2013 | Chrysler | 300 | 5.7L | V8 | Rear | — |
| 2013 | Chrysler | 300 | 3.6L | V6 | Rear | — |
| 2013 | Chrysler | 300 | 6.4L | V8 | Rear | — |
| 2013 | Dodge | Challenger | — | — | Rear | — |
| 2013 | Dodge | Charger | — | — | Rear | — |
| 2012 | Chrysler | 300 | 5.7L | V8 | Rear | — |
| 2012 | Chrysler | 300 | 3.6L | V6 | Rear | — |
| 2012 | Chrysler | 300 | 6.4L | V8 | Rear | — |
| 2012 | Dodge | Challenger | — | — | Rear | — |
| 2012 | Dodge | Charger | — | — | Rear | — |
| 2011 | Chrysler | 300 | 5.7L | V8 | Rear | — |
| 2011 | Chrysler | 300 | 3.6L | V6 | Rear | — |
| 2011 | Dodge | Challenger | — | — | Rear | — |
| 2011 | Dodge | Charger | — | — | Rear | — |
| 2010 | Chrysler | 300 | 6.1L | V8 | Rear | — |
| 2010 | Chrysler | 300 | 5.7L | V8 | Rear | — |
| 2010 | Chrysler | 300 | 3.5L | V6 | Rear | — |
| 2010 | Chrysler | 300 | 2.7L | V6 | Rear | — |
| 2010 | Dodge | Challenger | — | — | Rear | — |
| 2010 | Dodge | Charger | — | — | Rear | — |
| 2009 | Chrysler | 300 | 6.1L | V8 | Rear | Except Performance Brakes; with 32 Spline Shaft |
| 2009 | Chrysler | 300 | 5.7L | V8 | Rear | Except Performance Brakes; with 32 Spline Shaft |
| 2009 | Chrysler | 300 | 3.5L | V6 | Rear | Except Performance Brakes; with 32 Spline Shaft |
| 2009 | Chrysler | 300 | 2.7L | V6 | Rear | Except Performance Brakes; with 32 Spline Shaft |
| 2009 | Dodge | Challenger | — | — | Rear | — |
| 2009 | Dodge | Charger | — | — | Rear | Except Performance Brakes; with 32 Spline Shaft |
| 2008 | Dodge | Challenger | — | — | Rear | — |
