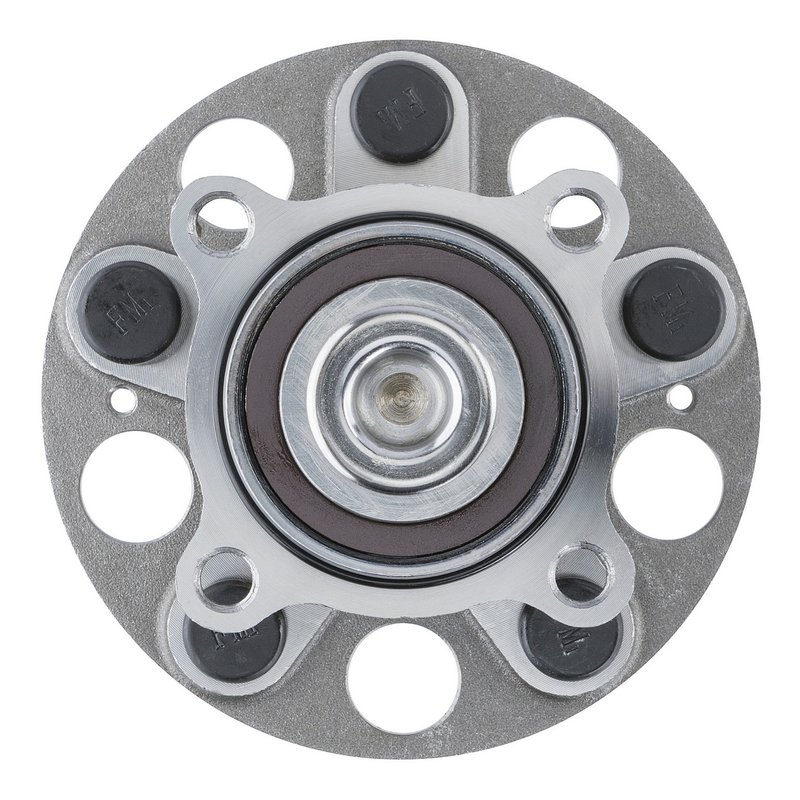

Moog 512391 Wheel Bearing and Hub Assembly - Rear
| Brand | Moog 512391 |
|---|---|
| Position | Rear |
| Anti Lock Brake Sensor Included | Yes |
| Bolt Circle Diameter | 5.996 |
| Bolt Circle Diameter | 120.000 |
| Brake Pilot Diameter | 70.700 |
| Flange Bolt Hole Quantity | 4 |
| Flange Diameter | 152.200 |
| Flange Offset | 60.800 |
| Flange Shape | SQUARE |
| Hub Pilot Diameter | 72.000 |
| Wheel Pilot Diameter | 64.100 |
| Wheel Stud Quantity | 5 |
| Fits | Acura · 6 vehicles |
Simplifies installation. Design enhancements help make replacement easier.
Wheel bearing and hub assembly. Combines the hub and bearing in one unit.
Problem Solver line. MOOG focuses on product-life improvements.
Cross-references 42200-TK4-A01 for the same application. See all 1.
Rear Wheel Bearing Hub for Acura TL
MOOG 512391 is a rear wheel bearing and hub assembly for 2009-2014 Acura TL applications. It is built with an integrated ABS sensor and OE-style hub dimensions to support accurate wheel mounting and consistent rear-end service on the Acura TL.
Key Features
- Rear wheel bearing and hub assembly for 2009-2014 Acura TL
- Integrated anti-lock brake sensor included
- 5 wheel studs with a 120.000 bolt circle diameter
- 4 flange bolt holes and square flange shape
- Hub pilot diameter: 72.000
- Wheel pilot diameter: 64.100
- Brake pilot diameter: 70.700
- Flange diameter: 152.200 with 60.800 flange offset
- Cross-reference: Acura 42200-TK4-A01
Product Details
MOOG 512391 is engineered as a direct rear hub assembly for the Acura TL, 2009-2014. The design focuses on simplifying replacement while maintaining the dimensional accuracy needed for proper wheel seating, brake interface alignment, and ABS signal integration. MOOG’s ongoing design updates are aimed at extending service life and making installation more straightforward for technicians working on driveline and axle hub service. This part number, 512391, is a practical OE-style replacement for rear hub service on the Acura TL.
Compatible With 2009-2014 Acura TL, rear. For shoppers searching for a rear wheel bearing and hub assembly for 2009 Acura TL, 2010 Acura TL rear hub, or 2011-2014 Acura TL ABS wheel hub replacement, this part matches the confirmed application data.
Common Problems This Part Can Address
- Rear wheel bearing noise or rough rotation
- ABS warning light caused by a failed hub sensor assembly
- Wheel looseness from worn hub components
- Improper wheel mounting due to damaged pilot surfaces
- Vibration or uneven rear wheel support from hub wear
Installation Notes and Tips
Verify rear fitment before installation and confirm the hub dimensions, bolt circle, and sensor connection match the original part. Inspect the mating surfaces, axle area, and brake components for wear or corrosion before assembly. Because this unit includes an ABS sensor, make sure the electrical connector and tone/signal interface are clean and properly seated during replacement.
Quality Assurance
MOOG is known for continuous chassis and steering design improvements that focus on longer service life and easier replacement. Part number 512391 is built to meet the needs of rear hub service on the Acura TL with attention to fit, function, and installation consistency.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2014 | Acura | TL | — | Rear | — |
| 2013 | Acura | TL | FWD | Rear | — |
| 2012 | Acura | TL | FWD | Rear | — |
| 2011 | Acura | TL | FWD | Rear | — |
| 2010 | Acura | TL | FWD | Rear | — |
| 2009 | Acura | TL | FWD | Rear | — |
