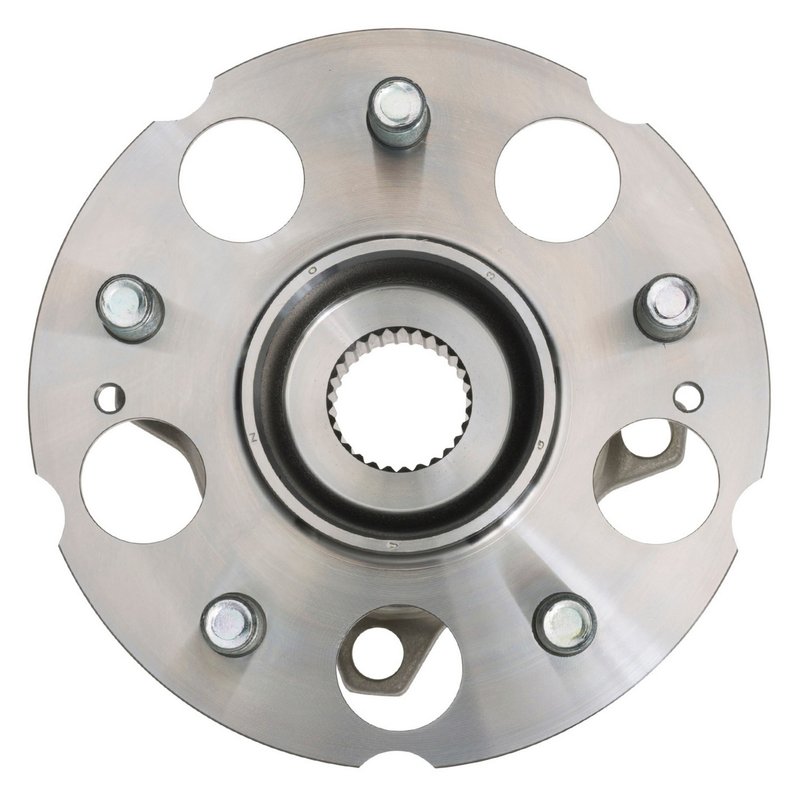

Moog 512392 Wheel Bearing and Hub Assembly - Rear
| Brand | Moog 512392 |
|---|---|
| Position | Rear |
| Anti Lock Brake Sensor Included | Yes |
| Bolt Circle Diameter | 4.488 |
| Bolt Circle Diameter | 114.300 |
| Brake Pilot Diameter | 64.000 |
| Flange Bolt Hole Quantity | 4 |
| Flange Diameter | 152.000 |
| Flange Offset | 61.400 |
| Flange Shape | SQUARE |
| Hub Pilot Diameter | 81.000 |
| Spline Quantity | 28 |
| Wheel Pilot Diameter | 57.000 |
| Wheel Stud Quantity | 5 |
| Fits | Honda · 6 vehicles |
Simplifies installation. Design enhancements help make replacement easier.
Wheel bearing and hub assembly. Combines hub and bearing functions in one unit.
MOOG Problem Solver. Known for ongoing design improvements that extend product life.
Cross-references SKF BR930566K, Timken HA590530 and 42200-TP7-A01 for the same application. See all 5.
Rear Wheel Bearing Hub Assembly for Honda Crosstour
Restore smooth rear wheel operation with this MOOG wheel bearing and hub assembly, part number 512392. It is built for rear applications on the 2010-2011 Honda Accord Crosstour and 2012-2015 Honda Crosstour, with fitment-specific dimensions that support proper hub alignment and sensor integration.
- Fits 2012-2015 Honda Crosstour, rear
- Fits 2010-2011 Honda Accord Crosstour, rear
- Anti-lock brake sensor included for direct ABS system service
- 28 spline quantity for the specified driveline application
- 5 wheel studs with a 4-bolt flange pattern
- Square flange shape with 152.000 flange diameter and 61.400 flange offset
- Hub pilot diameter: 81.000; wheel pilot diameter: 57.000; brake pilot diameter: 64.000
- Bolt circle diameter: 114.300 / 4.488
MOOG 512392 is a rear wheel bearing and hub assembly engineered with design updates that focus on longer service life and easier installation and replacement. For Honda Crosstour and Honda Accord Crosstour rear hub service, this assembly provides the key mounting and sensor-related dimensions needed for a precise replacement. This part cross-references Timken HA590530 and SKF BR930566K for the same application.
Common Repair Reasons
- Rear wheel bearing noise or growling
- Excessive wheel play or looseness at the hub
- ABS warning light related to the rear wheel speed sensor circuit
- Uneven rear wheel rotation caused by hub wear
- Service replacement after hub or bearing damage
Installation Notes
Verify rear fitment by year and model before installation on the Honda Crosstour or Honda Accord Crosstour. Confirm spline count, bolt circle diameter, flange offset, and sensor connection points against the removed part to ensure correct alignment. Clean the mounting surface thoroughly and inspect adjacent brake and suspension components during service.
Quality Assurance
MOOG is known in chassis and driveline service for ongoing design improvements that help simplify replacement and extend part life. Part number 512392 is built to meet the dimensional and application requirements listed for the rear hub assembly service on the specified Honda models.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2015 | Honda | Crosstour | AWD | Rear | — |
| 2014 | Honda | Crosstour | AWD | Rear | — |
| 2013 | Honda | Crosstour | AWD | Rear | — |
| 2012 | Honda | Crosstour | AWD | Rear | — |
| 2011 | Honda | Accord Crosstour | AWD | Rear | — |
| 2010 | Honda | Accord Crosstour | AWD | Rear | — |
