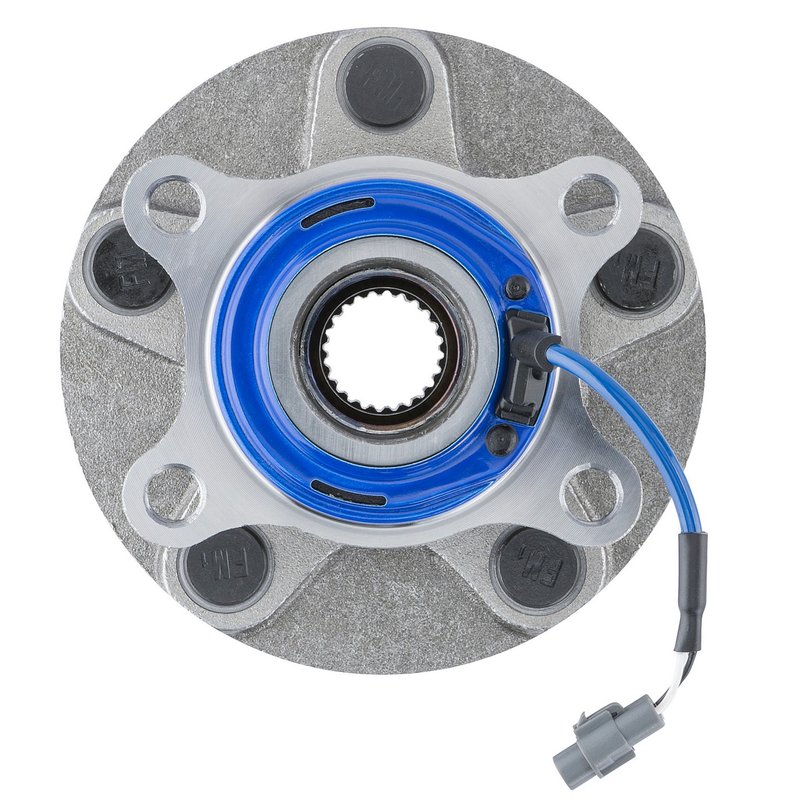

Moog 512393 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing and Hub Assembly for Suzuki SX4

MOOG 512393 is a rear wheel bearing and hub assembly built for 2007-2013 Suzuki SX4 applications. It combines a 5-stud hub design with integrated ABS sensor support for direct replacement service on the rear axle.

Key Features

• Fits 2007-2013 Suzuki SX4, rear
• MOOG part number 512393 for catalog and fitment reference
• 24-spline hub configuration
• 5 wheel studs with a 4-bolt flange pattern
• Anti-lock brake sensor included
• Hub pilot diameter: 71.100 mm
• Wheel pilot diameter: 60.000 mm
• Brake pilot diameter: 62.000 mm
• Bolt circle diameter: 114.300 mm
• Flange diameter: 140.000 mm with 60.000 mm offset

Product Details

MOOG 512393 is engineered as a rear wheel bearing and hub assembly for the Suzuki SX4, covering 2007 through 2013 model years. The assembly is built with attention to material quality and testing standards, and it includes an ABS sensor to support vehicles equipped with anti-lock braking systems. For shoppers searching for a rear wheel hub assembly for Suzuki SX4 2007-2013 or a MOOG 512393 rear hub replacement, this part matches the listed rear fitment and key dimensional specifications.

This part cross-references Timken HA590331 and SKF BR930781 for the same application.

What It Helps Address

• Rear wheel bearing noise or rough rotation
• Excessive wheel play at the rear hub
• ABS warning light concerns related to the hub sensor interface
• Uneven rear wheel mounting or hub wear
• Service replacement for a worn Suzuki SX4 rear hub assembly

Installation Notes and Tips

Confirm rear axle fitment by year, make, and model before installation. Verify the 24-spline hub configuration, 5-stud wheel pattern, and 114.300 mm bolt circle diameter against the original part. Inspect the mating surfaces, axle components, and ABS wiring condition during service to help ensure proper seating and sensor operation. Use the vehicle service procedure for torque values and bearing/hub installation steps.

Quality Assurance

MOOG hub assemblies are backed by material selection and testing practices aimed at consistent performance and straightforward installation. MOOG 512393 is built to meet the dimensional and functional requirements listed for the rear position on the Suzuki SX4.
