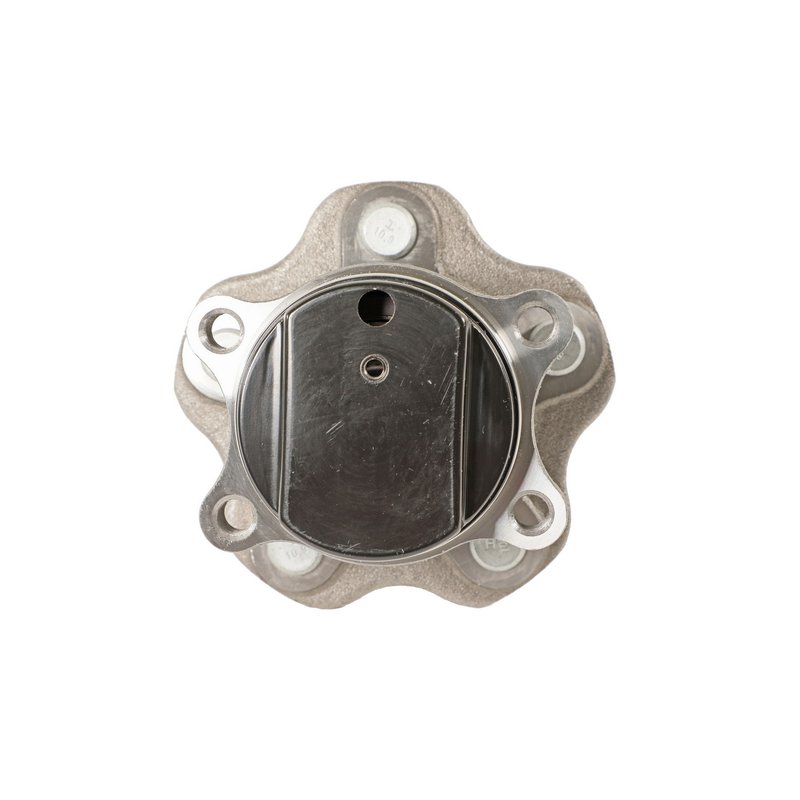

Moog 512398 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing and Hub Assembly for Nissan Rogue

The MOOG 512398 wheel bearing and hub assembly is built for rear applications on select Nissan Rogue and Rogue Select models. It combines hub, bearing, and ABS sensor integration in one service part to support a precise rear wheel mounting point and consistent wheel-speed signal output.

Key Features

• Rear wheel bearing and hub assembly for 2008-2015 Nissan Rogue and Rogue Select
• ABS sensor included for vehicles equipped with rear wheel speed sensing
• 5 wheel studs with a 4-bolt flange pattern
• Modified flange shape with 148.000 flange diameter and 69.000 flange offset
• Hub pilot diameter: 84.000; wheel pilot diameter: 66.000; brake pilot diameter: 68.000
• Bolt circle diameter: 114.300 mm / 4.500 in
• MOOG part number 512398

Detailed Description

MOOG 512398 is a rear wheel bearing and hub assembly engineered for 2008-2013 Nissan Rogue and 2014-2015 Nissan Rogue Select rear positions. It is a direct-fit service component for the rear hub area, with an integrated ABS sensor and OE-style dimensions that support proper wheel mounting, brake alignment, and wheel-speed signal operation. This part cross-references Raybestos Brakes 712398 for the same application.

MOOG focuses on design updates that improve service life and make replacement easier. For Nissan Rogue rear hub service, that means a part built around the key fitment dimensions technicians check during installation, including the bolt circle, pilot diameters, flange offset, and stud layout. If you are replacing a worn rear hub on a Nissan Rogue or Nissan Rogue Select, MOOG 512398 provides a specification-matched option for the rear axle.

What This Part Helps Address

• Rear wheel bearing noise or roughness
• Wheel play caused by hub wear
• ABS warning light concerns related to rear wheel speed sensing
• Uneven wheel mounting or hub fitment issues
• Brake service problems tied to worn rear hub components

Installation Notes and Tips

Confirm rear-position fitment before ordering. Fits 2008-2013 Nissan Rogue, rear, and fits 2014-2015 Nissan Rogue Select, rear. Verify the bolt circle, pilot diameters, and flange dimensions against the original part before installation. Clean the mounting surface thoroughly and inspect related suspension and brake components while the hub is removed. Because this assembly includes an ABS sensor, make sure the electrical connection and tone-ring interface are seated correctly during reassembly.

Quality Assurance

MOOG is known for ongoing design improvements that extend product life and simplify replacement procedures. Part number 512398 is built to meet the dimensional and functional requirements of the listed Nissan Rogue rear applications.
