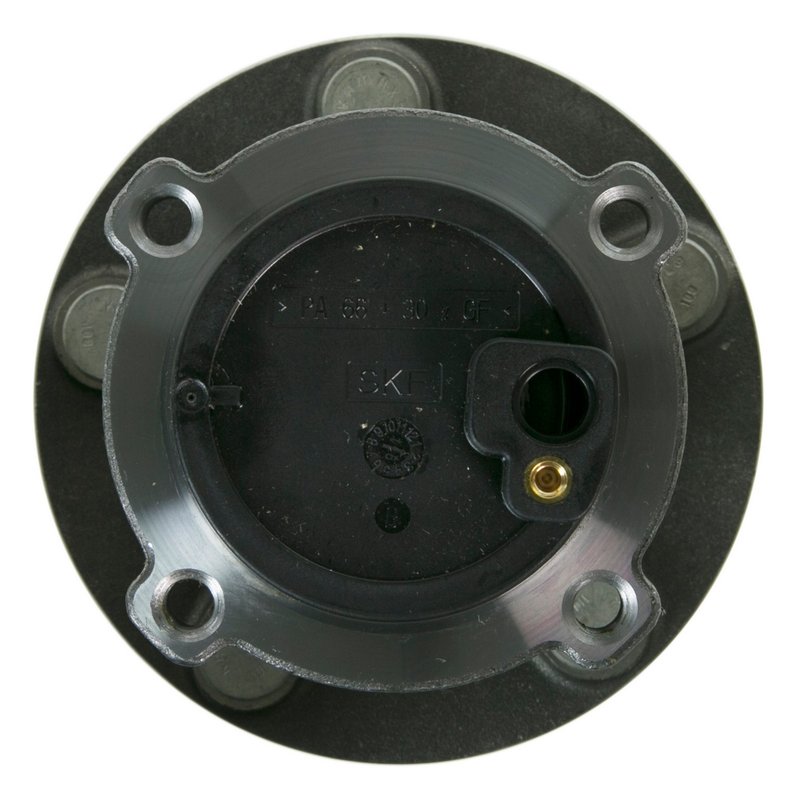

Moog 512411 Wheel Bearing and Hub Assembly - Rear

Overview of Moog 512411 Wheel Bearing and Hub Assembly

The Moog 512411 wheel bearing and hub assembly is engineered for reliable performance in Volvo vehicles, including the C30, C70, S40, and V50 models. Designed to meet precise specifications, this assembly integrates essential features such as an anti-lock brake sensor to maintain vehicle safety and control.

• Flange bolt hole quantity: 4
• Wheel pilot diameter: 63.200 mm
• Brake pilot diameter: 63.400 mm
• Wheel stud quantity: 5
• Hub pilot diameter: 73.800 mm
• Modified flange shape with 63.000 mm flange offset
• Flange diameter: 136.000 mm
• Bolt circle diameter: 107.700 mm (4.257 inches)
• Includes anti-lock brake sensor

Technical Details and Specifications

This Moog wheel bearing and hub assembly (part number 512411) is designed with a modified flange shape to ensure proper fitment and alignment on compatible Volvo models. The assembly features a 5-stud wheel configuration and a 4-hole flange bolt pattern, supporting secure mounting. The wheel pilot diameter of 63.200 mm and brake pilot diameter of 63.400 mm provide precise centering for the wheel and brake components, while the hub pilot diameter of 73.800 mm ensures correct hub positioning. The flange offset of 63.000 mm and flange diameter of 136.000 mm contribute to the overall stability and fitment of the assembly. Additionally, the integrated anti-lock brake sensor supports the vehicle’s ABS system for enhanced safety.

Compatible Volvo Models and Applications

This wheel bearing and hub assembly is compatible with the following Volvo vehicles:

• Volvo C30
• Volvo C70
• Volvo S40
• Volvo V50

It is designed to replace worn or damaged wheel bearing and hub assemblies, restoring proper wheel function and safety.

Common Issues Addressed by Moog 512411

• Wheel bearing noise or roughness during driving
• Excessive wheel play or looseness
• ABS warning light activation due to sensor failure
• Uneven tire wear caused by hub misalignment
• Vibration or wobbling at higher speeds

Installation Notes and Tips

When installing the Moog 512411 wheel bearing and hub assembly, ensure the vehicle is securely lifted and supported. Remove the existing hub assembly carefully to avoid damage to surrounding components. Verify that the flange bolt holes and wheel studs align correctly with the vehicle’s mounting points. Connect the anti-lock brake sensor wiring securely to maintain ABS functionality. It is recommended to torque all fasteners to manufacturer specifications and perform a wheel alignment check after installation.

Quality Assurance and Warranty

Moog manufactures the 512411 wheel bearing and hub assembly to meet or exceed OEM standards for durability and performance. The product includes an integrated anti-lock brake sensor to maintain vehicle safety systems. Moog typically offers a limited warranty covering defects in materials and workmanship; please refer to the specific warranty terms provided with the product for detailed coverage information.
