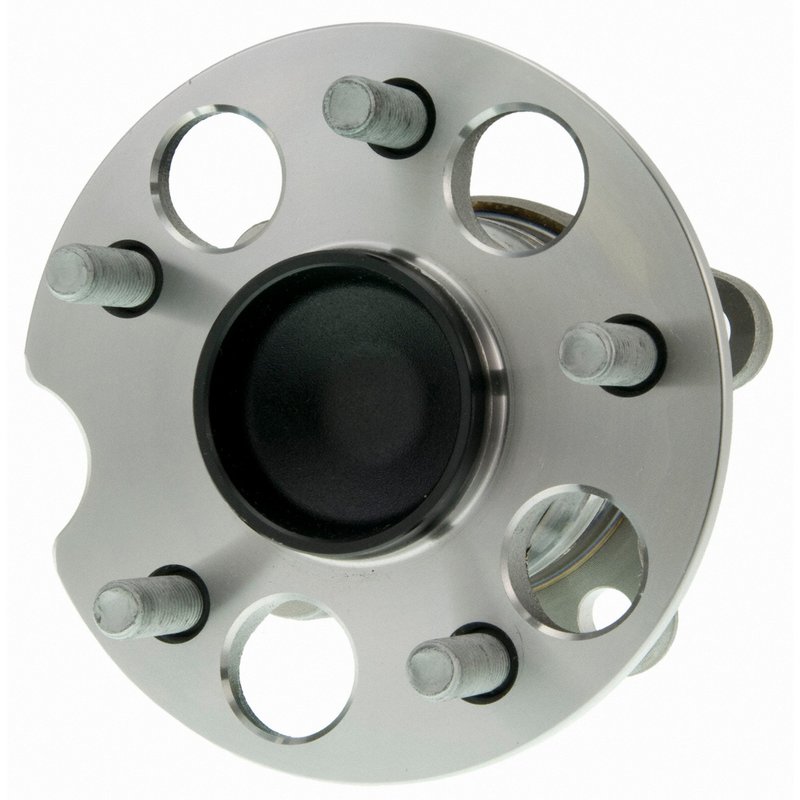

Moog 512420 Wheel Bearing and Hub Assembly - Rear Right

Wheel Bearing Hub Assembly for Highlander

Restore smooth rear wheel support with this MOOG wheel bearing and hub assembly, part number 512420. It is built for the rear right position on 2008-2013 Toyota Highlander models and includes an ABS sensor for direct replacement service.

Key Features

• Fits 2008-2013 Toyota Highlander, rear right
• Wheel bearing and hub assembly for driveline and axle service
• ABS sensor included
• 5 wheel studs with a 4-bolt flange design
• Modified flange shape with 114.3 mm bolt circle diameter
• Wheel pilot diameter: 60.000 mm
• Brake pilot diameter: 62.000 mm
• Hub pilot diameter: 84.000 mm
• Flange diameter: 152.000 mm
• Flange offset: 72.000 mm

Detailed Description

MOOG 512420 is a rear right wheel bearing and hub assembly engineered for 2008-2013 Toyota Highlander applications. MOOG focuses on design updates that improve service life and make replacement easier, which is valuable when servicing a Toyota Highlander rear hub assembly or replacing a worn rear wheel bearing hub on the Highlander. This assembly includes the ABS sensor and uses a modified flange layout with the listed pilot and bolt-circle dimensions for proper fitment.

This part cross-references SKF BR930797 and Timken HA590287 for the same application.

Common Problems This Part Helps Address

• Rear wheel noise from a worn hub or bearing
• ABS warning light caused by a failing wheel speed sensor or hub assembly
• Wheel play or looseness at the rear right corner
• Uneven hub wear that affects braking and road feel
• Service issues when replacing a damaged rear wheel bearing assembly

Installation Notes and Tips

Verify rear right fitment before installation on your 2008-2013 Toyota Highlander. Confirm the flange, pilot diameters, and bolt circle match the original part before mounting. Clean the hub mounting surface, inspect related brake components, and torque fasteners to the vehicle manufacturer’s specifications.

Quality Assurance

MOOG is known for chassis and steering components with ongoing design improvements aimed at extending product life and simplifying replacement. Part number 512420 is built to support dependable rear hub service on the Toyota Highlander platform.
