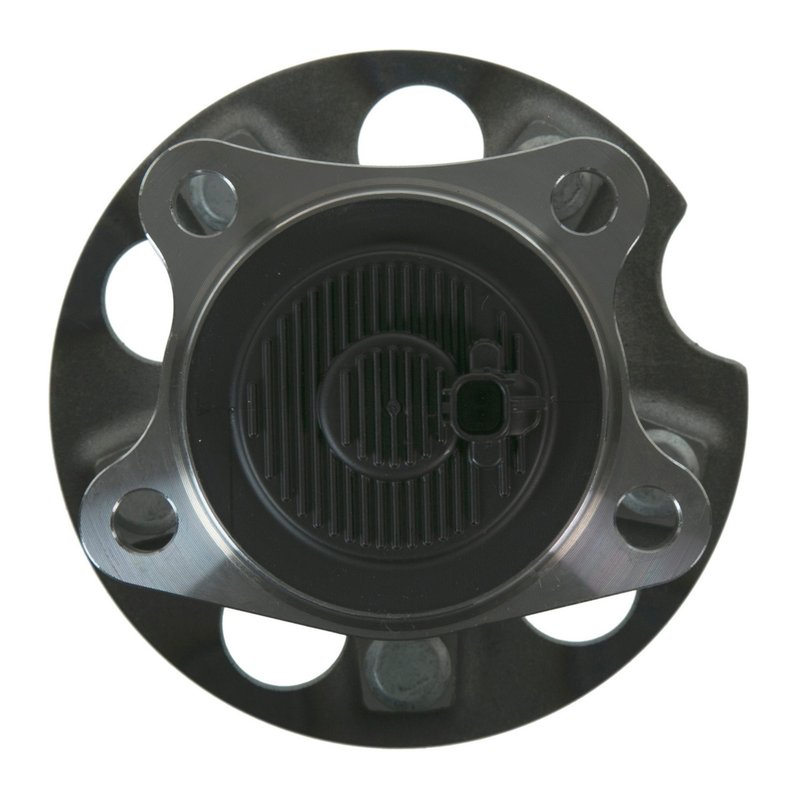

Moog 512422 Wheel Bearing and Hub Assembly - Rear Right

Rear Right Wheel Bearing Hub for Toyota Venza

Moog 512422 is a rear right wheel bearing and hub assembly for 2009-2016 Toyota Venza models. It combines hub and bearing service in one OE-style replacement and includes an integrated ABS sensor for direct fitment on the rear right side.

Key Features

• Fits 2009-2016 Toyota Venza, rear right
• Wheel bearing and hub assembly for driveline and axle service
• Anti-lock brake sensor included
• 5 wheel studs with 4 flange bolt holes
• Hub pilot diameter: 84.000 mm
• Wheel pilot diameter: 60.000 mm
• Brake pilot diameter: 62.000 mm
• Bolt circle diameter: 114.300 mm / 4.500 in
• Flange diameter: 152.000 mm with modified trapezoid flange shape
• Flange offset: 72.000 mm

Detailed Description

Moog 512422 is built for the rear right position on the Toyota Venza and is specified for 2009-2016 model years. The assembly is engineered around the hub, bearing, and ABS sensor interface needed for a direct rear-wheel service replacement. Moog’s chassis-focused design approach emphasizes product-life improvements and easier replacement, making this part a practical choice when servicing wheel-end noise, looseness, or ABS-related wheel speed signal issues on a Toyota Venza.

This part cross-references Raybestos Brakes 712422 for the same application.

What It Helps Fix

• Wheel bearing noise from the rear right corner
• Excessive wheel play or hub looseness
• ABS warning light concerns tied to the rear wheel speed sensor
• Uneven wheel-end rotation or rough hub operation
• Service replacement for a worn rear hub assembly on a Toyota Venza

Installation Notes and Tips

Verify rear right fitment before installation and confirm the bolt circle, pilot diameters, and flange dimensions match the vehicle. Inspect the mating surfaces, axle area, and ABS connector condition during service. For best results, follow factory torque specifications and check ABS operation after installation.

Quality Assurance

Moog is known in the chassis industry for ongoing design updates that improve service life and simplify replacement. Part number 512422 reflects that OE-style service focus for rear hub replacement on the Toyota Venza.
