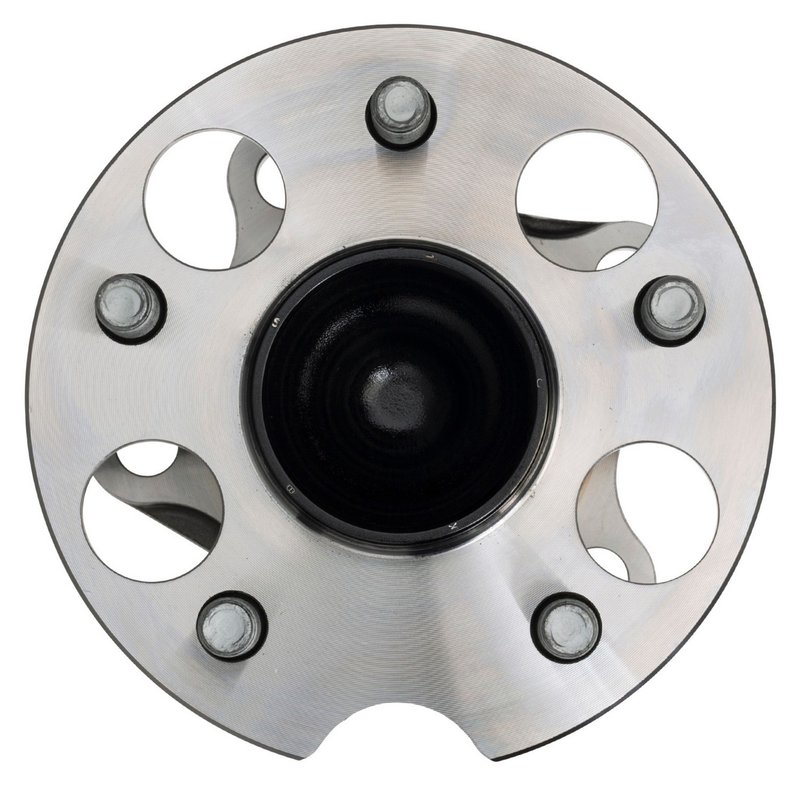

Moog 512456 Wheel Bearing and Hub Assembly - Rear
| Brand | Moog 512456 |
|---|---|
| Position | Rear |
| Anti Lock Brake Sensor Included | Yes |
| Bolt Circle Diameter | 114.300 |
| Brake Pilot Diameter | 62.000 |
| Flange Bolt Hole Quantity | 4 |
| Flange Diameter | 182.000 |
| Flange Offset | 72.000 |
| Hub Pilot Diameter | 84.000 |
| Wheel Pilot Diameter | 60.000 |
| Wheel Stud Quantity | 5 |
| Fits | Toyota · 9 vehicles |
Problem Solver design. Enhancements extend product life and simplify installation and replacement.
Wheel bearing and hub assembly. Combines the bearing and hub in one serviceable unit.
ABS sensor included. Ready for vehicles that use an anti-lock brake sensor.
Cross-references Beck/Arnley 051-6332, Timken HA590409 and 42450-08030 for the same application. See all 4.
Rear Wheel Bearing Hub for Toyota Sienna
Restore smooth rear wheel support and ABS signal performance with this MOOG wheel bearing and hub assembly. MOOG 512456 is built for rear applications on the Toyota Sienna and includes an integrated anti-lock brake sensor for direct replacement service.
Key Features
- Rear wheel bearing and hub assembly for Toyota Sienna applications
- Integrated anti-lock brake sensor included
- 5 wheel studs with 114.3 mm bolt circle diameter
- 4 flange bolt holes for secure mounting
- 84.0 mm hub pilot diameter, 60.0 mm wheel pilot diameter, and 62.0 mm brake pilot diameter
- 72.0 mm flange offset and 182.0 mm flange diameter
- MOOG part number 512456
Detailed Description
MOOG 512456 is a rear wheel bearing and hub assembly engineered for 2011-2018 Toyota Sienna and 2020 Toyota Sienna rear positions. It is built around the hub, bearing, and ABS sensor interface needed for a direct rear-wheel service replacement, with dimensions that match the vehicle’s mounting and wheel interface requirements. MOOG focuses on design updates that improve service life and make replacement easier, which is especially useful when replacing a worn rear hub on a Toyota Sienna.
This part cross-references Timken HA590409 and Beck/Arnley 051-6332 for the same application.
What It Helps Fix
- Rear wheel noise caused by a worn hub bearing
- ABS warning light concerns related to a failed wheel speed sensor
- Wheel looseness or play at the rear hub
- Uneven rear wheel rotation from bearing wear
- Mounting issues tied to damaged hub or flange surfaces
Installation Notes and Tips
Verify rear fitment by year before ordering: Fits 2011-2018 Toyota Sienna, rear, and Fits 2020 Toyota Sienna, rear. Confirm bolt circle, pilot diameters, and ABS sensor connection before installation. Clean the mounting surface, inspect surrounding brake components, and torque fasteners to the vehicle manufacturer’s specification during reassembly.
Quality Assurance
MOOG is known for ongoing chassis component design improvements that focus on longer service life and simpler installation and replacement. Part number 512456 is built to meet the dimensional and sensor requirements listed for the confirmed Toyota Sienna rear applications.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2020 | Toyota | Sienna | FWD | Rear | — |
| 2018 | Toyota | Sienna | FWD | Rear | — |
| 2017 | Toyota | Sienna | FWD | Rear | — |
| 2016 | Toyota | Sienna | FWD | Rear | — |
| 2015 | Toyota | Sienna | FWD | Rear | — |
| 2014 | Toyota | Sienna | FWD | Rear | — |
| 2013 | Toyota | Sienna | FWD | Rear | — |
| 2012 | Toyota | Sienna | FWD | Rear | — |
| 2011 | Toyota | Sienna | FWD | Rear | — |
