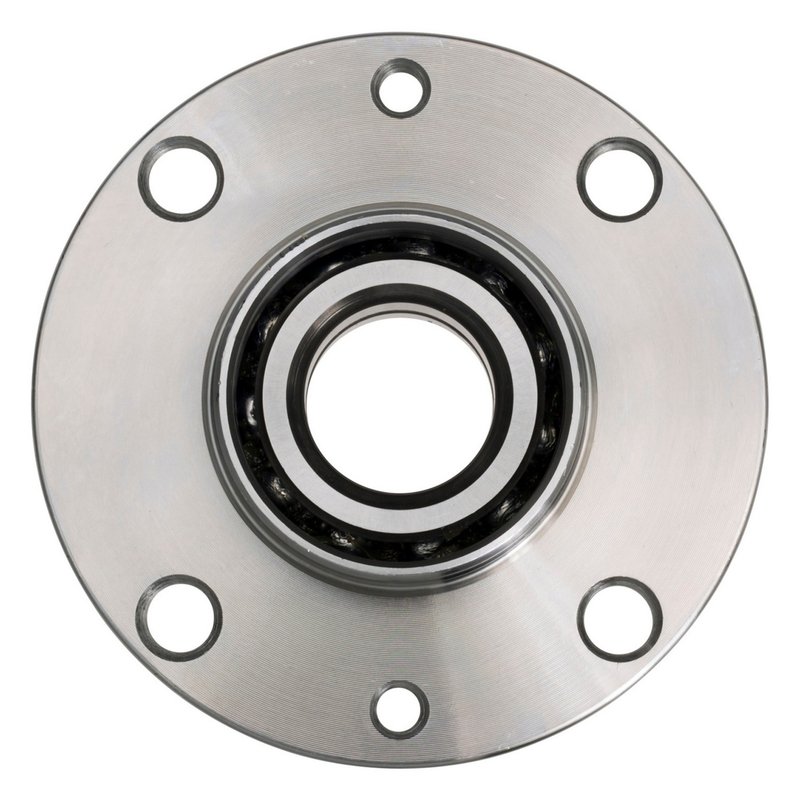

Moog 512480 Wheel Bearing and Hub Assembly - Rear

Moog Wheel Bearing and Hub Assembly for Fiat 500

The Moog 512480 wheel bearing and hub assembly is engineered to meet the specific requirements of the Fiat 500. Designed with precision, this component ensures reliable wheel alignment and smooth rotation, contributing to vehicle safety and performance.

• Wheel pilot diameter: 57.900 mm
• Brake pilot diameter: 59.000 mm
• Wheel stud quantity: 4
• Hub pilot diameter: 68.600 mm
• Anti-lock brake sensor included
• Flange offset: 43.000 mm
• Flange diameter: 116.600 mm
• Bolt circle diameter: 98.000 mm

Technical Details and Specifications

This Moog wheel bearing and hub assembly (part number 512480) is designed specifically for the Fiat 500, ensuring a precise fit and optimal performance. The assembly includes an anti-lock brake sensor, which integrates seamlessly with the vehicle’s ABS system for enhanced safety. The 4-wheel stud configuration and exact flange dimensions provide secure mounting and compatibility with the Fiat 500’s wheel setup. The wheel pilot diameter of 57.900 mm and hub pilot diameter of 68.600 mm are engineered to maintain proper wheel alignment and reduce vibration during operation.

Applications and Problem Resolution

This wheel bearing and hub assembly is used to replace worn or damaged components in the driveline system of the Fiat 500. It addresses several common issues, including:

• Excessive wheel play or looseness
• Noise or grinding sounds from the wheel area
• ABS sensor malfunctions or warning lights
• Uneven tire wear due to misalignment
• Vibration or wobbling during driving

Installation Notes and Tips

When installing the Moog 512480 wheel bearing and hub assembly on a Fiat 500, ensure the following:

• Verify the part number matches the vehicle’s specifications
• Inspect the mounting surface for cleanliness and damage
• Torque wheel studs to manufacturer specifications
• Confirm ABS sensor connection is secure and functioning
• Check wheel alignment after installation

Quality Assurance and Warranty

Moog parts are manufactured to meet or exceed OEM standards, providing reliable performance and durability. The 512480 wheel bearing and hub assembly includes an integrated ABS sensor to maintain factory safety features. Moog offers a limited warranty on this part, covering defects in materials and workmanship under normal use conditions.
