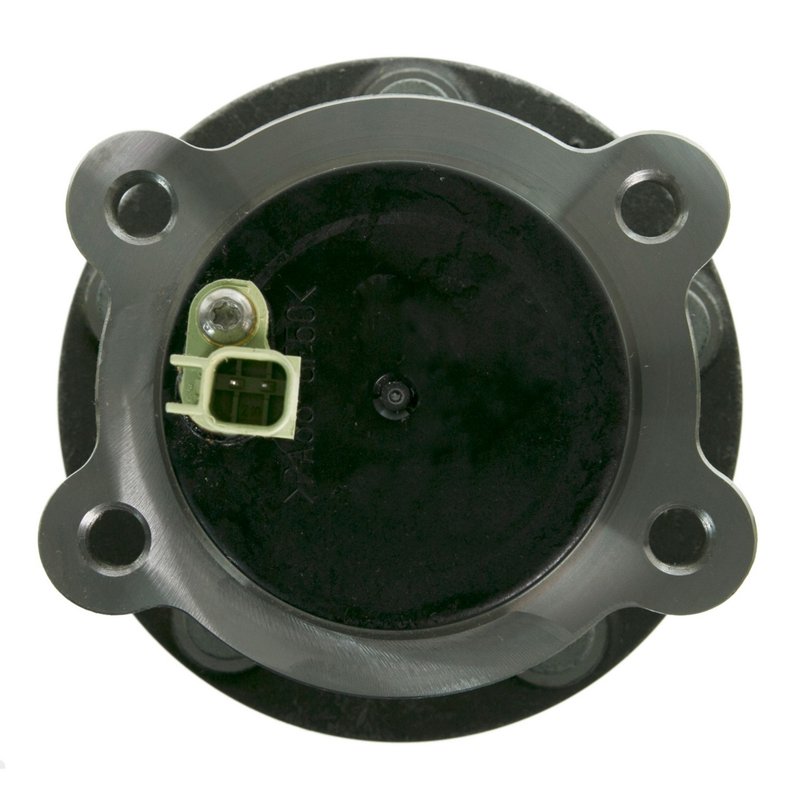

Moog 512496 Wheel Bearing and Hub Assembly - Rear

Overview of Moog 512496 Wheel Bearing and Hub Assembly

The Moog 512496 wheel bearing and hub assembly is engineered for reliable performance in Ford and Lincoln vehicles, including the C-Max, Escape, and MKC models. Designed to meet precise specifications, this assembly ensures proper fit and function for your driveline system.

• Flange bolt hole quantity: 4
• Wheel pilot diameter: 63.400 mm
• Brake pilot diameter: 63.500 mm
• Wheel stud quantity: 5
• Hub pilot diameter: 81.400 mm
• Flange shape: Rectangle
• Anti-lock brake sensor included
• Flange offset: 72.800 mm
• Flange diameter: 136.400 mm
• Bolt circle diameter: 108.000 mm

Technical Details and Specifications

This Moog wheel bearing and hub assembly (part number 512496) features a 5-stud wheel configuration and a rectangular flange shape, designed to match the exact bolt circle diameter of 108.000 mm. The flange offset of 72.800 mm and flange diameter of 136.400 mm provide proper alignment and secure mounting. The assembly includes an anti-lock brake sensor, ensuring compatibility with ABS systems on Ford C-Max, Escape, and Lincoln MKC vehicles. The wheel pilot diameter of 63.400 mm and brake pilot diameter of 63.500 mm support precise wheel and brake rotor positioning, while the hub pilot diameter of 81.400 mm ensures a stable hub fit.

Compatible Vehicles and Applications

This wheel bearing and hub assembly is compatible with the following vehicles:

• Ford C-Max
• Ford Escape
• Lincoln MKC

It is designed to replace worn or damaged wheel bearing and hub assemblies in these models, restoring proper wheel rotation and ABS sensor functionality.

Common Issues Addressed by Moog 512496

• Wheel bearing noise or roughness during rotation
• ABS sensor malfunction or warning lights
• Excessive wheel play or looseness
• Uneven brake rotor wear due to improper hub alignment
• Vibration or wobbling at certain speeds

Installation Notes and Tips

When installing the Moog 512496 wheel bearing and hub assembly, ensure the flange bolt holes align correctly with the vehicle’s mounting points. Verify the wheel pilot and brake pilot diameters match the rotor and wheel hub for proper fit. The included anti-lock brake sensor should be connected carefully to maintain ABS functionality. Use a calibrated torque wrench to tighten the 4 flange bolts and 5 wheel studs to manufacturer specifications. It is recommended to inspect the axle and surrounding components for wear during installation.

Quality Assurance and Warranty

Moog wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards. The 512496 part undergoes rigorous testing to ensure durability and performance under normal driving conditions. This product includes a limited warranty against defects in materials and workmanship, providing confidence in its reliability for Ford C-Max, Escape, and Lincoln MKC applications.
